Neon Flex

360 Bend D25

360 Bend

Performance Specifications

Light Source
LED
Voltage
24
Wattage/M
19.2
CRI
90
MacAdams Step
3
Beam Angle
360
LED Lifetime
L70 B10 50,000Hrs
IP Rating
65
IK Rating
N/A
Dimming
N/A

Physical Specifications

LEDs/M
N/A
Width (mm)
ø25
Height (mm)
ø25
Length (mm)
5050
Pitch (mm)
N/A
Cutting Intervals (mm)
Cut Free
Max Single Run (mm)
5000
Max Flex Width (mm)
N/A
Material
N/A
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Colour Temp
Lumens / M
Efficacy
NF-360-D25-24V-19.2W-27K-IP65-1000
360 NeonFlex D25 19.2W 2700K IP65
2700
1382
72
NF-360-D25-24V-19.2W-30K-IP65-1000
360 NeonFlex D25 19.2W 3000K IP65
3000
1430
74
NF-360-D25-24V-19.2W-40K-IP65-1000
360 NeonFlex D25 19.2W 4000K IP65
4000
1489
76

360 Bend D25 Components

NF-360-D25-SE,NF-360-D25-EC,NF-360-D25-NSFC

Code
Product Name
Material
Finish
360 NeonFlex D25 Solder-Free Connector with 1m Cable
NF-360-D25-NSFC
360 NeonFlex D25 Solder-Free Connector with 1m Cable
-

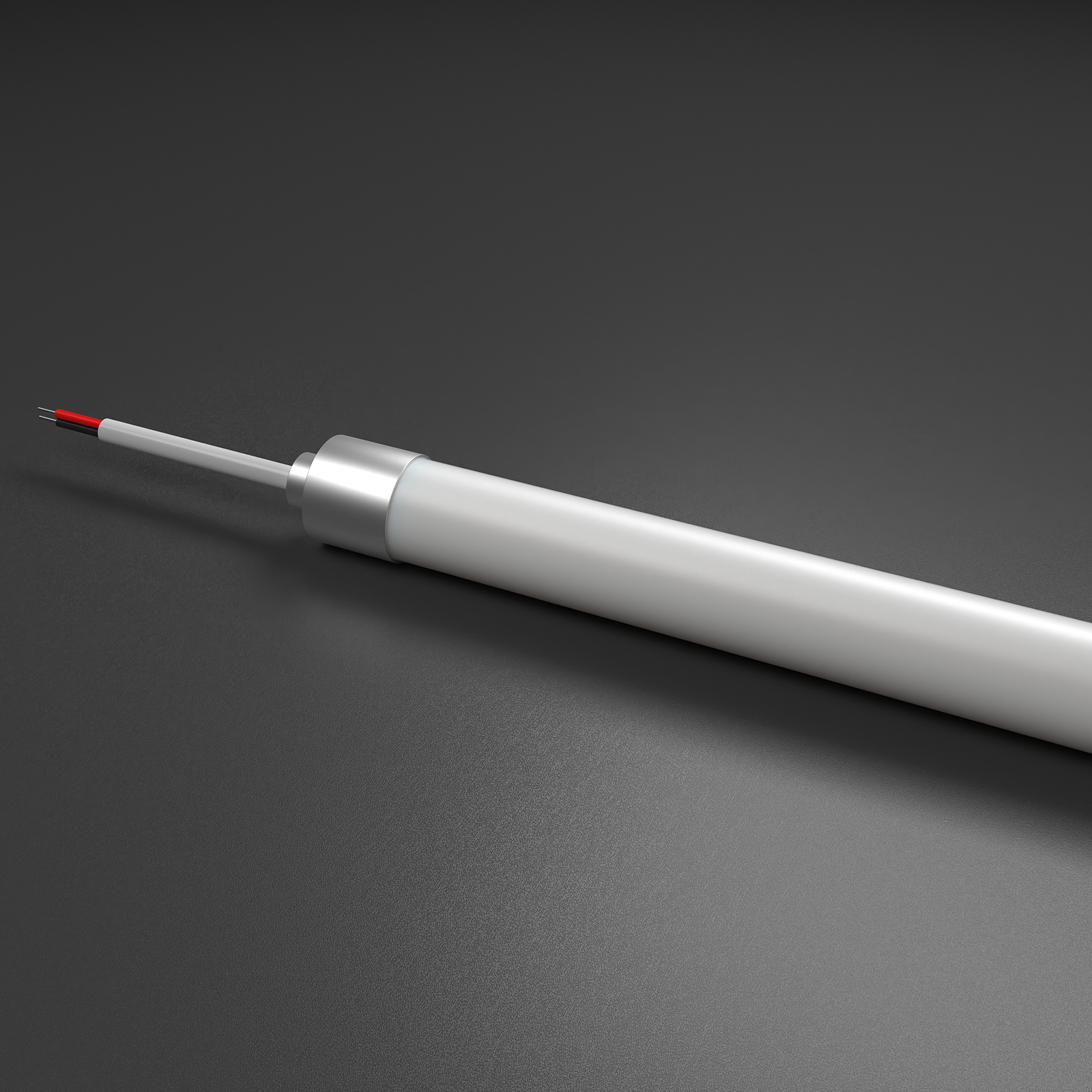

360 NeonFlex D25 Straight Entry End Cap Alu
NF-360-D25-SE
360 NeonFlex D25 Straight Entry End Cap Alu
-

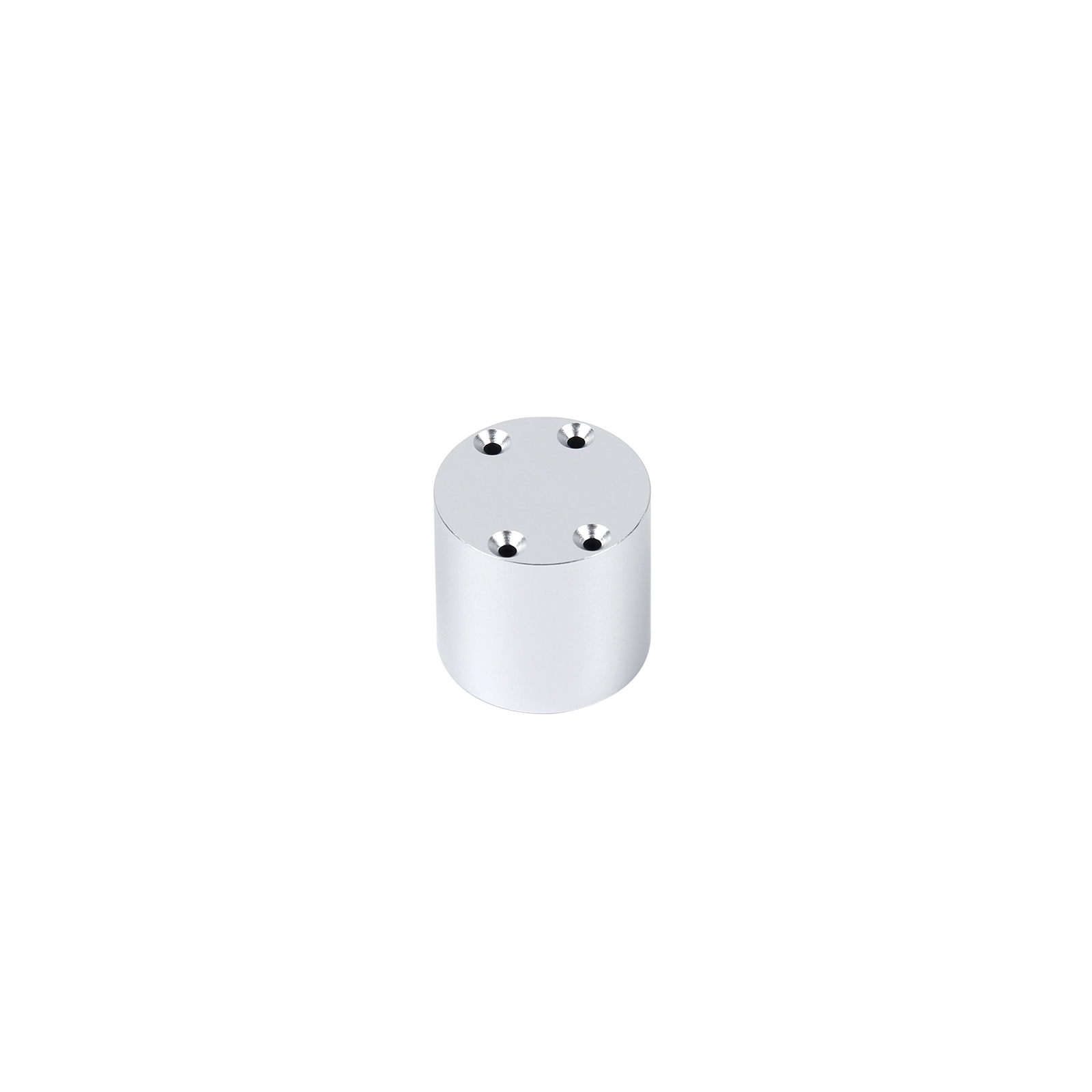

360 NeonFlex D25 Tail End Cap Alu
NF-360-D25-EC
360 NeonFlex D25 Tail End Cap Alu
-

360 Bend D25 Accessories

NF-360-D25-NSFC,NF-360-D25-TC,NF-360-D25-CC,NF-360-D25-SMC,NF-360-D25-PMC,NF-360-D25-BP,NF-360-D25-BEP,NF-360-D25-1MB,NF-360-D25-1MT,NF-360-D25-PB2,NF-360-D25-PB3,NF-360-D25-MESH-R,NF-360-D25-MESH-Y,NF-360-D25-MESH-B,NF-360-D25-DENW-W2,NF-360-D25-PRW-0612-SMW,NF-360-D25-PRW-0306-SMW,NF-360-D25-WM-B,NF-360-D25-WM-W,NF-360-D25-WM-S,NF-360-D25-SMPC-002,NF-360-D25-SMPC-003,NF-360-D25-PRPC-002,NF-360-D25-PRPC-004,NF-360-D25-SMPC-1M,NF-360-D25-PRPC-1M,NF-360-D25-PRB-1.5M,NF-360-D25-PTB-1.5M,NF-360-D25-Q30B-2M,NF-360-D25-Q30W-2M,NF-360-D25-Q30S-2M,NF-360-D25-PTS,NF-360-D25-PTB,NF-360-D25-PTW

Code
Product Name
Material
Finish

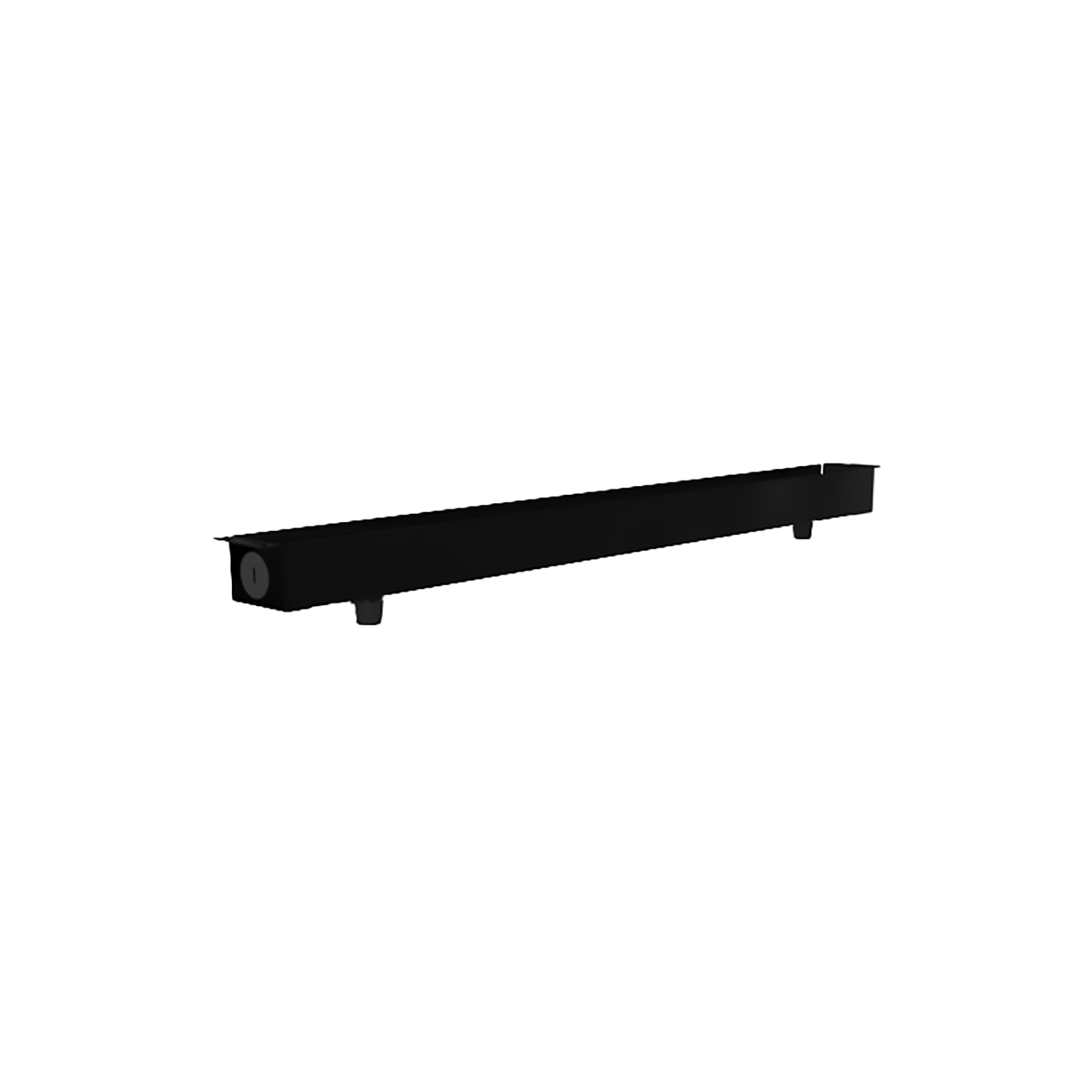

NF-360-D25-PB2
360 NeonFlex D25 2 Hole Pendant Box
-

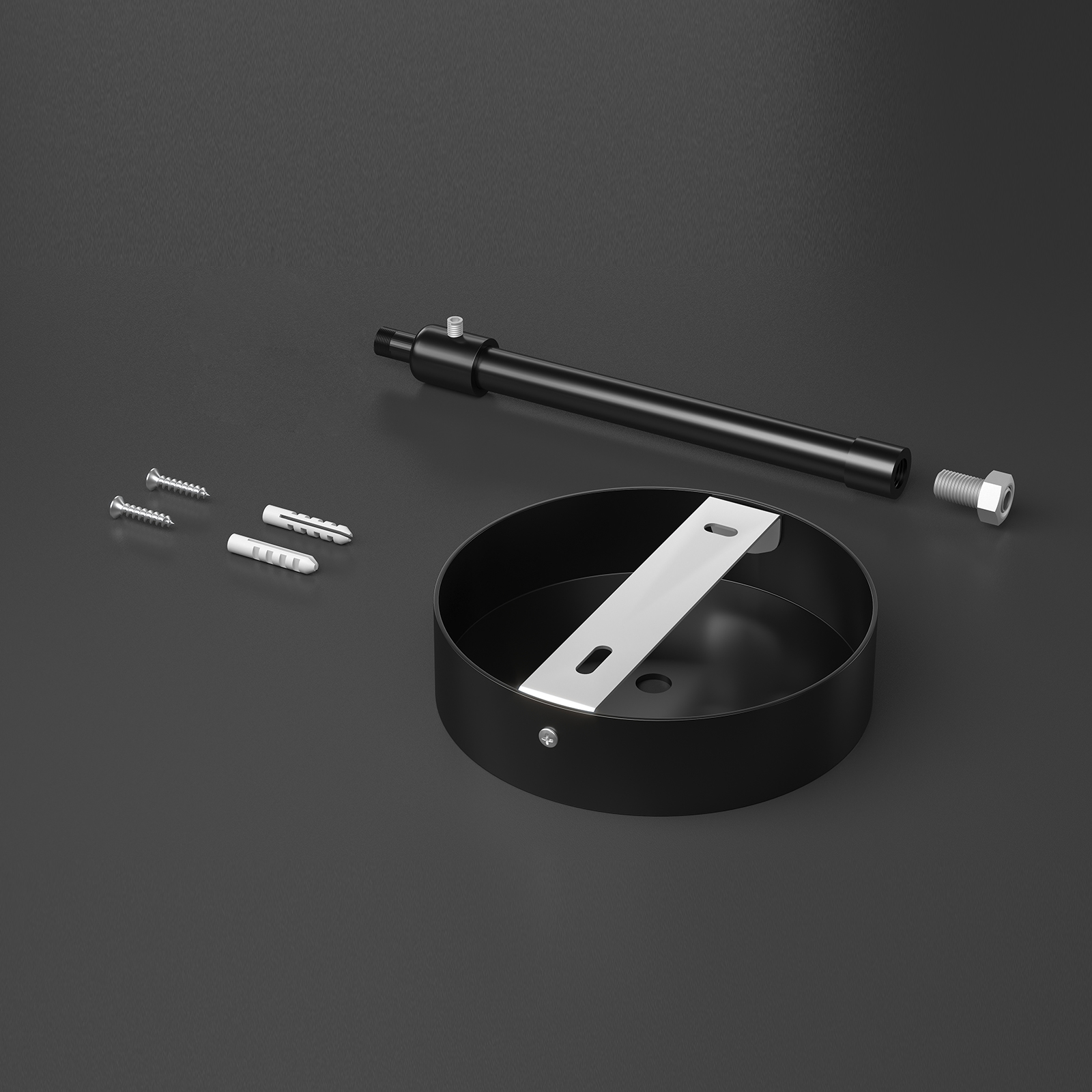

NF-360-D25-BEP
360 NeonFlex D25 30-60cm Elastic Pendant Pole Black
-
NF-360-D25-PRW-0306-SMW
360 NeonFlex D25 30-60cm Elastic Pendant Pole White
-
NF-360-D25-PB3
360 NeonFlex D25 3 Hole Pendant Box
-
NF-360-D25-BP
360 NeonFlex D25 60-120cm Elastic Pendant Pole Black
-
NF-360-D25-PRW-0612-SMW
360 NeonFlex D25 60-120cm Elastic Pendant Pole White
-

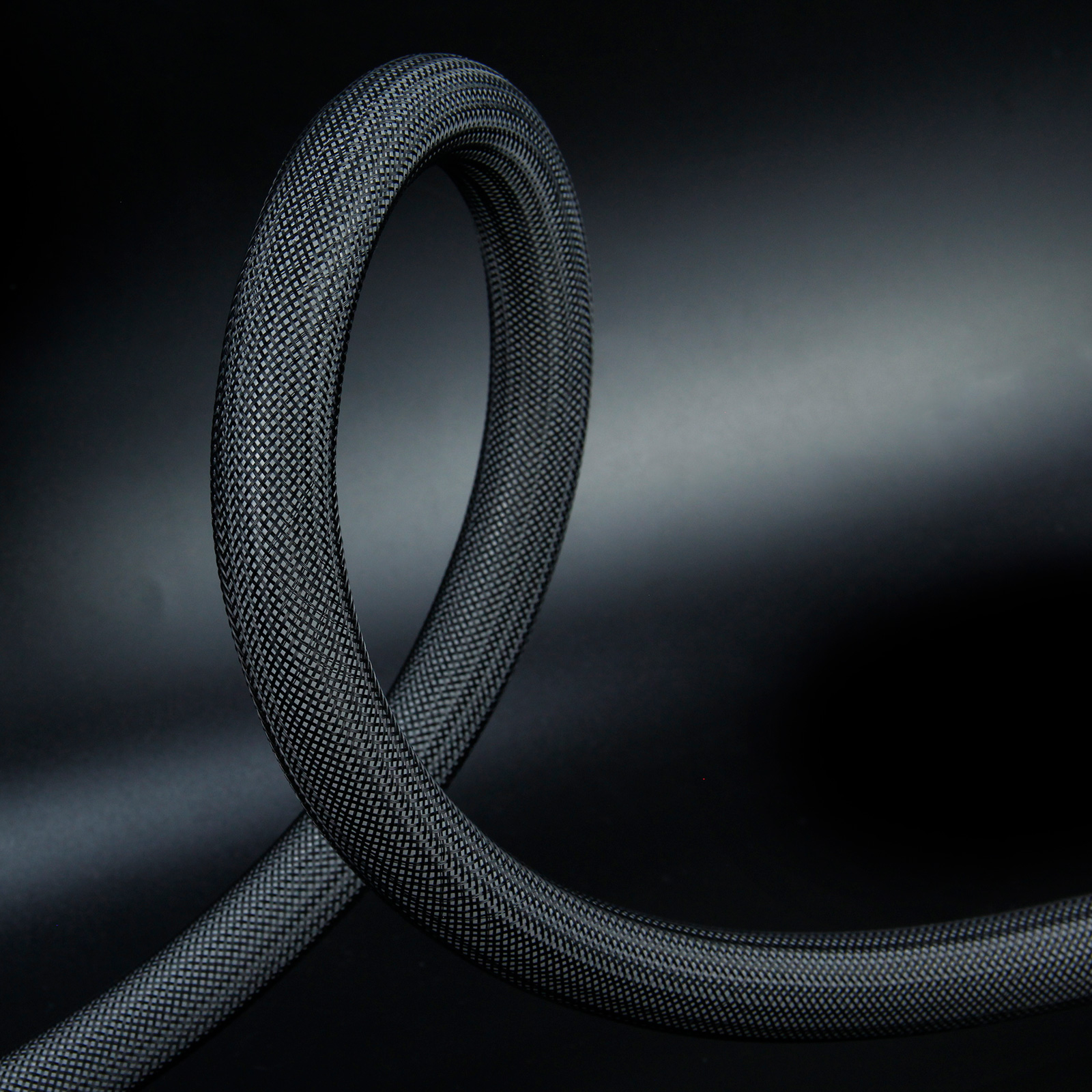

NF-360-D25-MESH-B
360 NeonFlex D25 Black Mesh
-

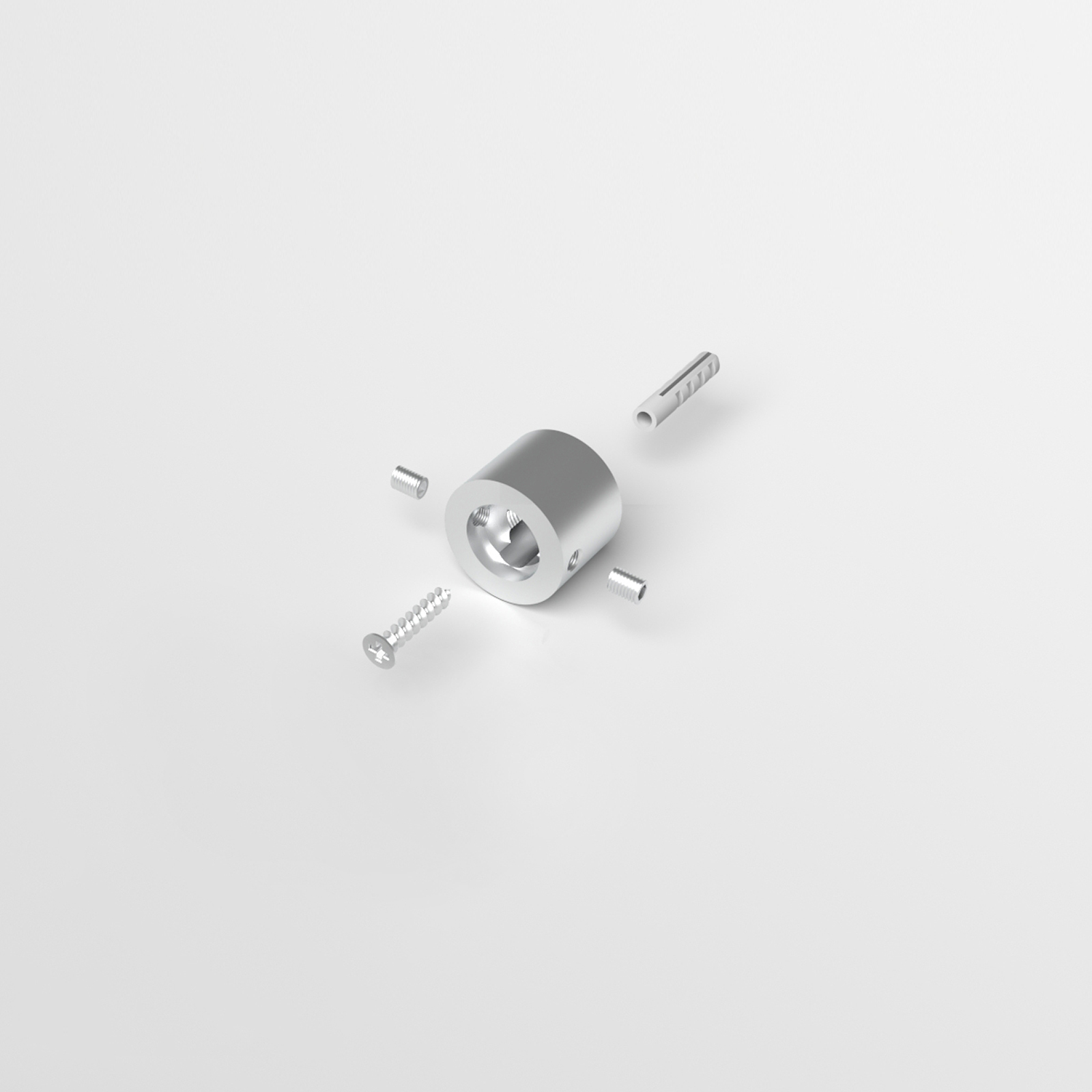

NF-360-D25-CC
360 NeonFlex D25 Ceiling Connector Fixed Bolt Alu
-
NF-360-D25-SMC
360 NeonFlex D25 Ceiling Mount Clip
-
NF-360-D25-SMPC-003
360 NeonFlex D25 Ceiling Mount Clip 2pcs Transparent
-

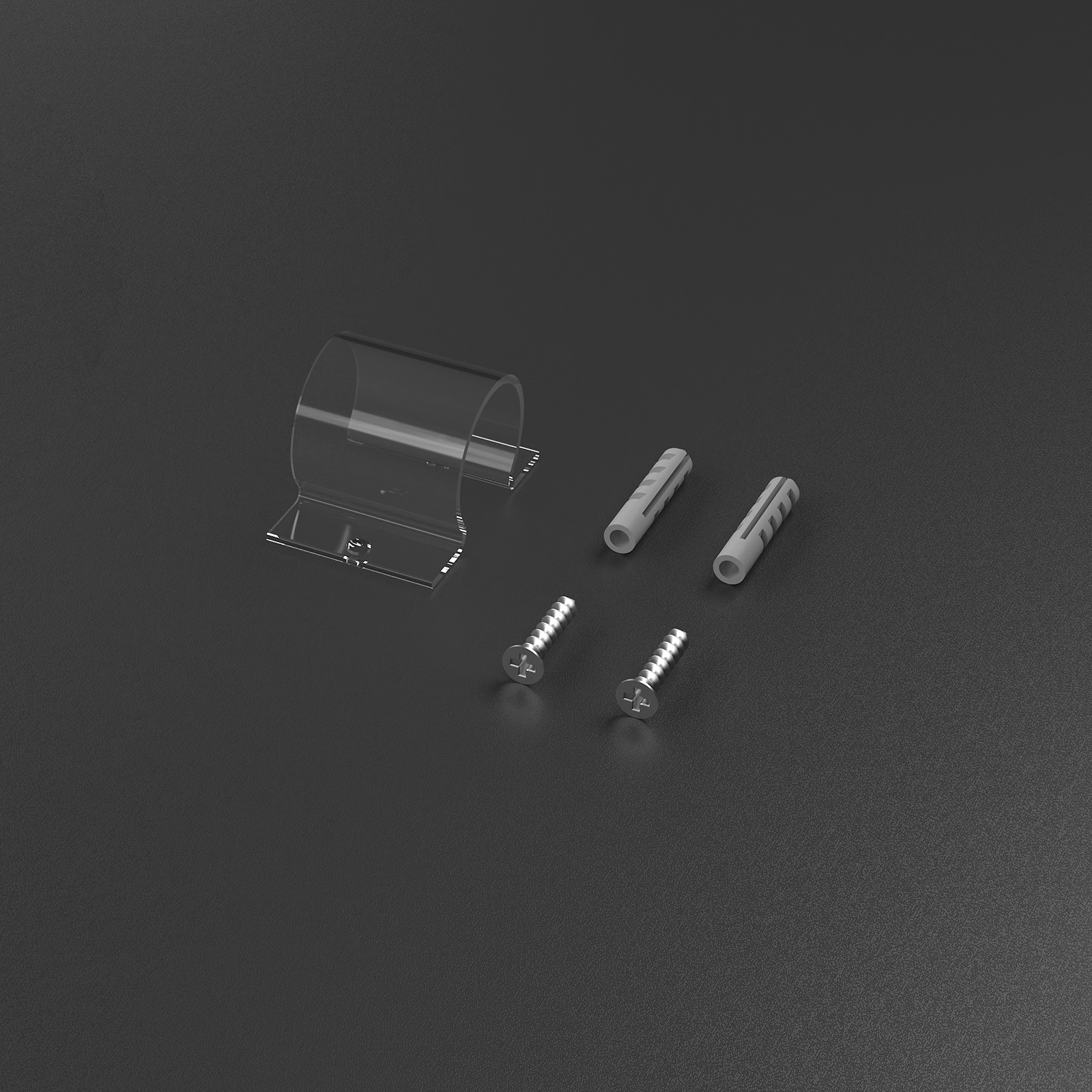

NF-360-D25-SMPC-002
360 NeonFlex D25 Ceiling Mount R Clip 2pcs Transparent
-
NF-360-D25-1MB
360 NeonFlex D25 Ceiling Mount U Bracket
-

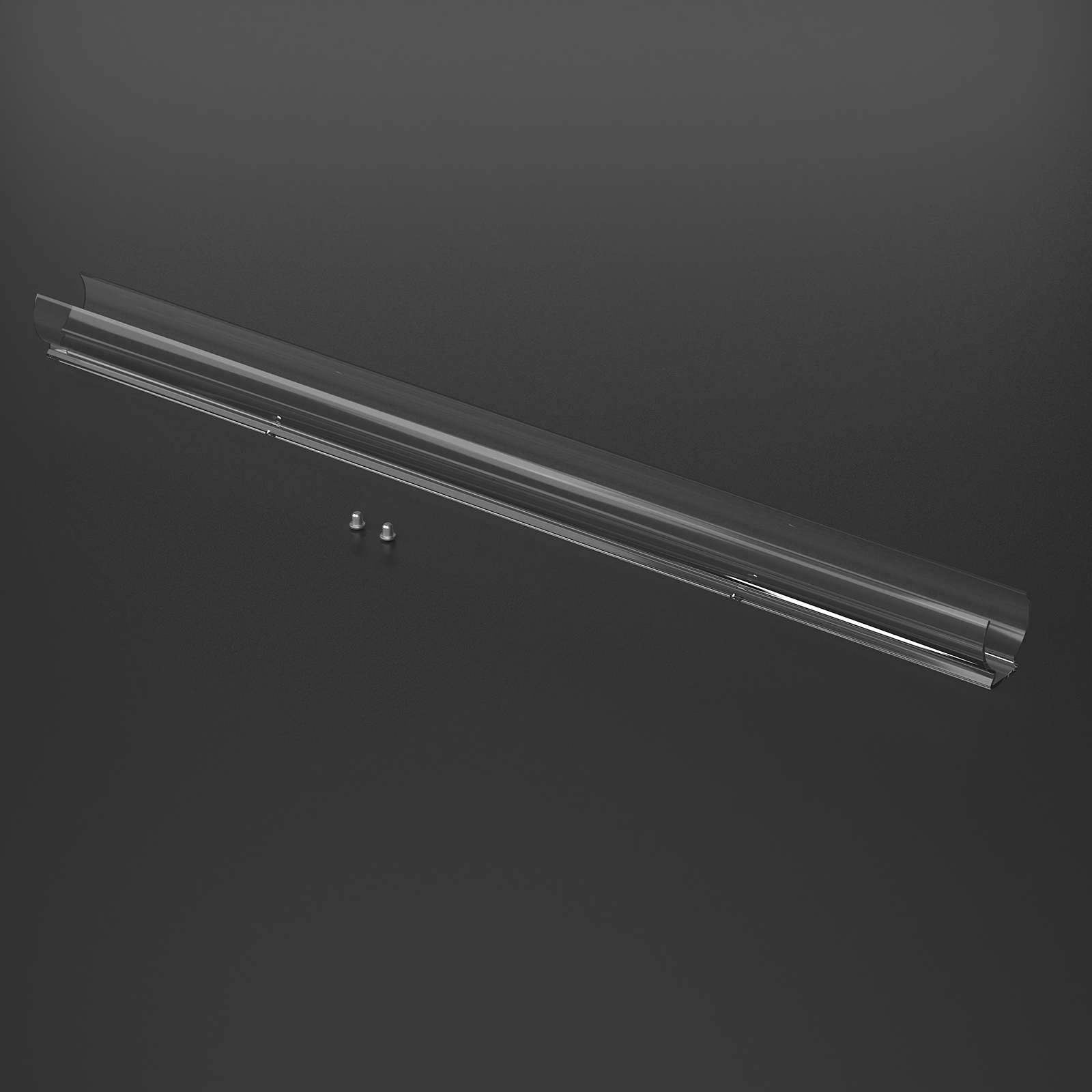

NF-360-D25-SMPC-1M
360 NeonFlex D25 Ceiling Mount U Bracket 1m Transparent
-

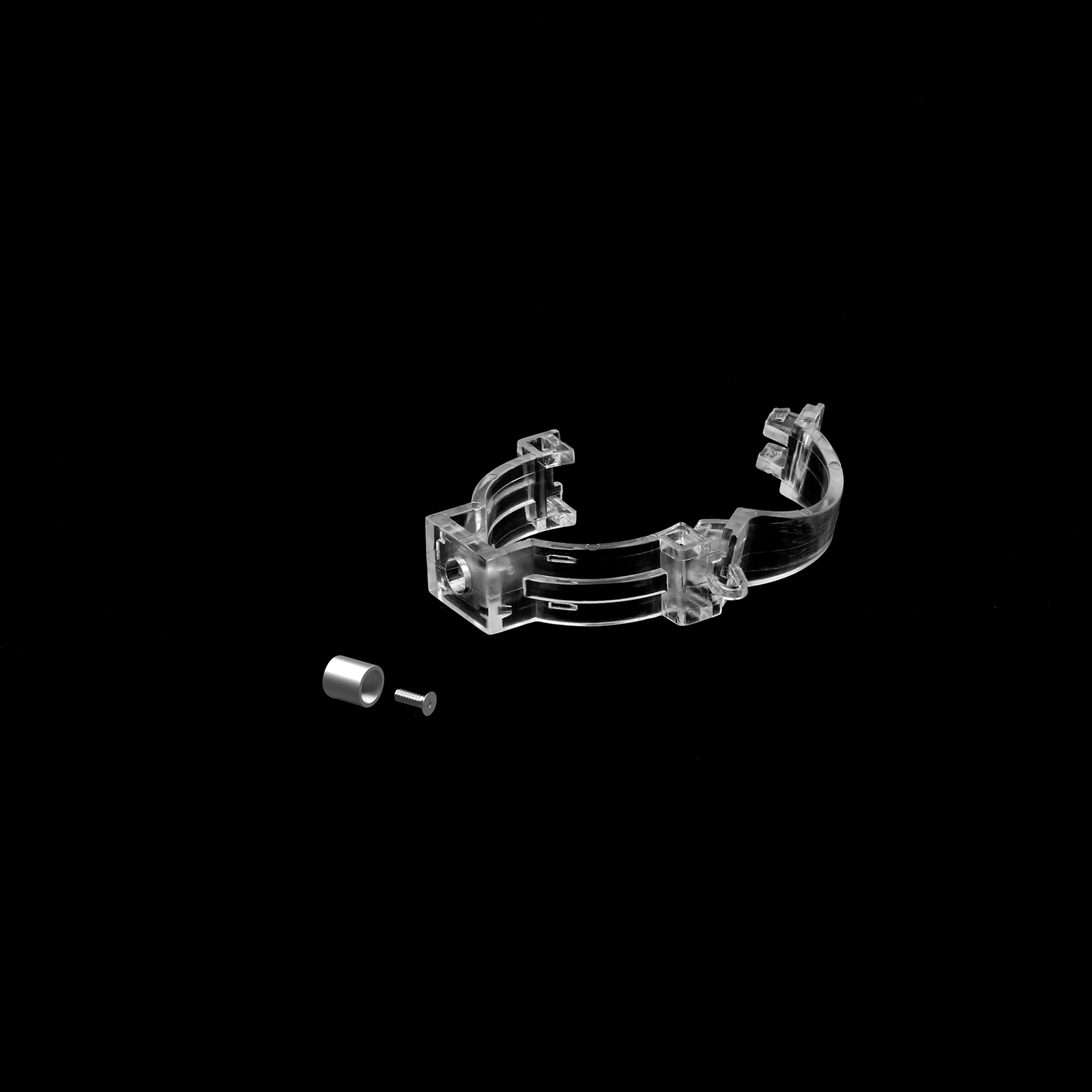

NF-360-D25-PRPC-004
360 NeonFlex D25 Pendant Poles Clip 2pcs/set Transparent
-

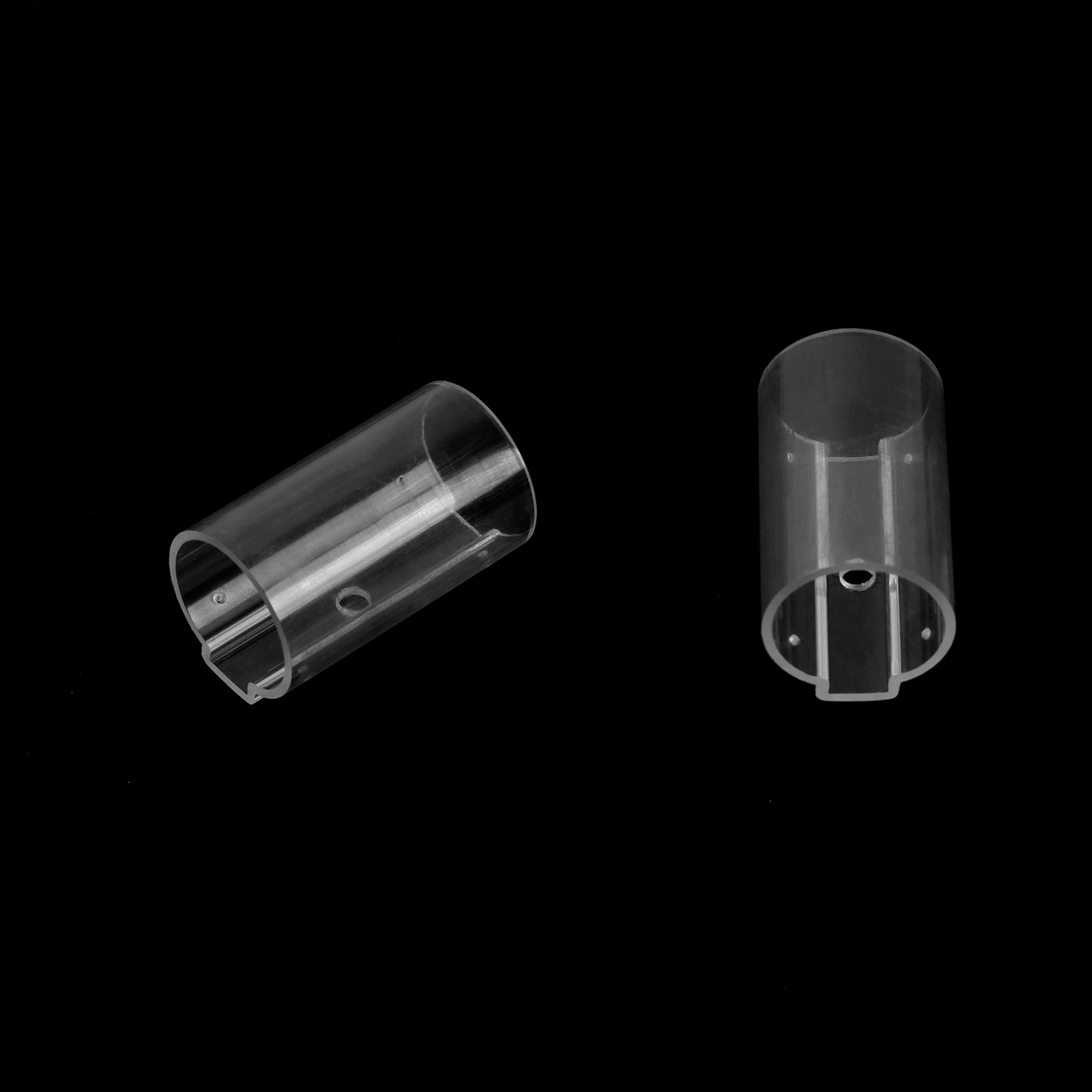

NF-360-D25-PRPC-002
360 NeonFlex D25 Pendant Poles Q Tube 2pcs Transparent
-

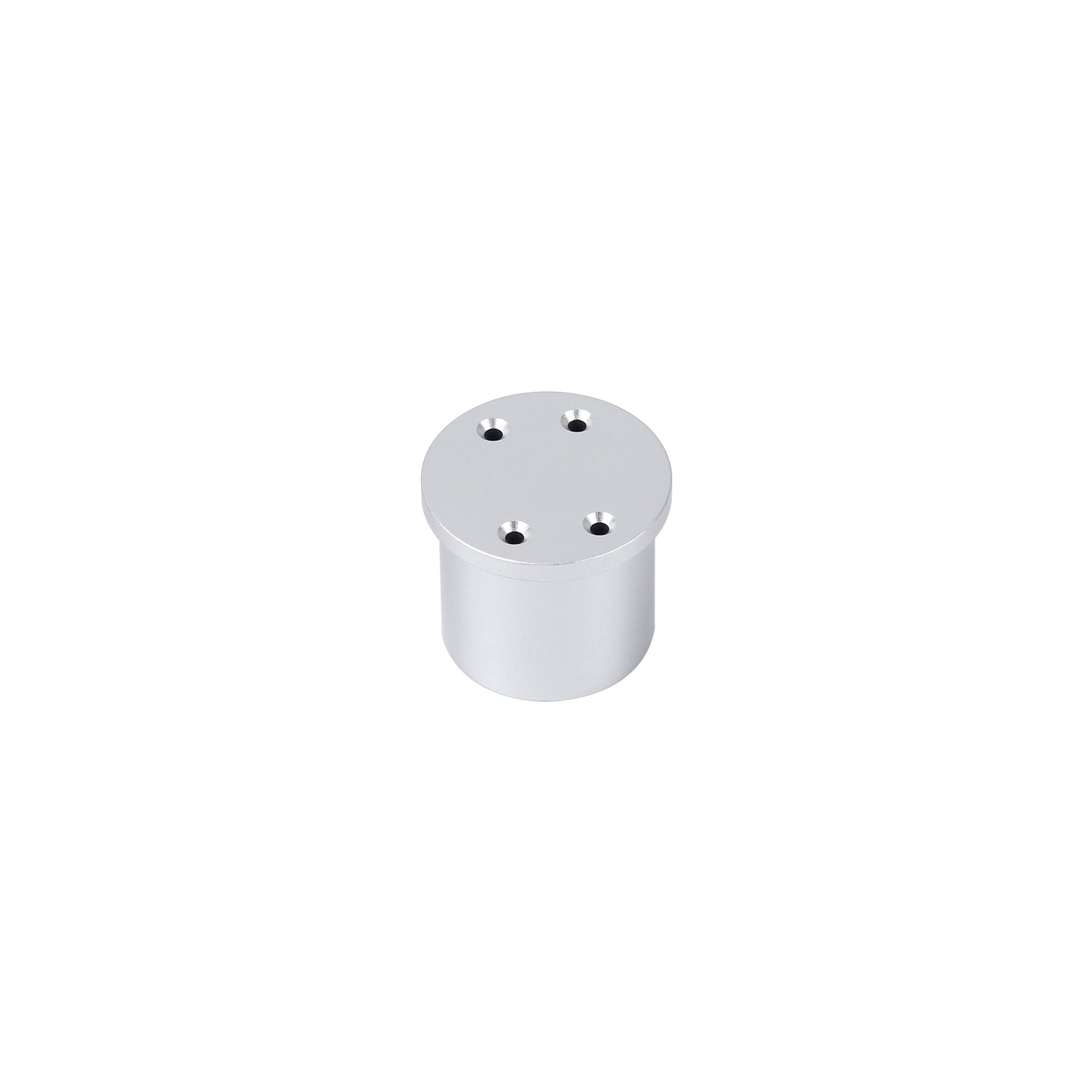

NF-360-D25-DENW-W2
360 NeonFlex D25 Pendant Tail End Cap Alu
-
NF-360-D25-1MT
360 NeonFlex D25 Pendant U Bracket
-
NF-360-D25-PRPC-1M
360 NeonFlex D25 Pendant U Bracket 1m Transparent + 2pcs Wires Excl Canopy
-
NF-360-D25-PMC
360 NeonFlex D25 Pendant Wire Clip
-
NF-360-D25-PTB
360 NeonFlex D25 Profile Connector Black
-
NF-360-D25-PTS
360 NeonFlex D25 Profile Connector Silver
-
NF-360-D25-PTW
360 NeonFlex D25 Profile Connector White
-
NF-360-D25-PTB-1.5M
360 NeonFlex D25 Profile for Pendant Pole Suspension Black
-

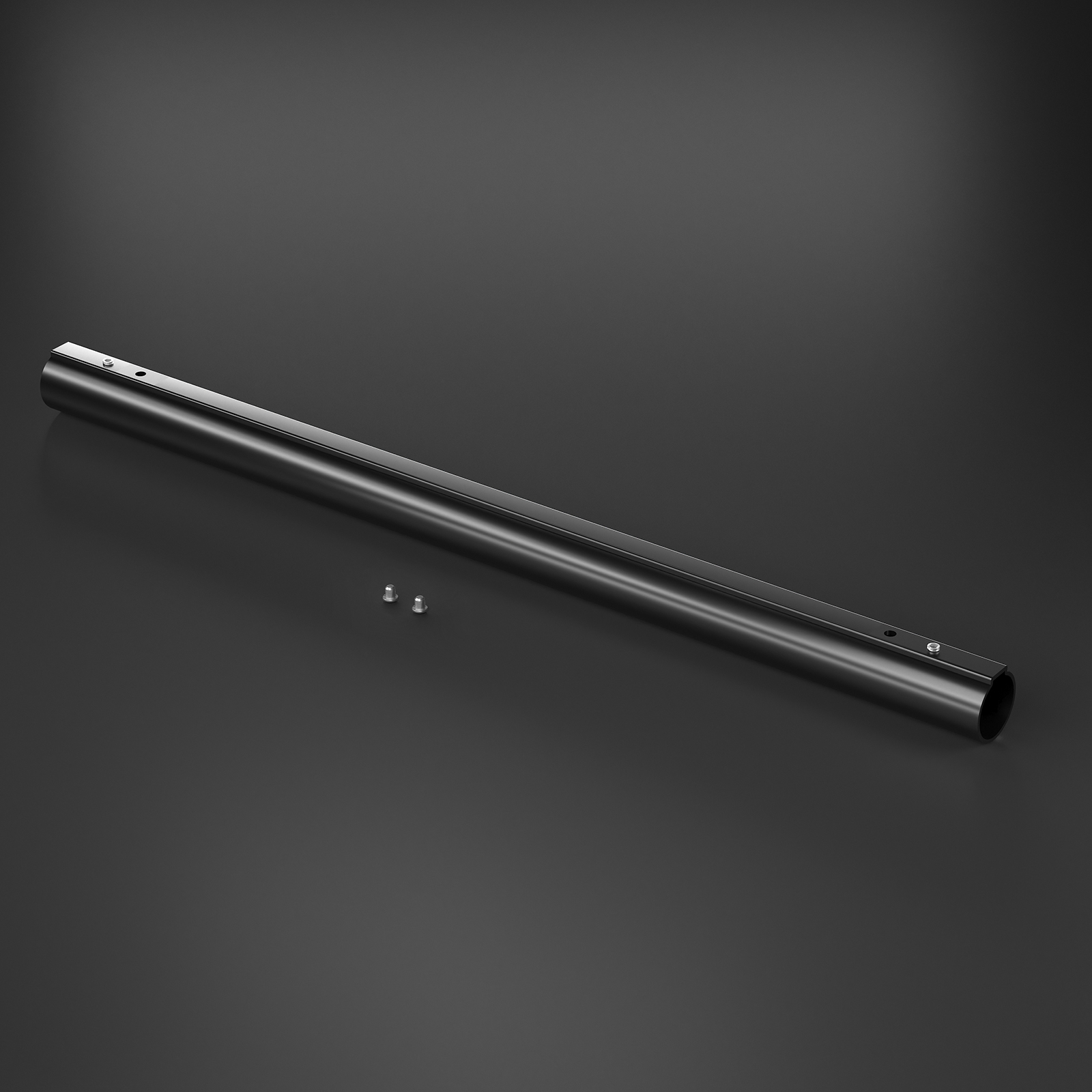

NF-360-D25-Q30B-2M
360 NeonFlex D25 Profile for Pendant Wire & Pole Suspension 2m Black
-

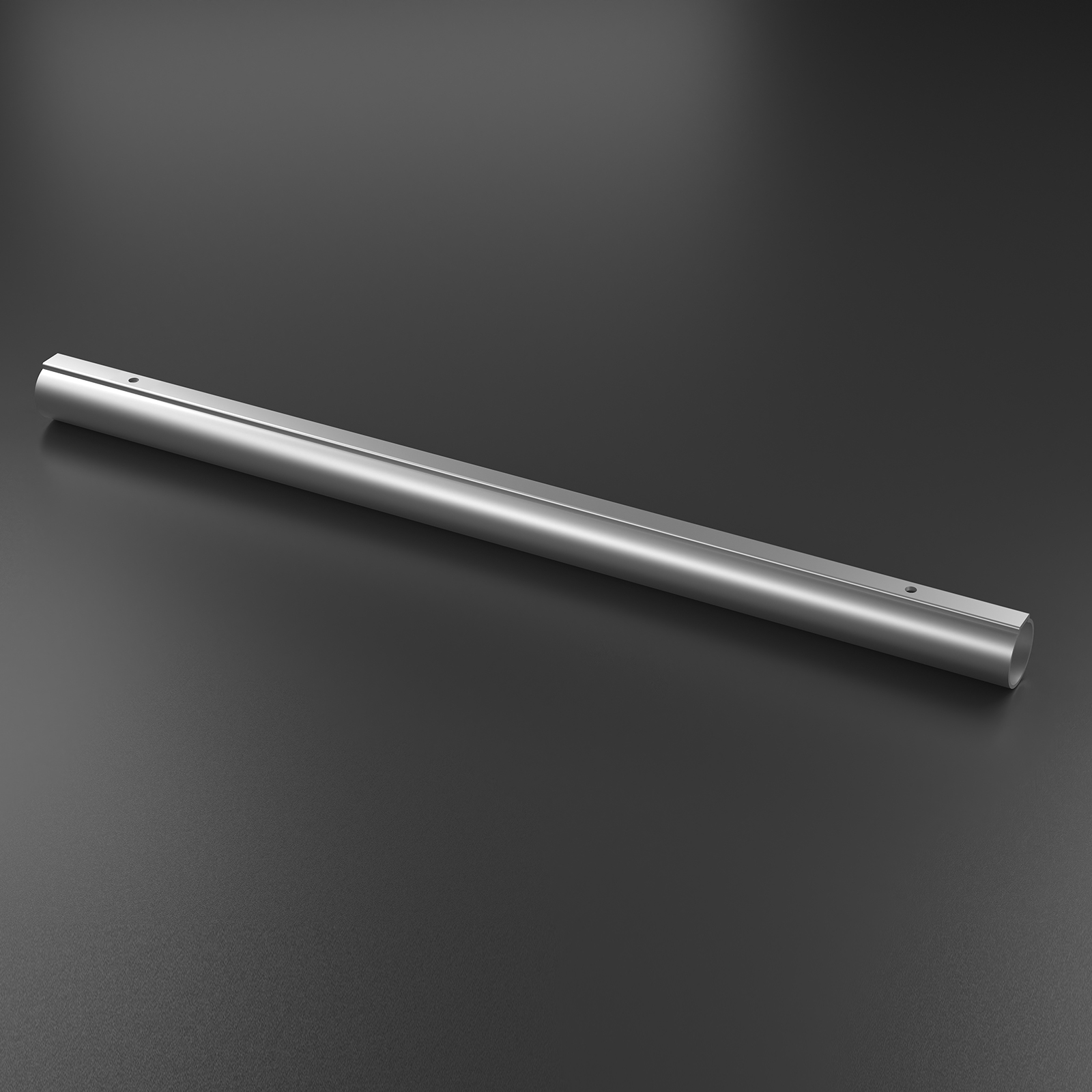

NF-360-D25-Q30S-2M
360 NeonFlex D25 Profile for Pendant Wire & Pole Suspension 2m Silver
-
NF-360-D25-Q30W-2M
360 NeonFlex D25 Profile for Pendant Wire & Pole Suspension 2m White
-
NF-360-D25-PRB-1.5M
360 NeonFlex D25 Profile for Pendant Wire Suspension Black
-
NF-360-D25-MESH-R
360 NeonFlex D25 Red Mesh
-
NF-360-D25-NSFC
360 NeonFlex D25 Solder-Free Connector with 1m Cable
-

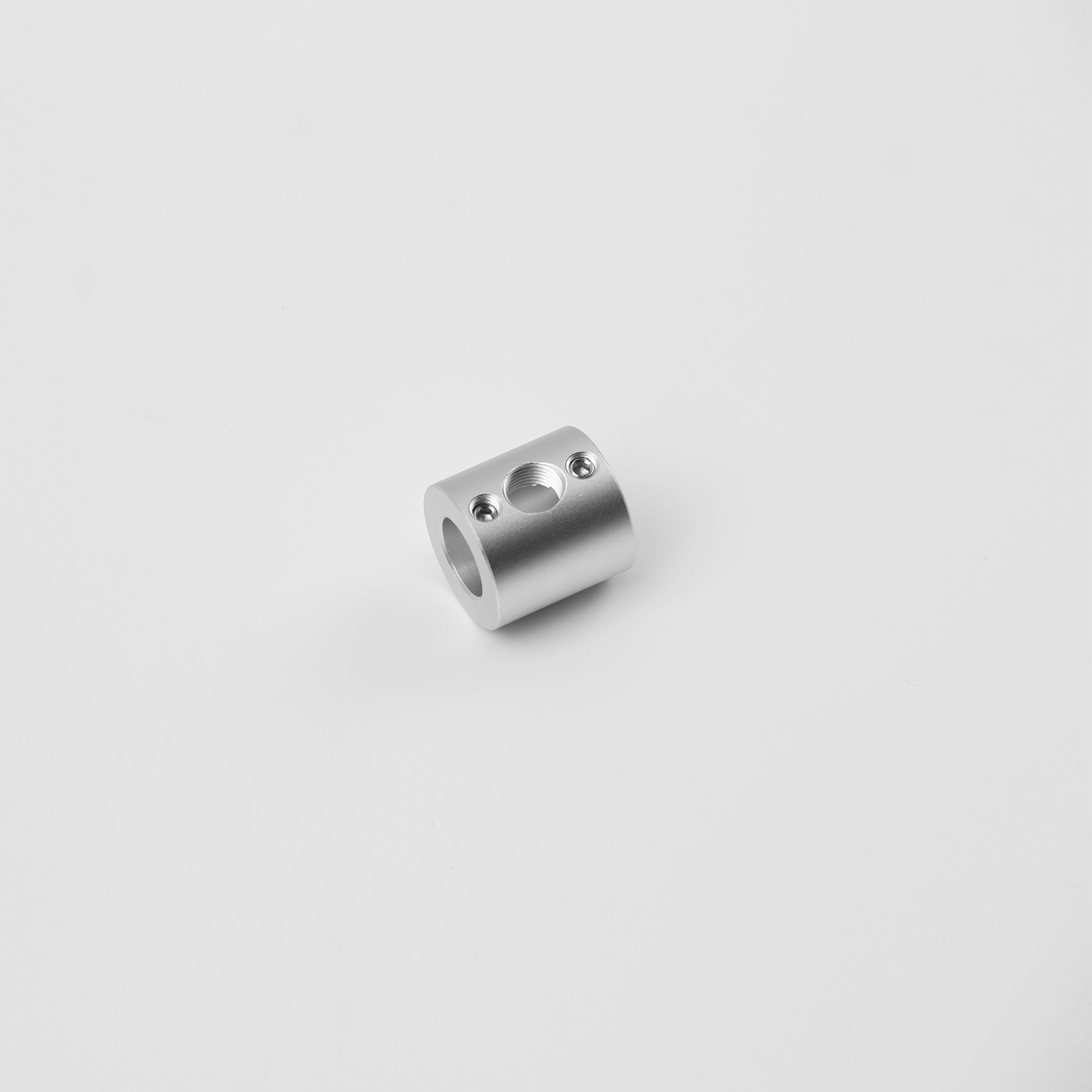

NF-360-D25-TC
360 NeonFlex D25 T Connector Alu
-

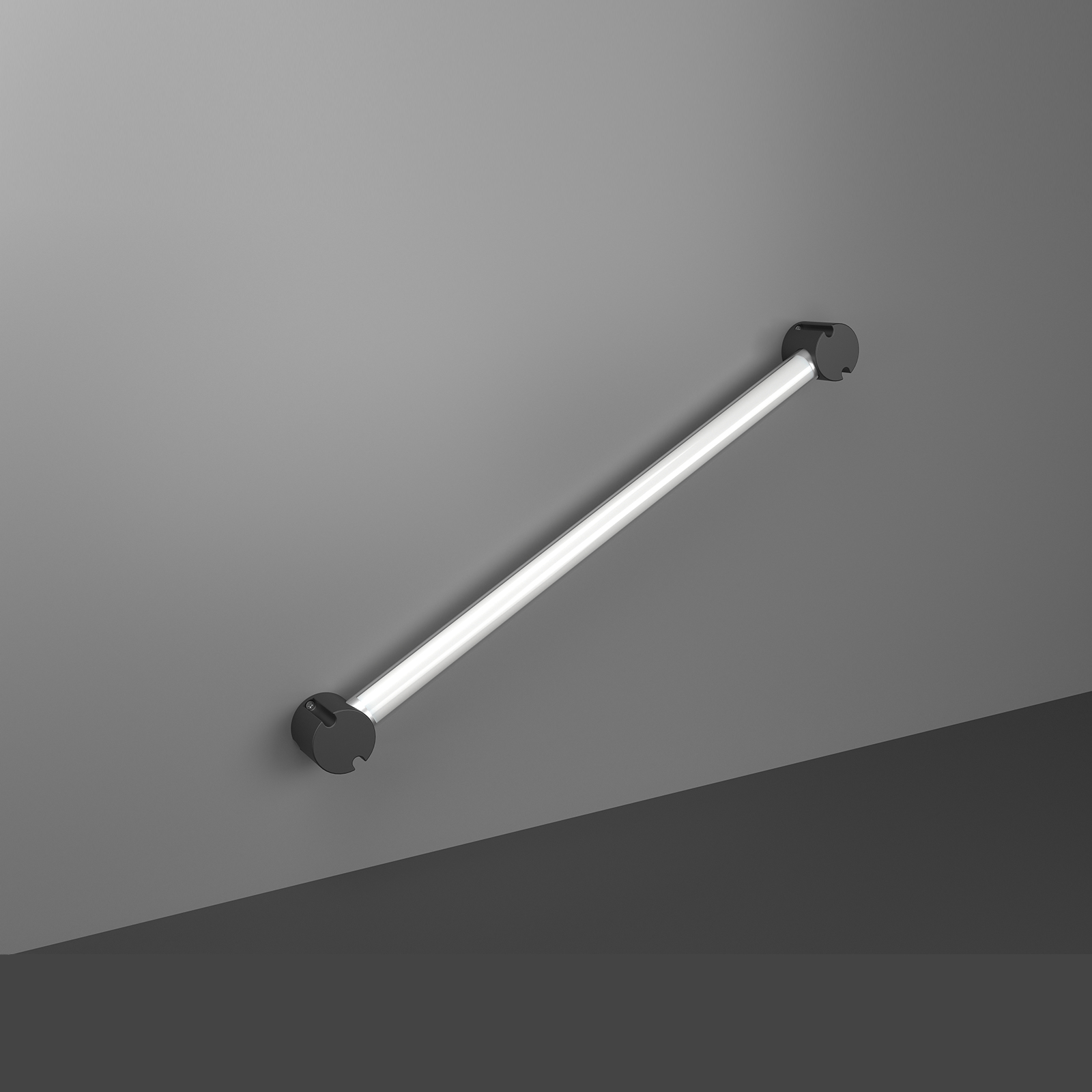

NF-360-D25-WM-B
360 NeonFlex D25 Wall Mount Bracket 2pcs Black
-
NF-360-D25-WM-S
360 NeonFlex D25 Wall Mount Bracket 2pcs Silver
-

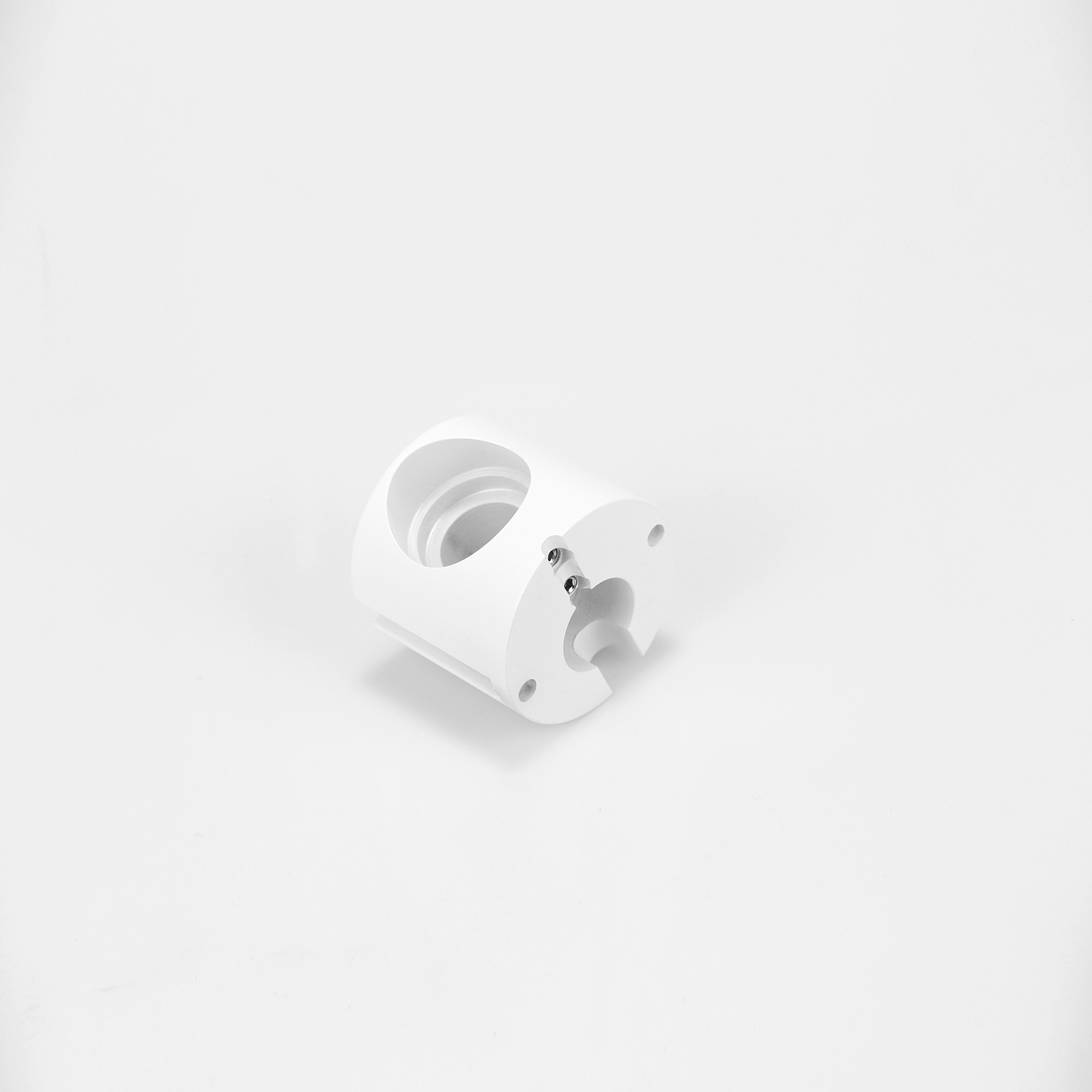

NF-360-D25-WM-W
360 NeonFlex D25 Wall Mount Bracket 2pcs White
-
NF-360-D25-MESH-Y
360 NeonFlex D25 Yellow Mesh
-

Downloads

Technical
DATASHEET
360 Bend D25
