Neon Flex

3D 20x20

3D Neon

Performance Specifications

Light Source
LED
Voltage
24
Wattage/M
9.6
CRI
90
MacAdams Step
3
Beam Angle
112
LED Lifetime
L70 B10 50,000Hrs
IP Rating
65
IK Rating
N/A
Dimming
N/A

Physical Specifications

LEDs/M
N/A
Width (mm)
20
Height (mm)
20
Length (mm)
20000
Pitch (mm)
N/A
Cutting Intervals (mm)
50
Max Single Run (mm)
5000
Max Flex Width (mm)
N/A
Material
Silicon
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Colour Temp
Lumens / M
Efficacy
NF-3D-20x20-24V-20W-27K-IP65-1000
3D NeonFlex 20x20 9.6W 2700K IP65
2700
415
43
NF-3D-20x20-24V-20W-30K-IP65-1000
3D NeonFlex 20x20 9.6W 3000K IP65
3000
436
45
NF-3D-20x20-24V-20W-40K-IP65-1000
3D NeonFlex 20x20 9.6W 4000K IP65
4000
462
48

3D 20x20 Components

NF-3D-20x20-EFC,NF-3D-20x20-SFC,NF-3D-20x20-RFC,NF-3D-20x20-EC

Code
Product Name
Material
Finish
3D NeonFlex 20x20 End Cap
NF-3D-20x20-EC
3D NeonFlex 20x20 End Cap
Silicon
-

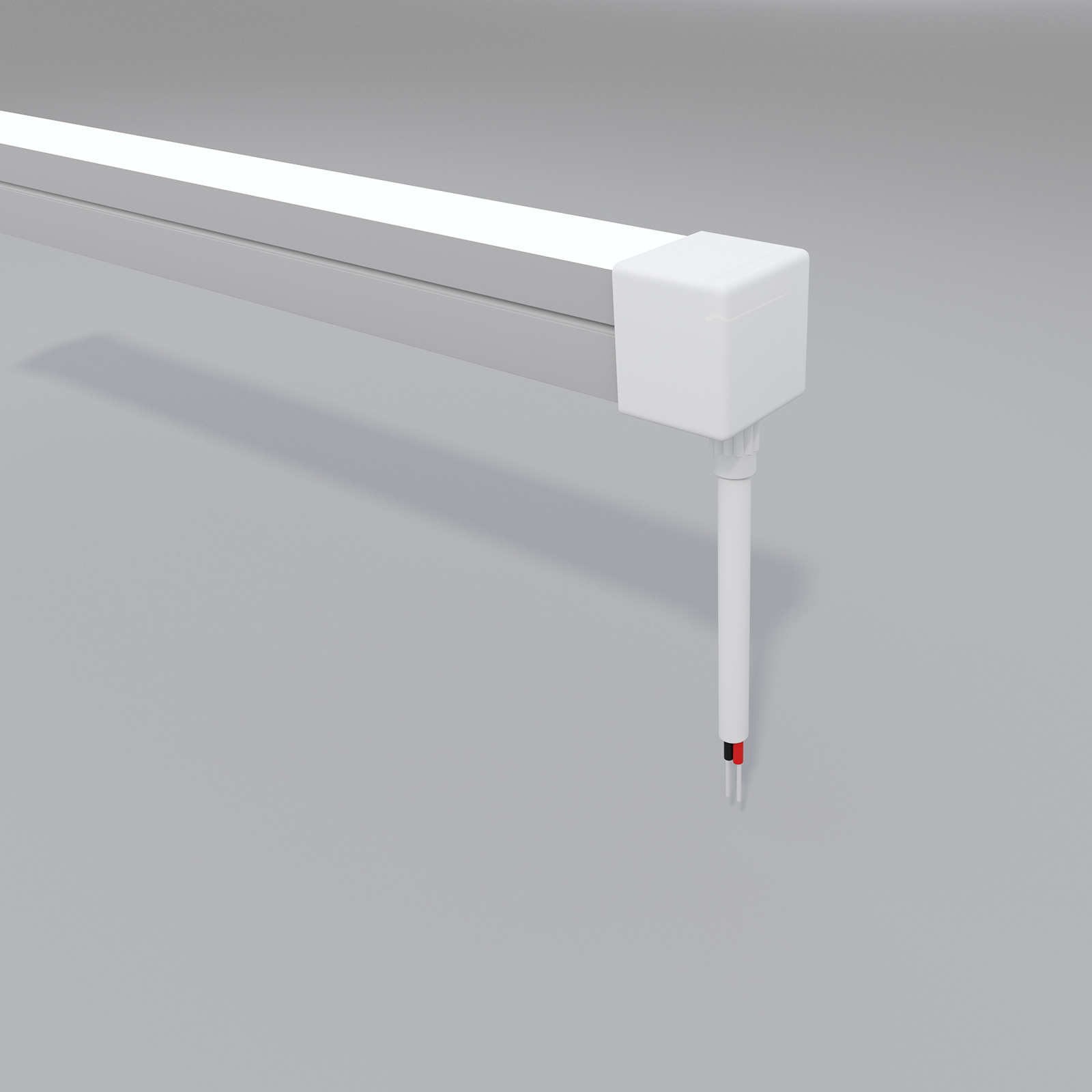

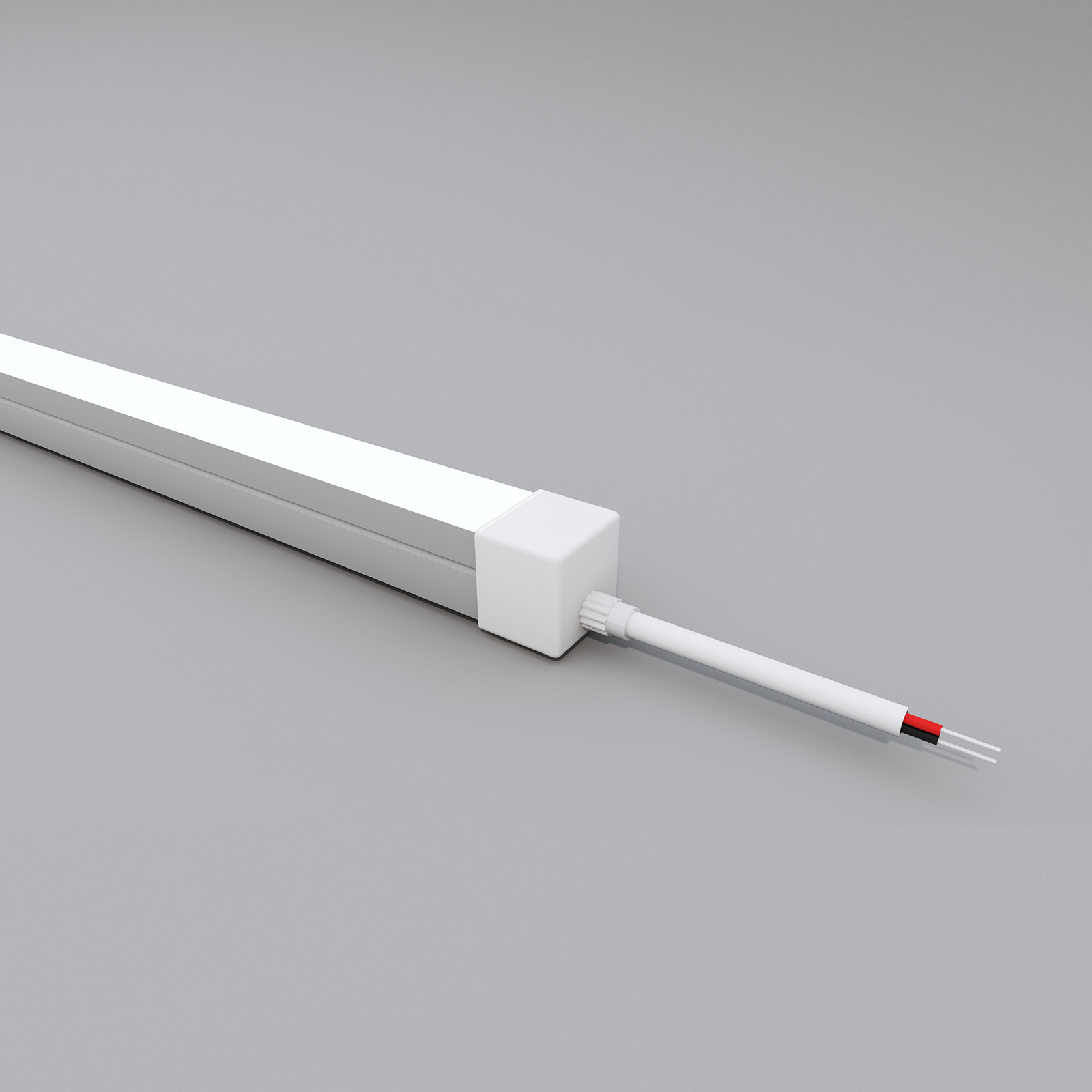

3D NeonFlex 20x20 End Feeder Cap
NF-3D-20x20-EFC
3D NeonFlex 20x20 End Feeder Cap
Silicon
-
3D NeonFlex 20x20 Rear Feeder Cap
NF-3D-20x20-RFC
3D NeonFlex 20x20 Rear Feeder Cap
Silicon
-

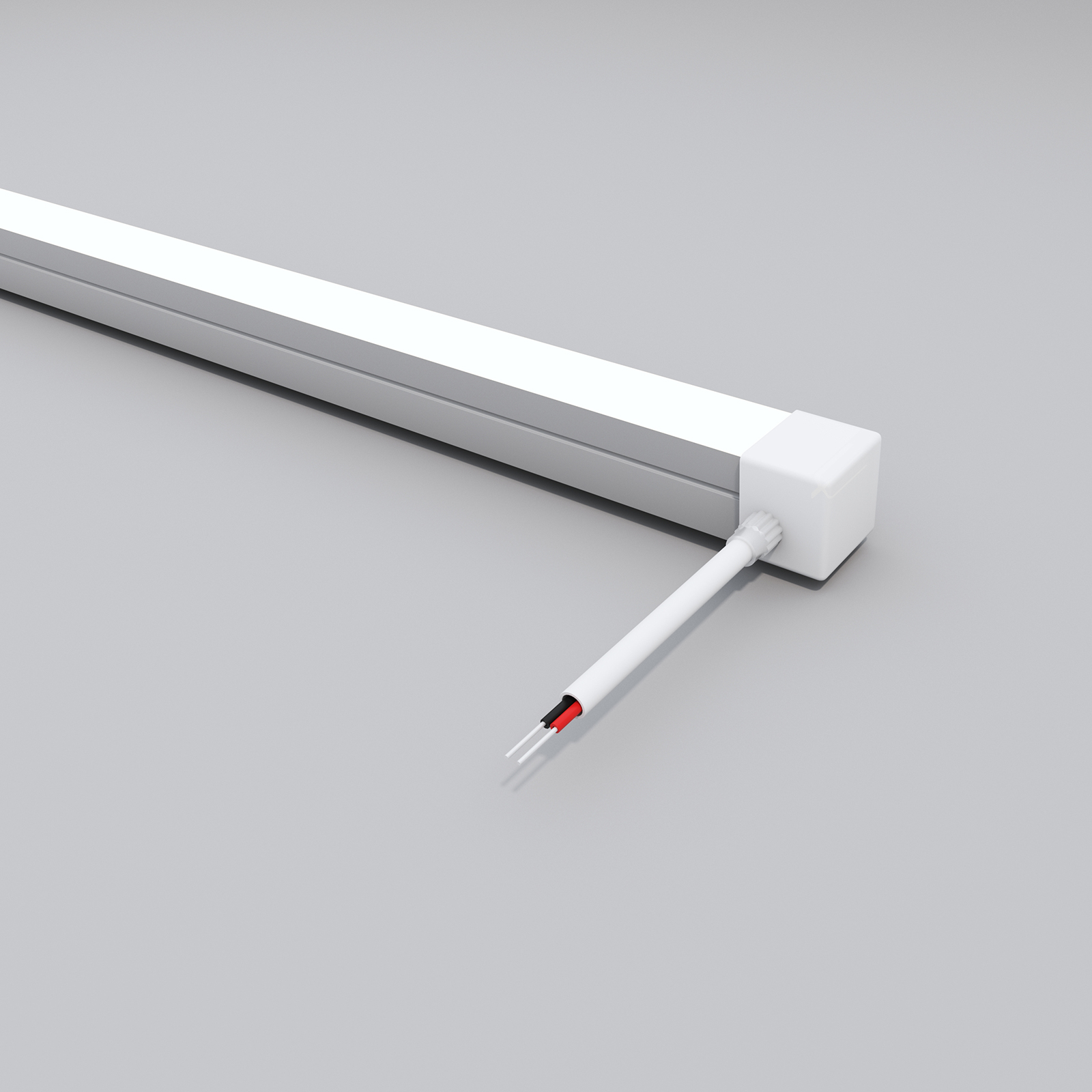

3D NeonFlex 20x20 Side Feeder Cap
NF-3D-20x20-SFC
3D NeonFlex 20x20 Side Feeder Cap
Silicon
-

3D 20x20 Accessories

NF-3D-20x20-MC,NF-3D-20x20-MP-2000,NF-3D-20x20-FP-1000,NF-3D-20x20-FP-2000,NF-3D-20x20-FP-3000,NF-3D-20x20-FP-4000,NF-3D-20x20-FP-5000

Code
Product Name
Material
Finish
NF-3D-20x20-FP-1000
3D NeonFlex 20x20 Flexible Profile 1m
Stainless Steel
-
NF-3D-20x20-FP-2000
3D NeonFlex 20x20 Flexible Profile 2m
Stainless Steel
-
NF-3D-20x20-FP-3000
3D NeonFlex 20x20 Flexible Profile 3m
Stainless Steel
-
NF-3D-20x20-FP-4000
3D NeonFlex 20x20 Flexible Profile 4m
Stainless Steel
-
NF-3D-20x20-FP-5000
3D NeonFlex 20x20 Flexible Profile 5m
Stainless Steel
-
NF-3D-20x20-MC
3D NeonFlex 20x20 Mounting Clip
Aluminium
-
NF-3D-20x20-MP-2000
3D NeonFlex 20x20 Mounting Profile 2m
Aluminium
-

Downloads

Technical
DATASHEET
Photometrics
LDT / IES
3D 20x20
