Performance Specifications
Light Source
LED
Voltage
24
Wattage/M
9.6
CRI
90
MacAdams Step
3
Beam Angle
115
LED Lifetime
L70 B10 50,000Hrs
IP Rating
65
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI
Physical Specifications
LEDs/M
N/A
Width (mm)
15
Height (mm)
15
Length (mm)
5010
Cutting Intervals (mm)
50
Max Single Run (mm)
5000
Max Flex Width (mm)
N/A
Material
Silicon
Finish
N/A
Diffuser Transparency
N/A
Technical Specifications
Code
Product Name
Colour Temp
Flux
Efficacy
Side Bend NeonFlex 15x15 9.6W 3000K IP65 Components
Code
Product Name
Material
Finish

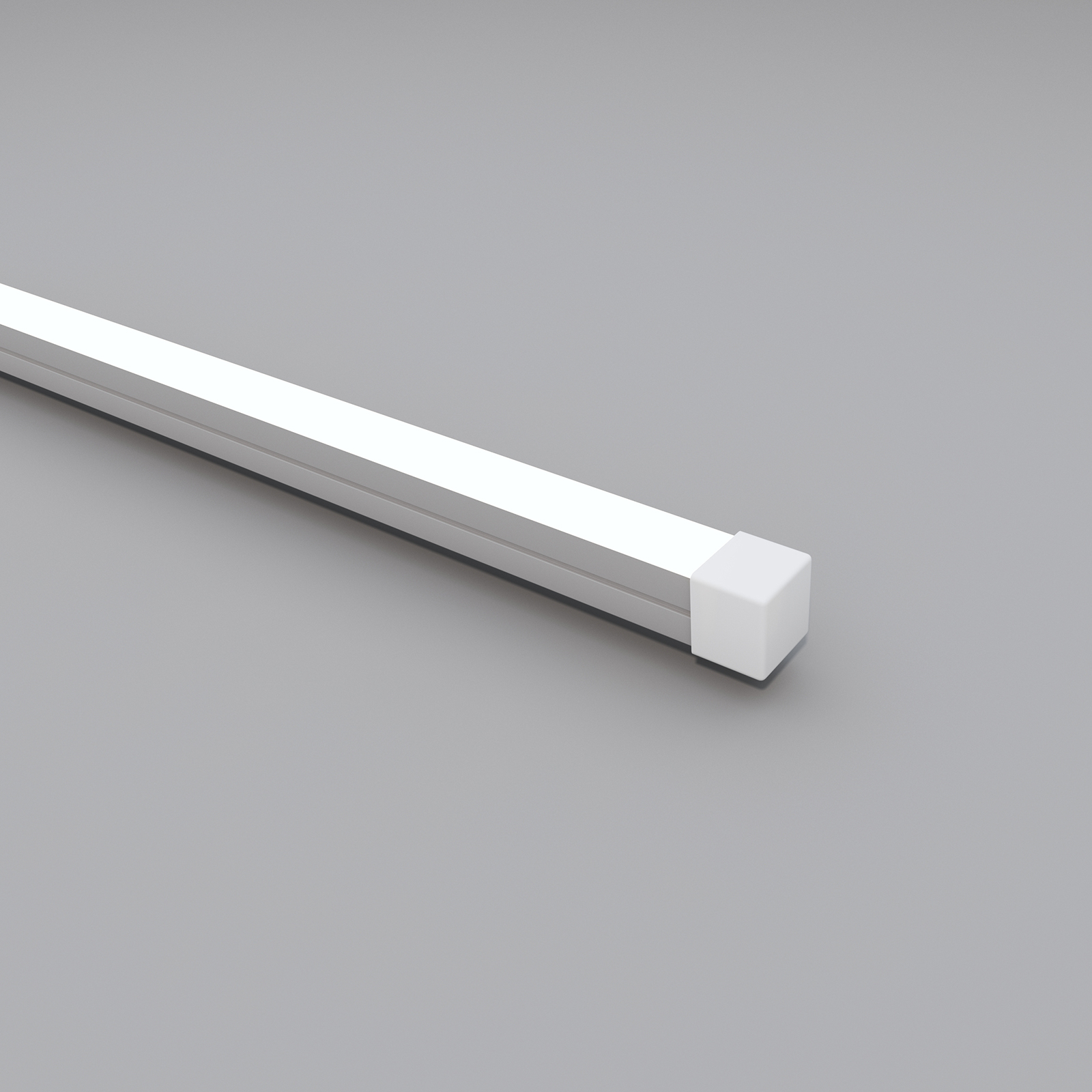

NF-SB-15x15-EC
Side Bend NeonFlex 15x15 End Cap
Silicon
-

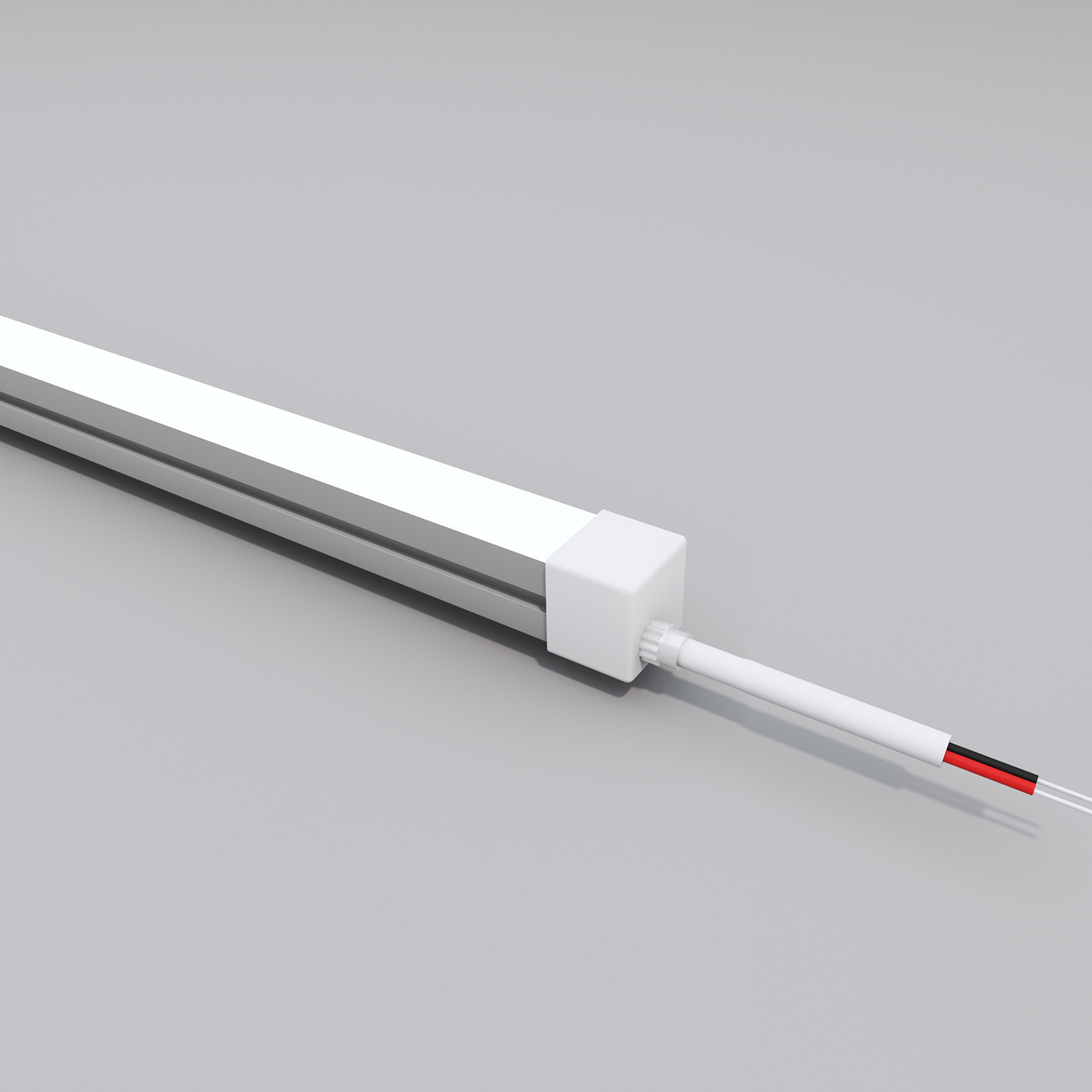

NF-SB-15x15-EFC
Side Bend NeonFlex 15x15 End Feeder Cap
Silicon
-

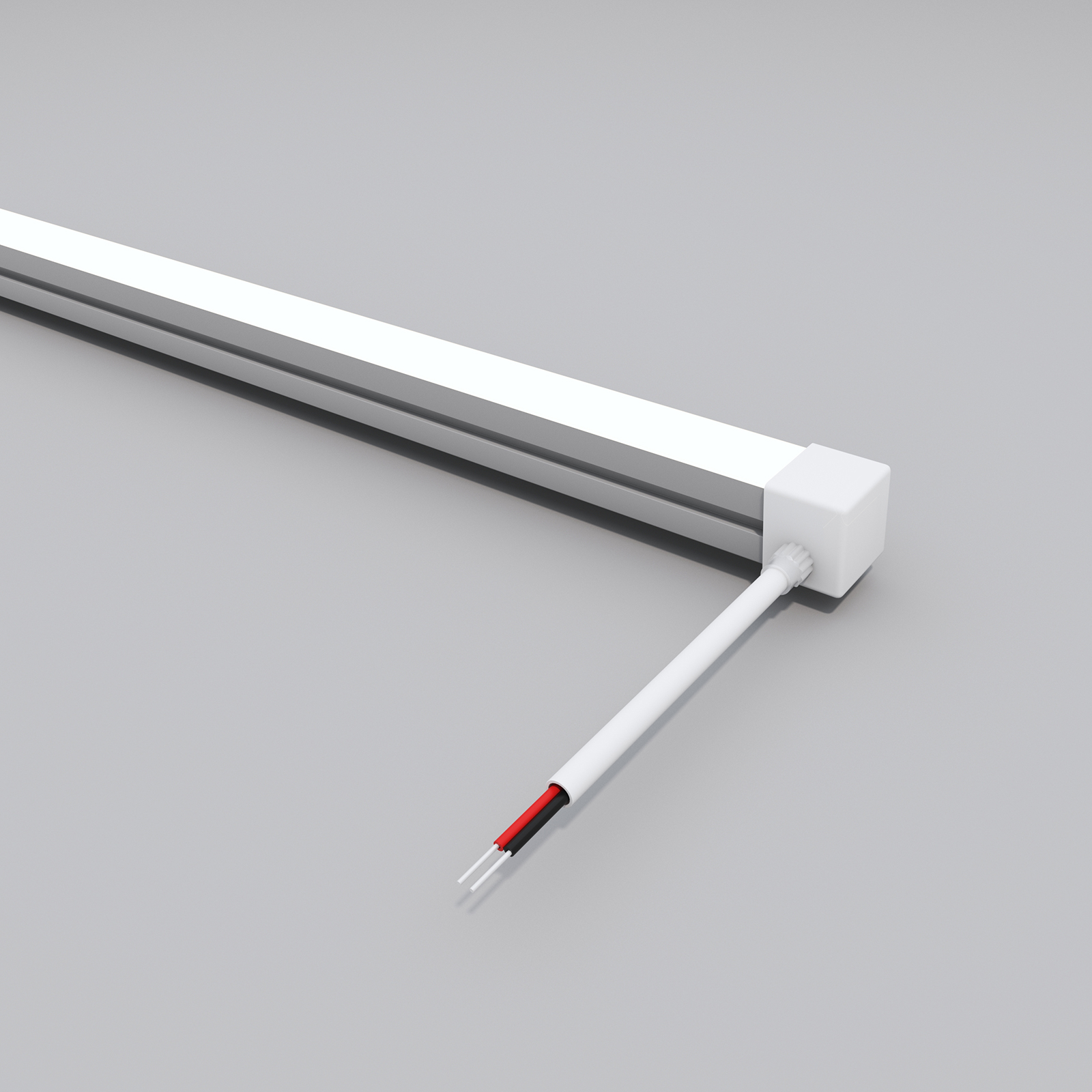

NF-SB-15x15-SFC
Side Bend NeonFlex 15x15 Side Feeder Cap
Silicon
-
Side Bend NeonFlex 15x15 9.6W 3000K IP65 Accessories
Code
Product Name
Material
Finish
NF-SB-15x15-FP
Side Bend NeonFlex 15x15 Flexible Profile 1m
Stainless Steel
-

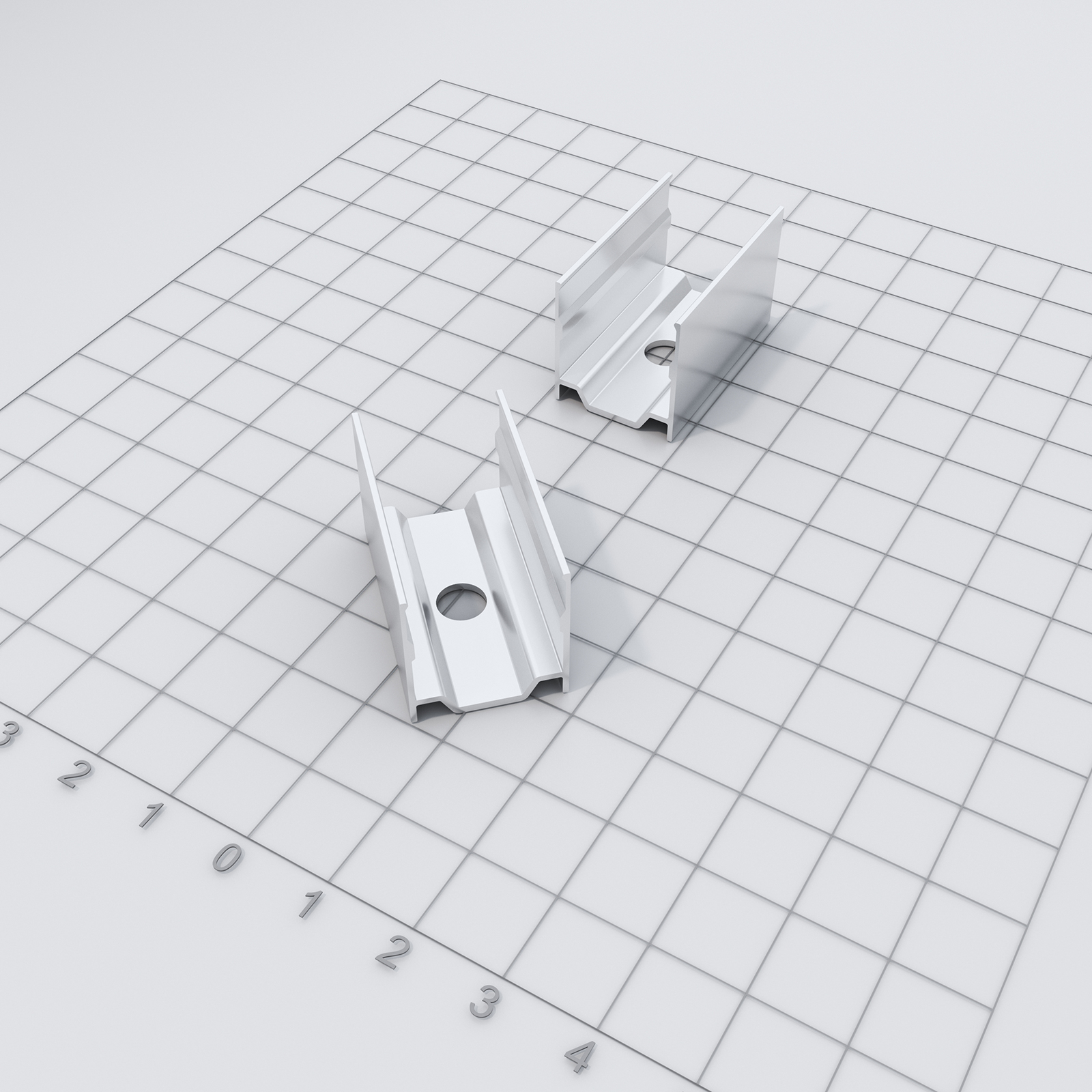

NF-SB-15x15-MC
Side Bend NeonFlex 15x15 Mounting Clip
Aluminium
-

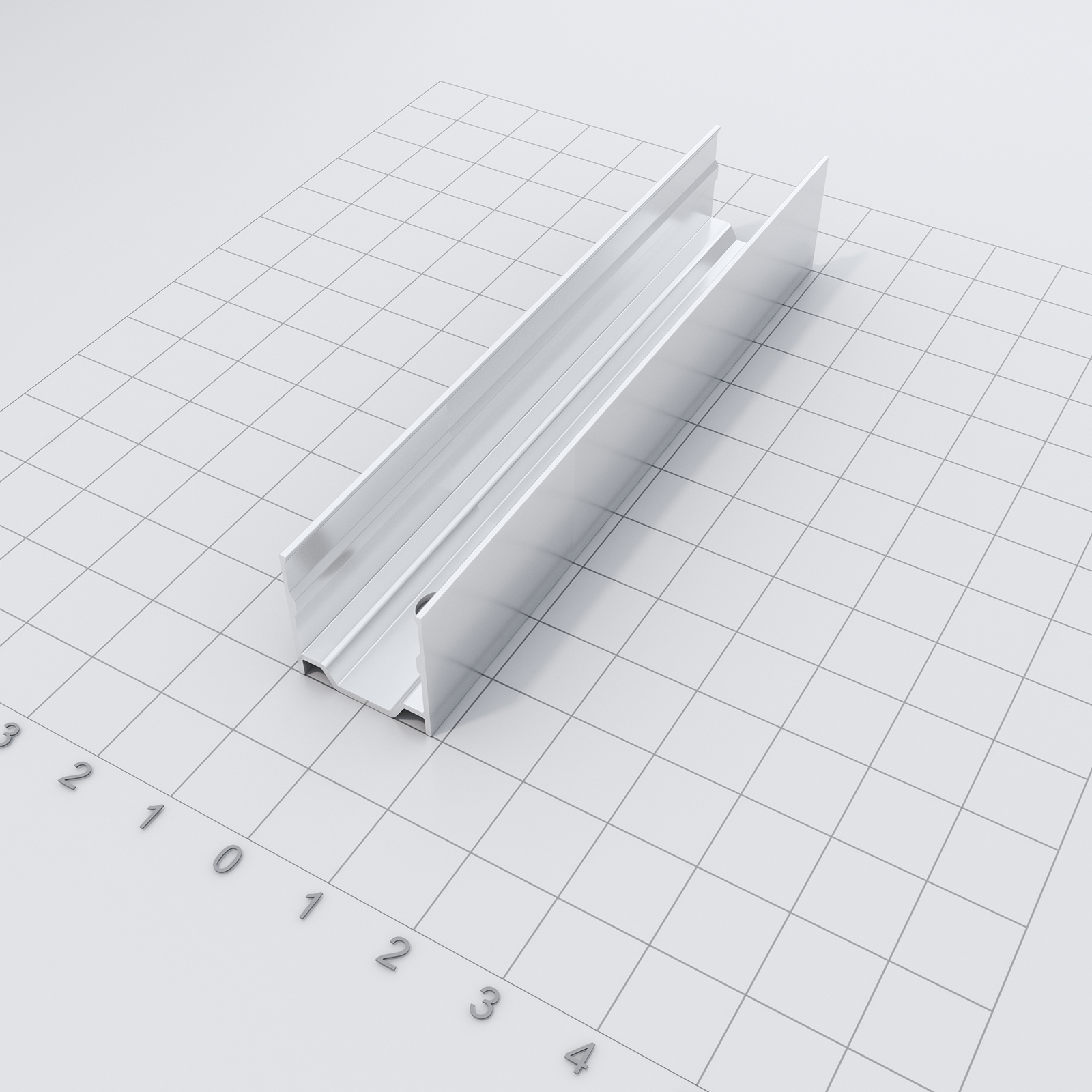

NF-SB-15x15-MP-2000
Side Bend NeonFlex 15x15 Mounting Profile 2m
Aluminium
-
Downloads
Photometrics
