Physical Specifications
LEDs/M
N/A
Width (mm)
14
Height (mm)
58
Length (mm)
1000
2000
3000
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
N/A
Material
Aluminium
Finish
Anodised Aluminium
Diffuser Transparency
N/A
Technical Specifications
Code
Product Name
Length (mm)
Finish
ARIEL-R-A-1000

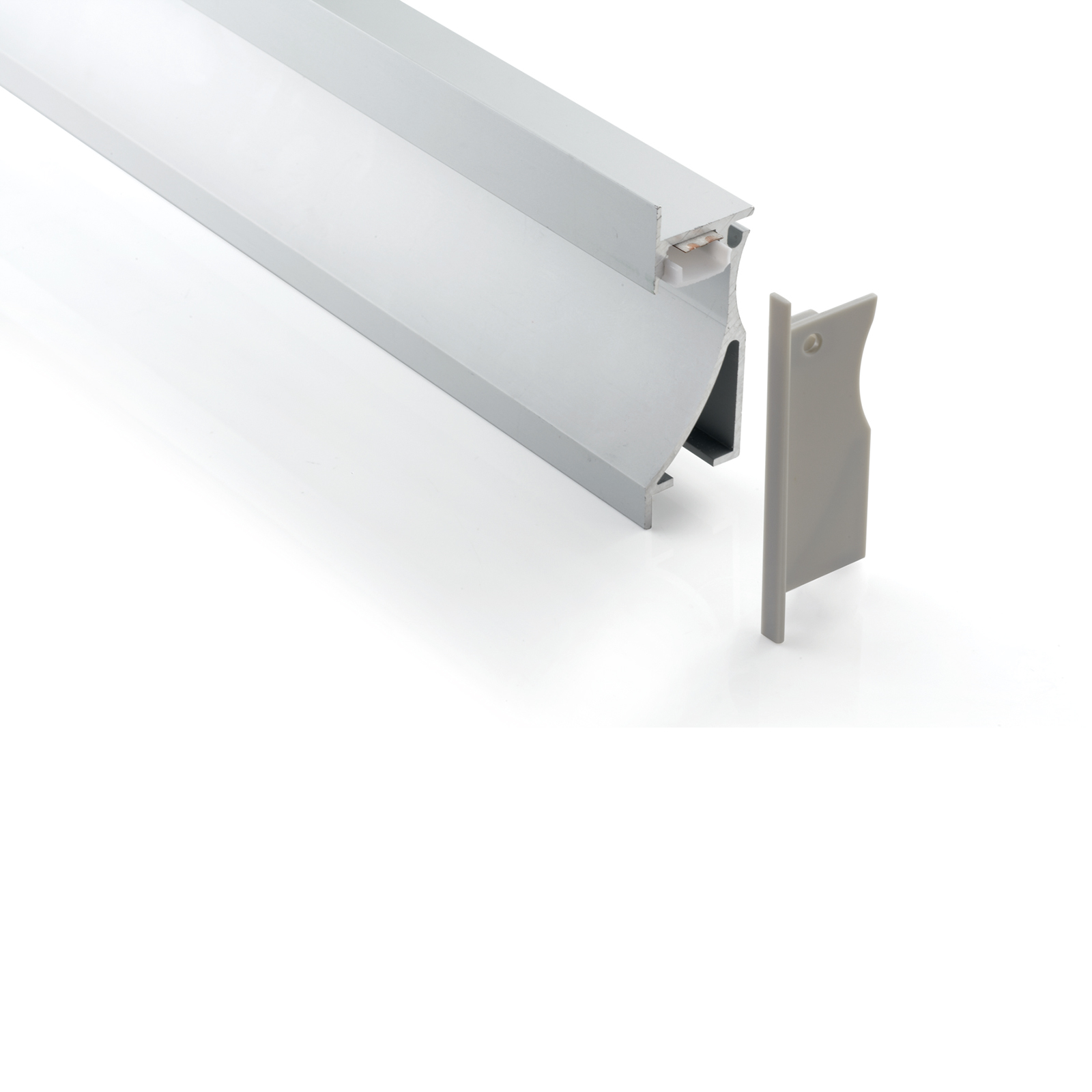

Ariel 14mm x 58mm Recessed Mounted Profile Ano Alu 1000mm
1000
Anodised Aluminium
ARIEL-R-A-2000
Ariel 14mm x 58mm Recessed Mounted Profile Ano Alu 2000mm
2000
Anodised Aluminium
ARIEL-R-A-3000
Ariel 14mm x 58mm Recessed Mounted Profile Ano Alu 3000mm
3000
Anodised Aluminium
Diffusers
Code
Product Name
Material
Transparency
D10-OD-1000
D10 Opal Diffuser 1000mm
PC
-
D10-OD-2000
D10 Opal Diffuser 2000mm
PC
-
D10-OD-3000
D10 Opal Diffuser 3000mm
PC
-
Ariel Components
Code
Product Name
Material
Finish
ARIEL-EC-A
Ariel End Cap Pair Grey
PP
Grey
Downloads
Technical
CAD
LED Flex Options
