Linear Profile

Fakous

Lensed

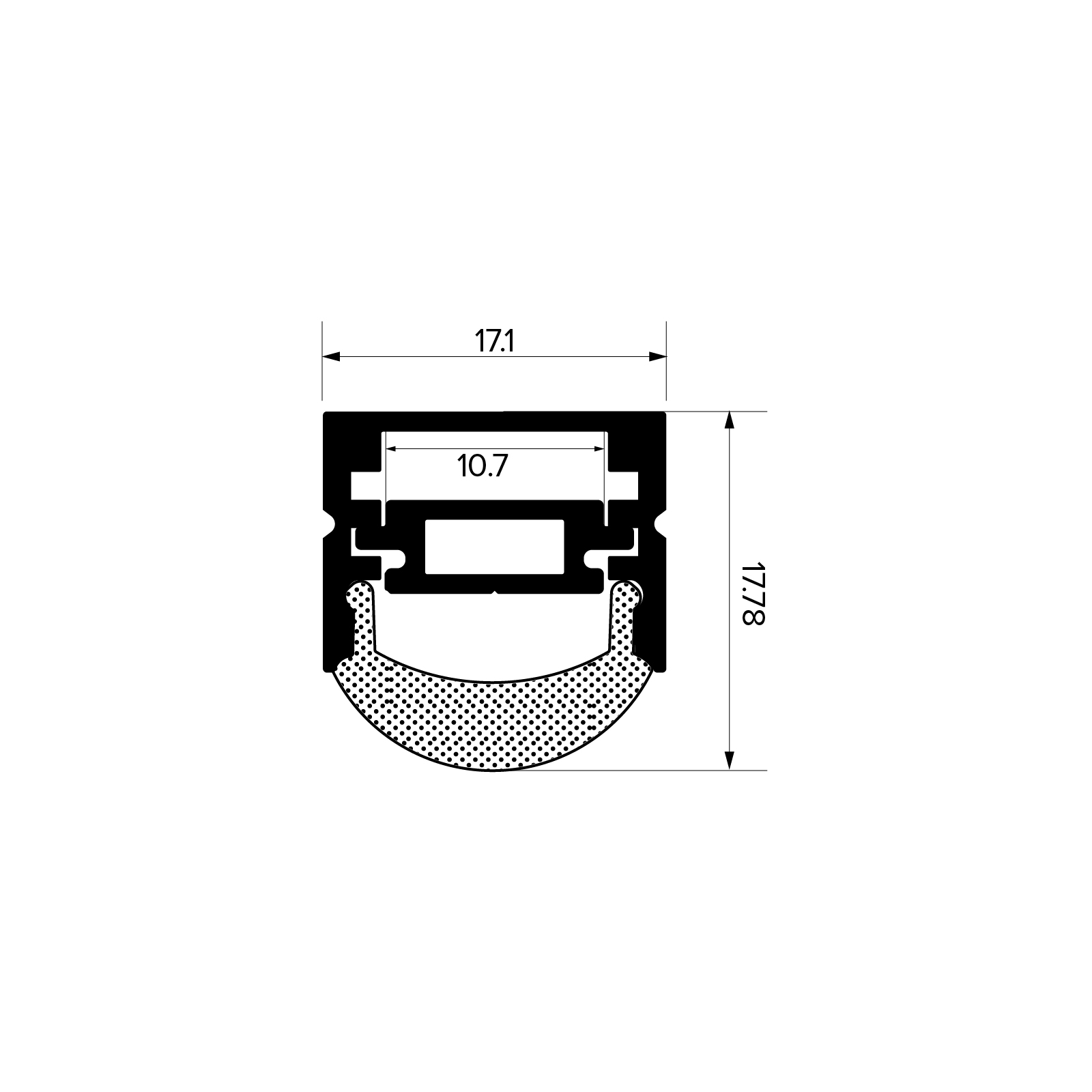

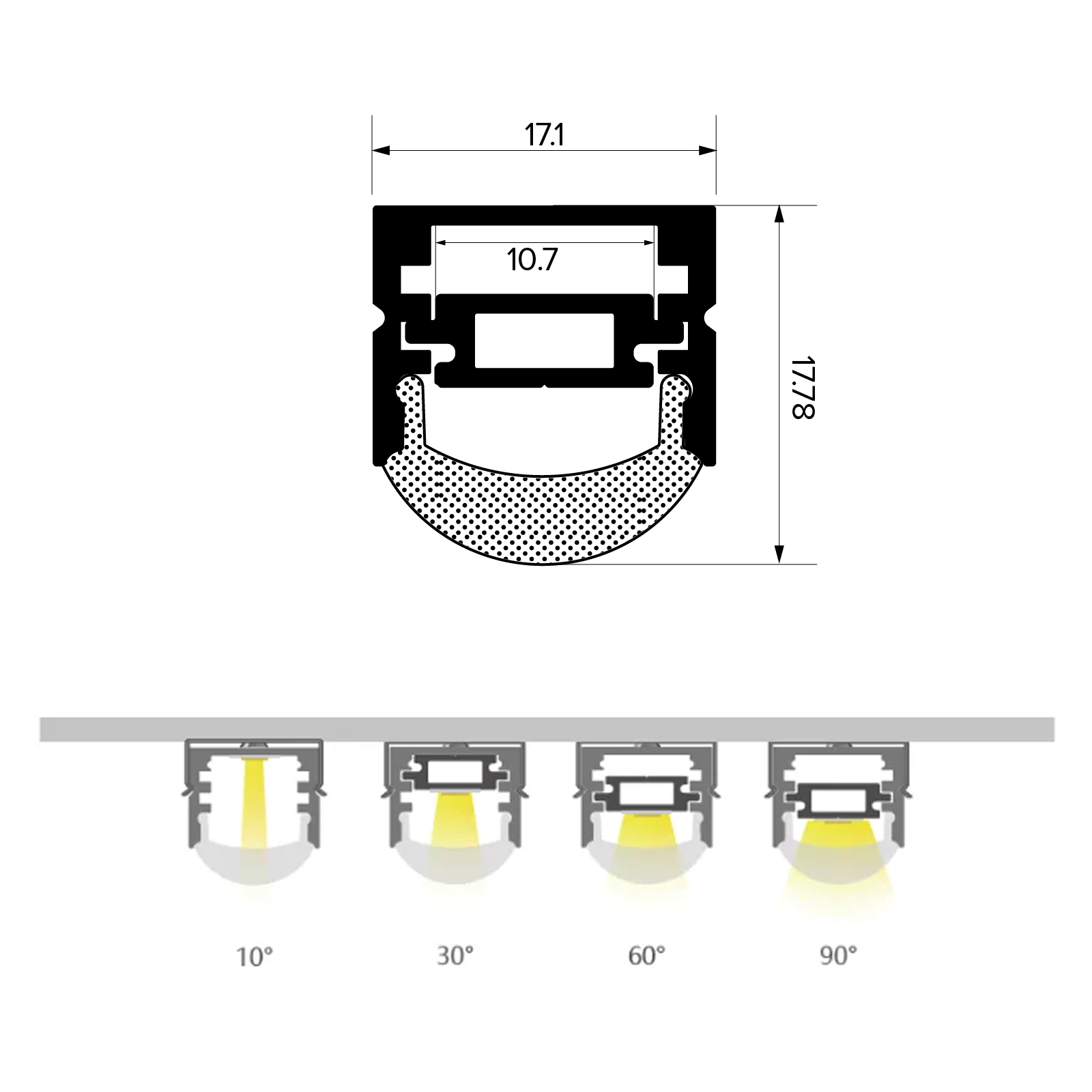

Physical Specifications

LEDs/M
N/A
Width (mm)
17
Height (mm)
17.8
Length (mm)
1000
2000
3000
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
N/A
Material
Aluminium
Finish
Anodised Aluminium,Black,White
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Length (mm)
Finish
FAKOUS-S-A-1000
Fakous 17mm x 18mm Surface Mounted Profile Ano Alu 1000mm
1000
Anodised Aluminium
FAKOUS-S-A-2000
Fakous 17mm x 18mm Surface Mounted Profile Ano Alu 2000mm
2000
Anodised Aluminium
FAKOUS-S-A-3000
Fakous 17mm x 18mm Surface Mounted Profile Ano Alu 3000mm
3000
Anodised Aluminium
FAKOUS-S-B-1000
Fakous 17mm x 18mm Surface Mounted Profile Black 1000mm
1000
Black
FAKOUS-S-B-2000
Fakous 17mm x 18mm Surface Mounted Profile Black 2000mm
2000
Black
FAKOUS-S-B-3000
Fakous 17mm x 18mm Surface Mounted Profile Black 3000mm
3000
Black
FAKOUS-S-W-1000
Fakous 17mm x 18mm Surface Mounted Profile White 1000mm
1000
White
FAKOUS-S-W-2000
Fakous 17mm x 18mm Surface Mounted Profile White 2000mm
2000
White
FAKOUS-S-W-3000
Fakous 17mm x 18mm Surface Mounted Profile White 3000mm
3000
White

Diffusers


Code
Product Name
Material
Transparency
DL1718 Lens 1000mm
DL1718-LEN-1000
DL1718 Lens 1000mm
PC
180
DL1718 Lens 2000mm
DL1718-LEN-2000
DL1718 Lens 2000mm
PC
180
DL1718 Lens 3000mm
DL1718-LEN-3000
DL1718 Lens 3000mm
PC
180

Fakous Components

FAKOUS-I-A-1000,FAKOUS-I-A-2000,FAKOUS-I-A-3000,FAKOUS-EC-A,FAKOUS-ECH-A,FAKOUS-EC-A,FAKOUS-EC-B,FAKOUS-ECH-B,FAKOUS-EC-W,FAKOUS-ECH-W

Code
Product Name
Material
Finish
Fakous End Cap Black
FAKOUS-EC-B
Fakous End Cap Black
PP
Black
Fakous End Cap Grey
FAKOUS-EC-A
Fakous End Cap Grey
PP
Grey
Fakous End Cap White
FAKOUS-EC-W
Fakous End Cap White
PP
White
Fakous End Cap with Hole Black
FAKOUS-ECH-B
Fakous End Cap with Hole Black
PP
Black
Fakous End Cap with Hole Grey
FAKOUS-ECH-A
Fakous End Cap with Hole Grey
PP
Grey
Fakous End Cap with Hole White
FAKOUS-ECH-W
Fakous End Cap with Hole White
PP
White
Fakous Insert Profile Ano Alu 1000mm
FAKOUS-I-A-1000
Fakous Insert Profile Ano Alu 1000mm
Aluminium
Anodised Aluminium
Fakous Insert Profile Ano Alu 2000mm
FAKOUS-I-A-2000
Fakous Insert Profile Ano Alu 2000mm
Aluminium
Anodised Aluminium
Fakous Insert Profile Ano Alu 3000mm
FAKOUS-I-A-3000
Fakous Insert Profile Ano Alu 3000mm
Aluminium
Anodised Aluminium

Fakous Accessories

FAKOUS-MC,FAKOUS-AMC

Code
Product Name
Material
Finish
FAKOUS-AMC
Fakous Adjustable Mounting Clip
Stainless Steel
-
FAKOUS-MC
Fakous Mounting Clip
Stainless Steel
-

Downloads

Technical
DATASHEET
CAD
2D
Fakous

LED Flex Options

LED Flex
COF High Output 10m
Wattage/M
| 11
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 0.0
Cutting Intervals (mm)
| 41.67
COF Plus
Wattage/M
| 14.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 0.0
Cutting Intervals (mm)
| 50
Effi Plus
Wattage/M
| 14.4
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Plus High Output
Wattage/M
| 19.2
Colour Temp
| 2700
Width (mm)
| 8
Pitch (mm)
| 4.76
Cutting Intervals (mm)
| 33.3
