OPTIC FIBRE

Neon Flex

Top Bend 6x6

Top Bend

Performance Specifications

Light Source
LED
Voltage
24
Wattage/M
7.2
CRI
90
MacAdams Step
3
Beam Angle
112
LED Lifetime
L70 B10 50,000Hrs
IP Rating
65
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI

Physical Specifications

LEDs/M
N/A
Width (mm)
6
Height (mm)
6
Length (mm)
5020
Pitch (mm)
N/A
Cutting Intervals (mm)
33.3
Max Single Run (mm)
5020
Max Flex Width (mm)
N/A
Material
Silicon
Diffuser Transparency
72

Technical Specifications

Code
Product Name
Colour Temp
Lumens/M
Efficacy
NF-TB-6x6-24V-7.2W-27K-IP65
Top Bend NeonFlex 6x6 7.2W 2700K IP65
2700
439
-
NF-TB-6x6-24V-7.2W-30K-IP65
Top Bend NeonFlex 6x6 7.2W 3000K IP65
3000
451
-
NF-TB-6x6-24V-7.2W-40K-IP65
Top Bend NeonFlex 6x6 7.2W 4000K IP65
4000
492
-

Top Bend 6x6 Components

NF-TB-6x6-EFC,NF-TB-6x6-SFC,NF-TB-6x6-RFC,NF-TB-6x6-EC

Code
Product Name
Material
Finish

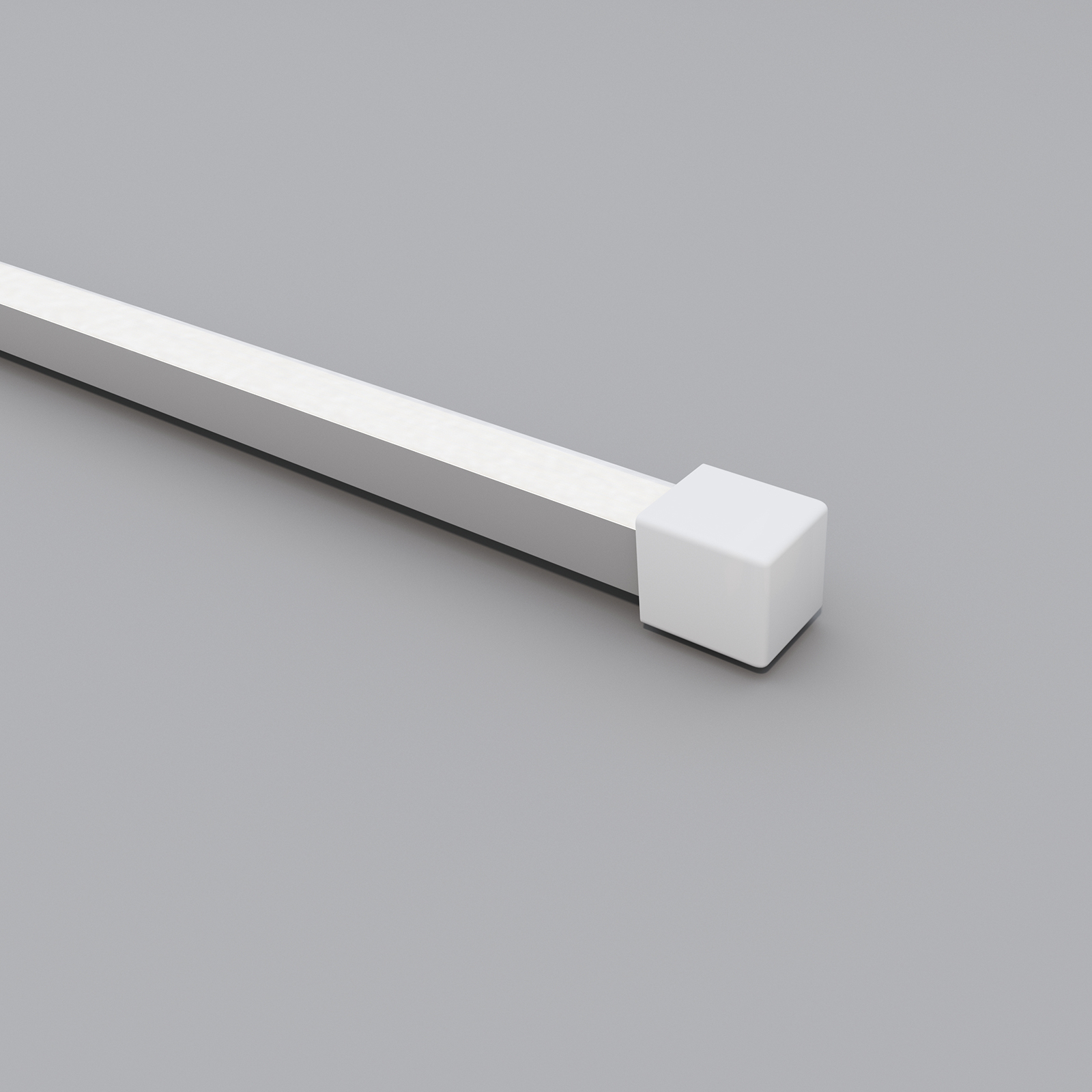

Top Bend NeonFlex 6x6 End Cap
NF-TB-6x6-EC
Top Bend NeonFlex 6x6 End Cap
Silicon
-
Top Bend NeonFlex 6x6 Rear Feed End Cap
NF-TB-6x6-RFC
Top Bend NeonFlex 6x6 Rear Feed End Cap
Silicon
-

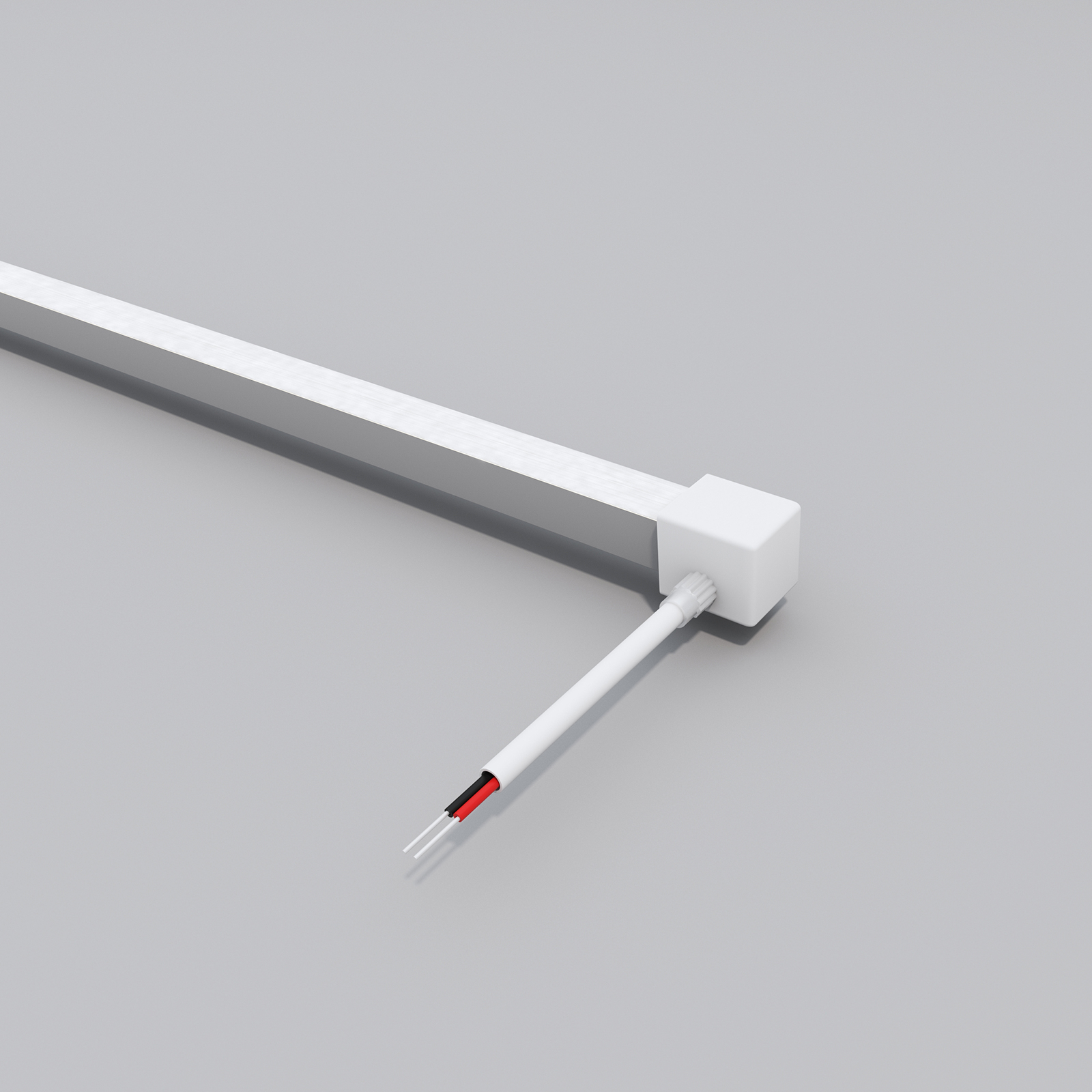

Top Bend NeonFlex 6x6 Side Feed End Cap
NF-TB-6x6-SFC
Top Bend NeonFlex 6x6 Side Feed End Cap
Silicon
-

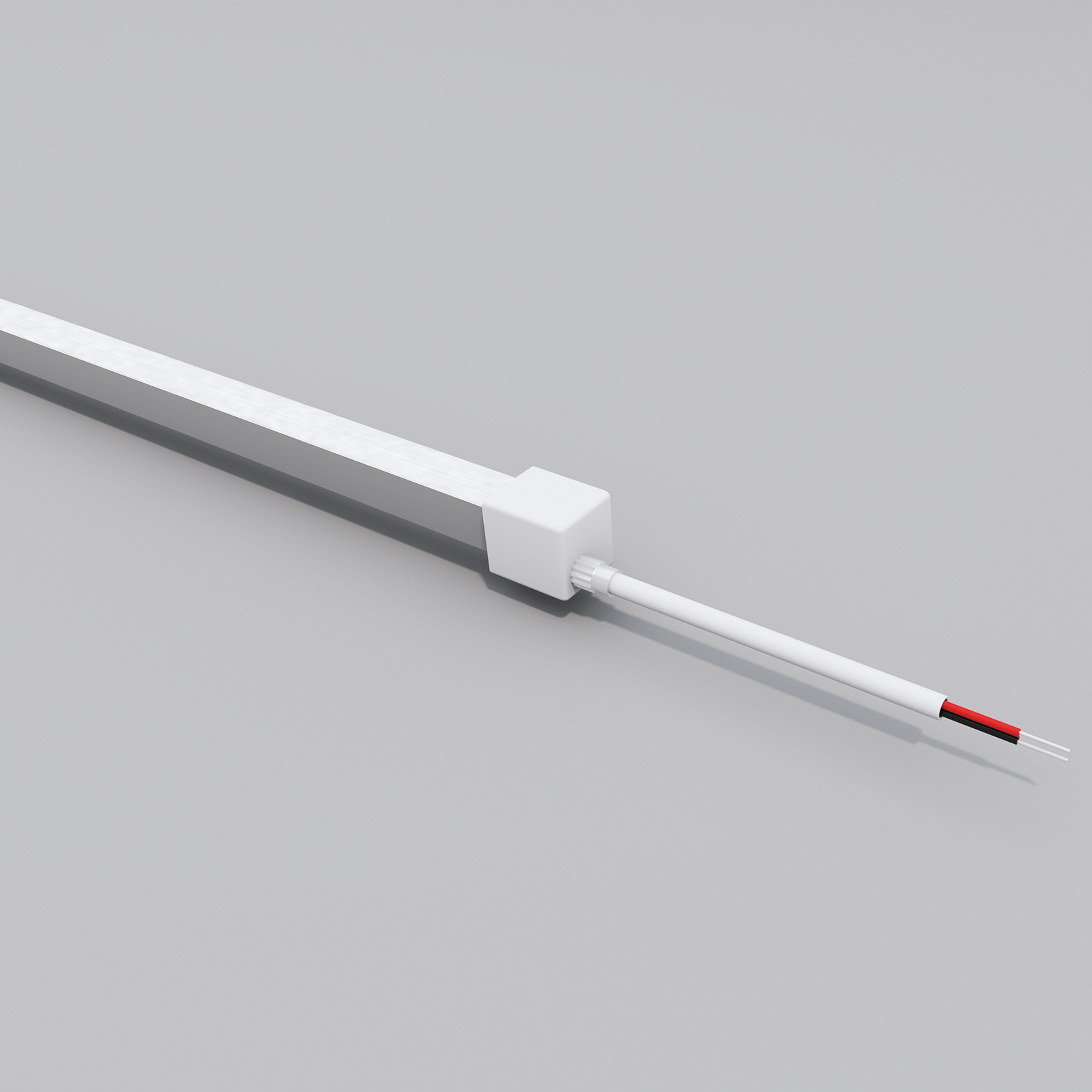

Top Bend NeonFlex 6x6 Straight Feed End Cap
NF-TB-6x6-EFC
Top Bend NeonFlex 6x6 Straight Feed End Cap
Silicon
-

Top Bend 6x6 Accessories

NF-TB-6x6-MC,NF-TB-6x6-MP-2000,NF-TB-6x6-FP-5000

Code
Product Name
Material
Finish
NF-TB-6x6-FP-5000
Top Bend NeonFlex 6x6 Flexible Profile 5m
Stainless Steel
Silver
NF-TB-6x6-MC

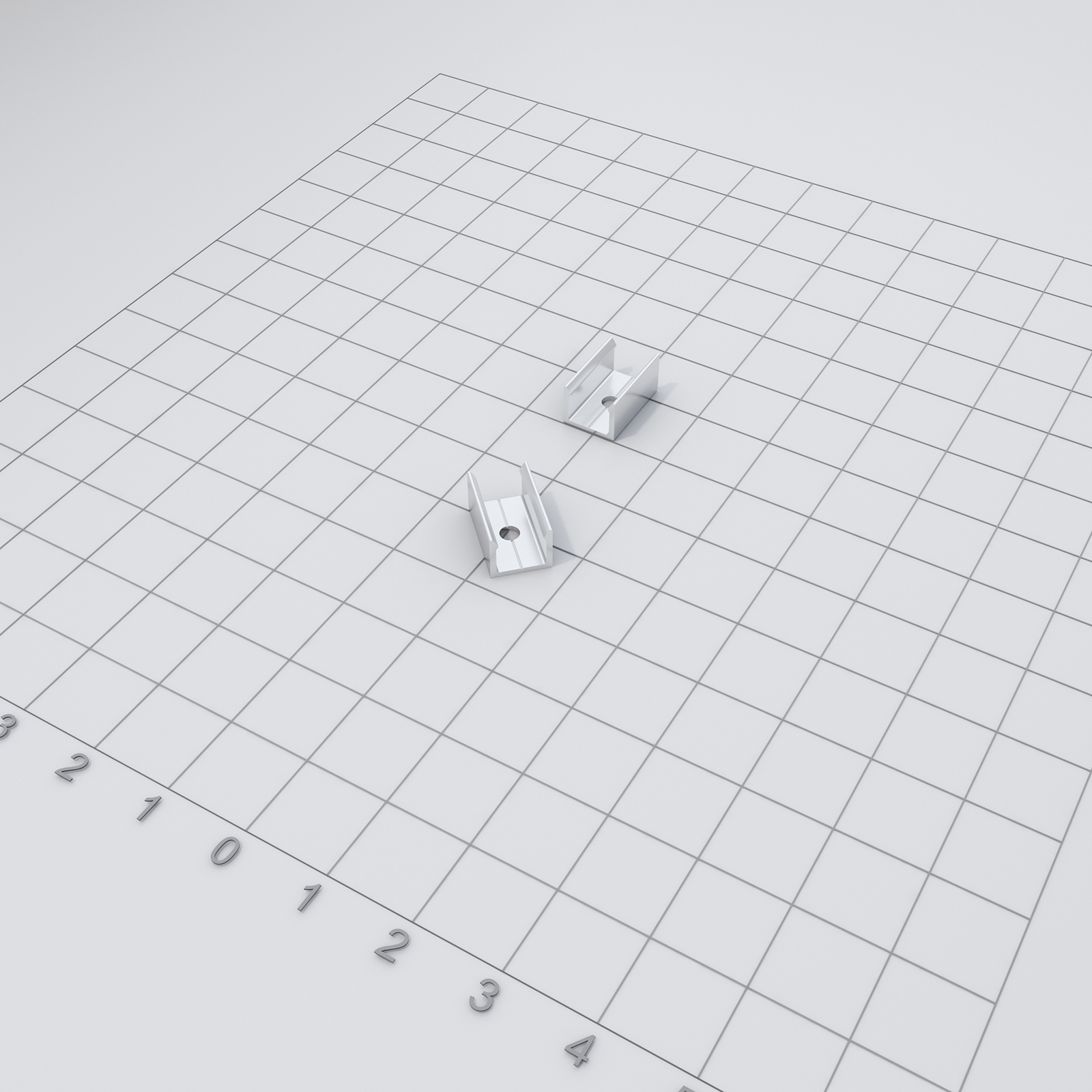

Top Bend NeonFlex 6x6 Mounting Clip
Aluminium
-
NF-TB-6x6-MP-2000
Top Bend NeonFlex 6x6 Mounting Profile 2m
Aluminium
Matt Silver

Downloads

Technical
DATASHEET
