3D 10x10

3D Neon

Performance Specifications

Light Source

LED

Voltage

Wattage/M

7.2

CRI

MacAdams Step

Beam Angle

112

LED Lifetime

L70 B10 50,000Hrs

IP Rating

IK Rating

N/A

Dimming

Non-Dimmable,Mains-Dimmable,DALI

Physical Specifications

LEDs/M

N/A

Width (mm)

Height (mm)

Length (mm)

5010

Pitch (mm)

N/A

Cutting Intervals (mm)

33.3

Max Single Run (mm)

5000

Max Flex Width (mm)

N/A

Material

Silicon

Diffuser Transparency

Technical Specifications

Code

Product Name

Colour Temp

Lumens / M

Efficacy

NF-3D-10x10-24V-7.2W-27K-IP65

3D NeonFlex 10x10 7.2W 2700K IP65

2700

410

NF-3D-10x10-24V-7.2W-30K-IP65

3D NeonFlex 10x10 7.2W 3000K IP65

3000

421

NF-3D-10x10-24V-7.2W-40K-IP65

3D NeonFlex 10x10 7.2W 4000K IP65

4000

460

3D 10x10 Components

NF-3D-10x10-EFC,NF-3D-10x10-SFC,NF-3D-10x10-EC

Code

Product Name

Material

Finish

NF-3D-10x10-EC

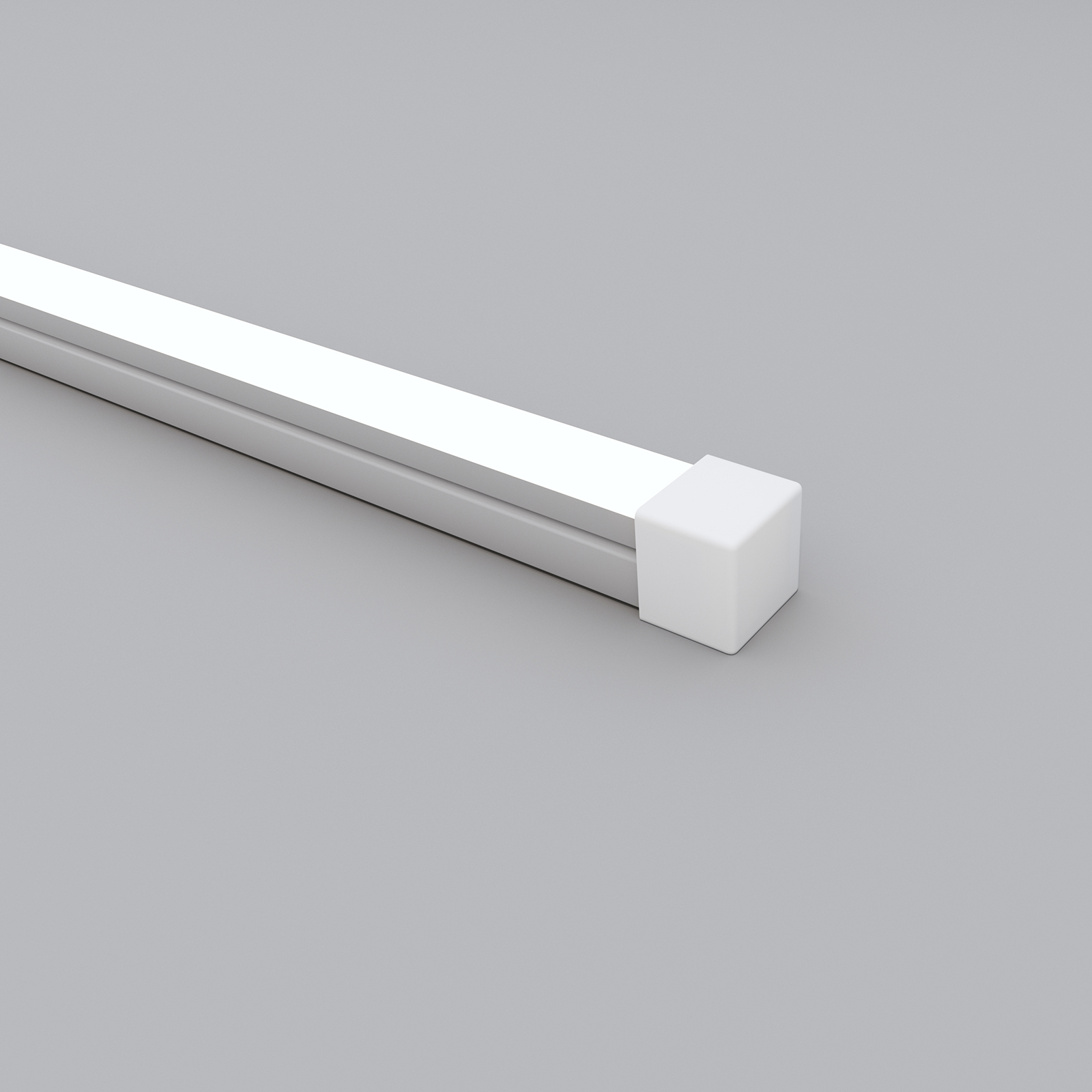

3D NeonFlex 10x10 End Cap

Silicon

NF-3D-10x10-SFC

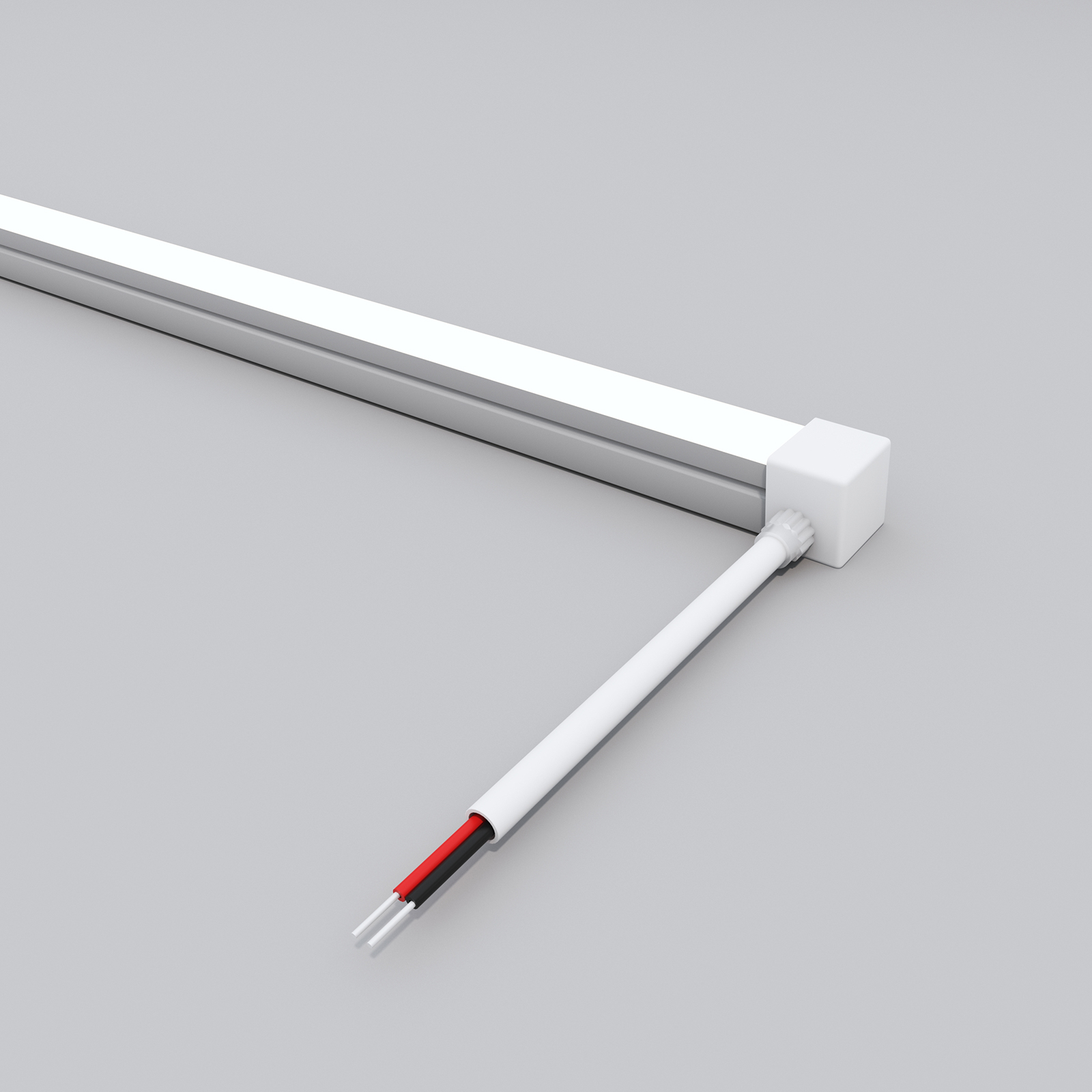

3D NeonFlex 10x10 Side Feed End Cap

Silicon

NF-3D-10x10-EFC

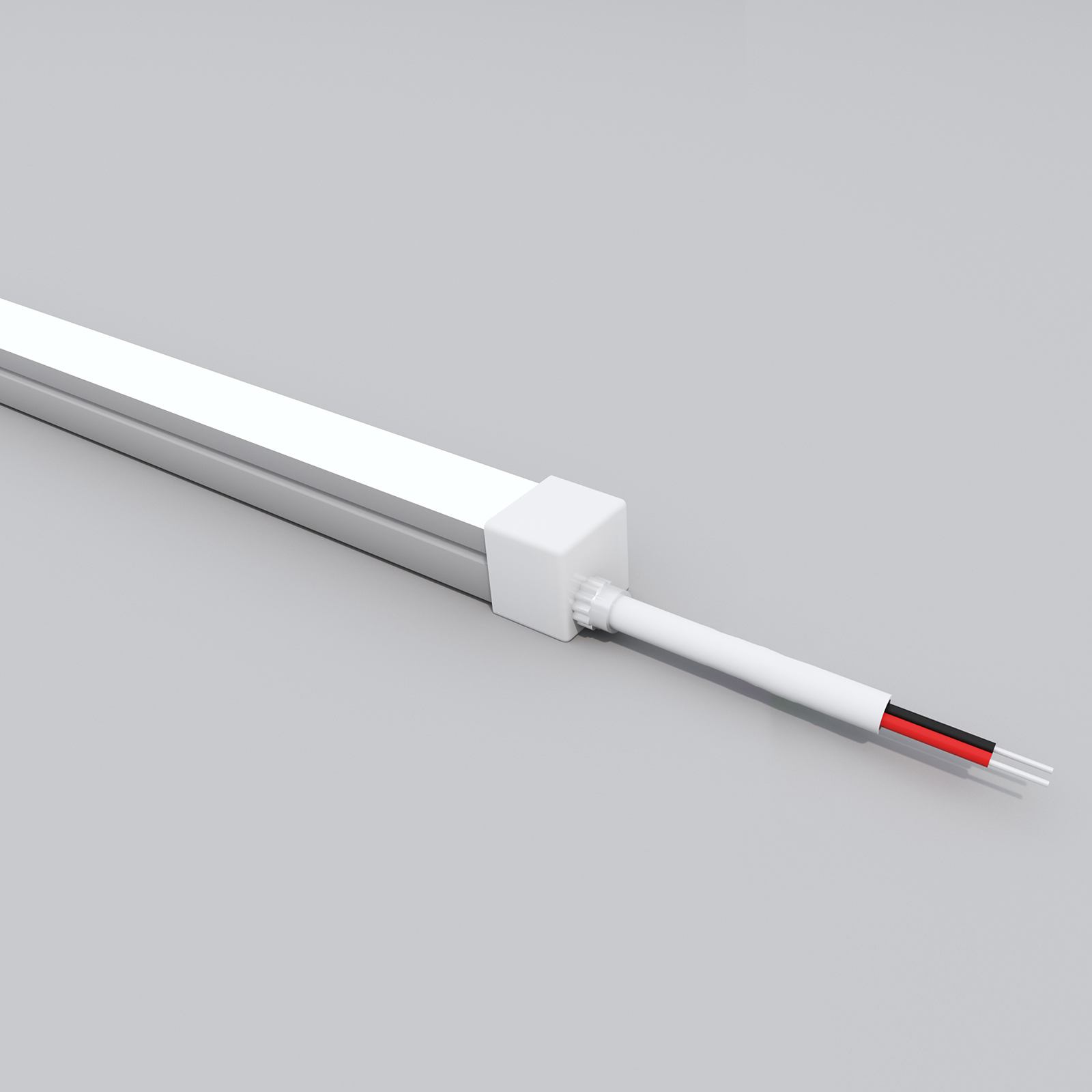

3D NeonFlex 10x10 Straight Feed End Cap

Silicon

3D 10x10 Accessories

NF-3D-10x10-MC,NF-3D-10x10-MP-2000,NF-3D-10x10-FP-1000,NF-3D-10x10-FP-2000,NF-3D-10x10-FP-3000,NF-3D-10x10-FP-4000,NF-3D-10x10-FP-5000

Code

Product Name

Material

Finish

NF-3D-10x10-FP-5000

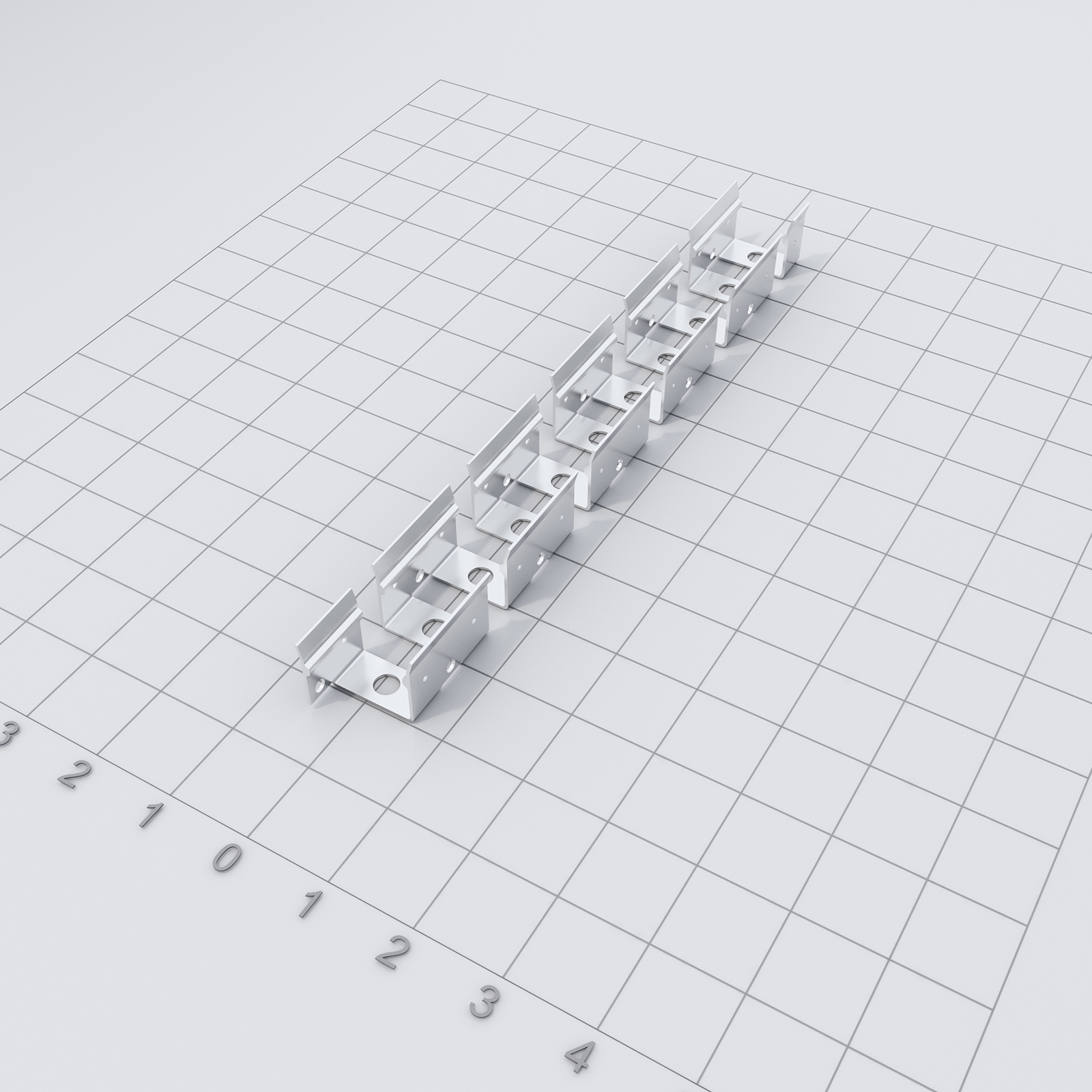

3D NeonFlex 10x10 Flexible Profile 5m

Stainless Steel

NF-3D-10x10-MC

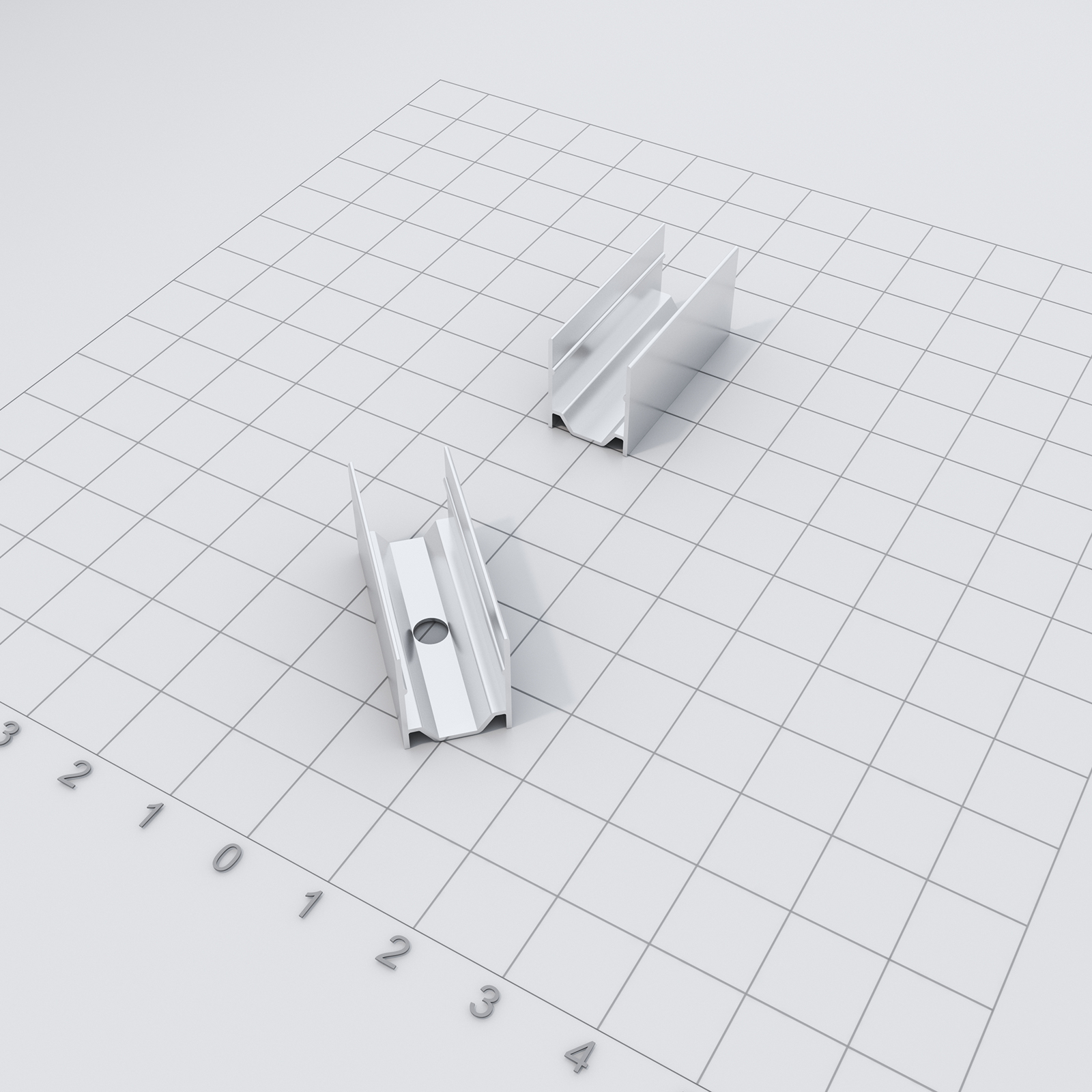

3D NeonFlex 10x10 Mounting Clip

Aluminium

NF-3D-10x10-MP-2000

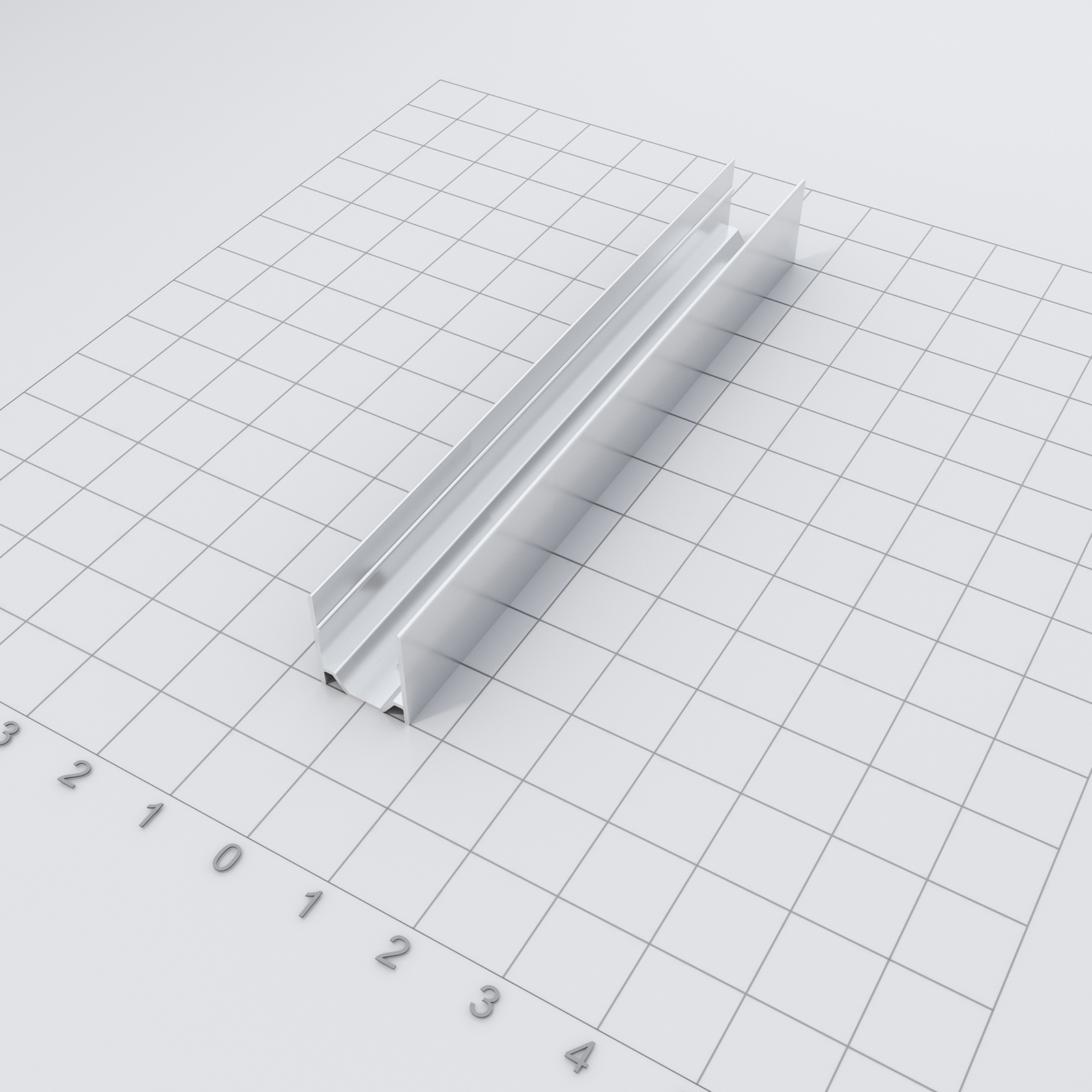

3D NeonFlex 10x10 Mounting Profile 2m

Aluminium

Downloads

Technical

DATASHEET

Photometrics

LDT / IES
