Linear Profile

Ares 50mm x 90mm Surface | Suspended Mounted Profile Ano Alu 3000mm

ARES-SS-A-3000

Surface
Suspended

Physical Specifications

LEDs/M
N/A
Width (mm)
50
Height (mm)
90
Length (mm)
3000
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
18
Material
Aluminium
Finish
Anodised Aluminium
Diffuser Transparency
N/A

Diffusers


Code
Product Name
Material
Transparency

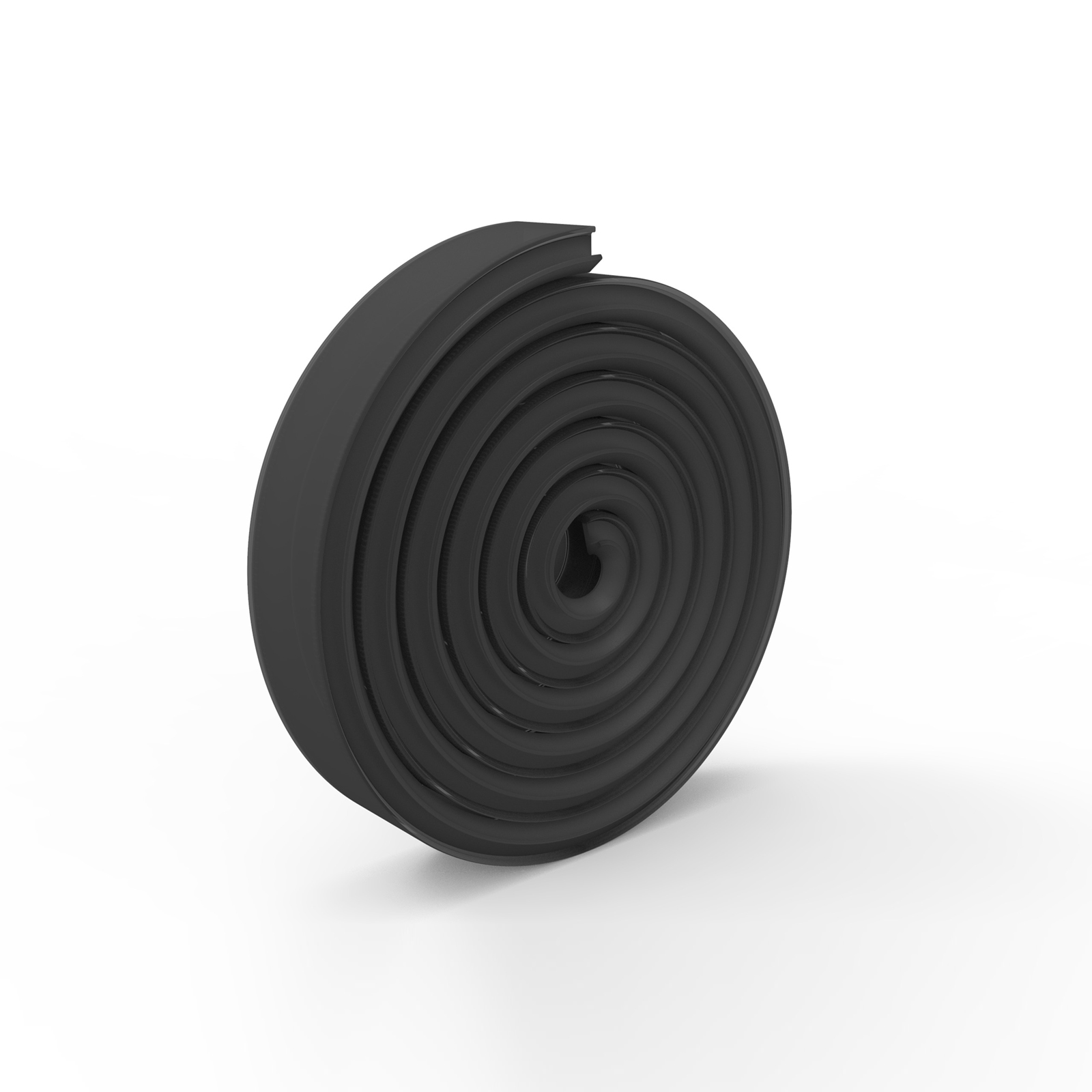

D26 Flexible Black 20000mm
D26-FB-20000
D26 Flexible Black 20000mm
PMMA
-

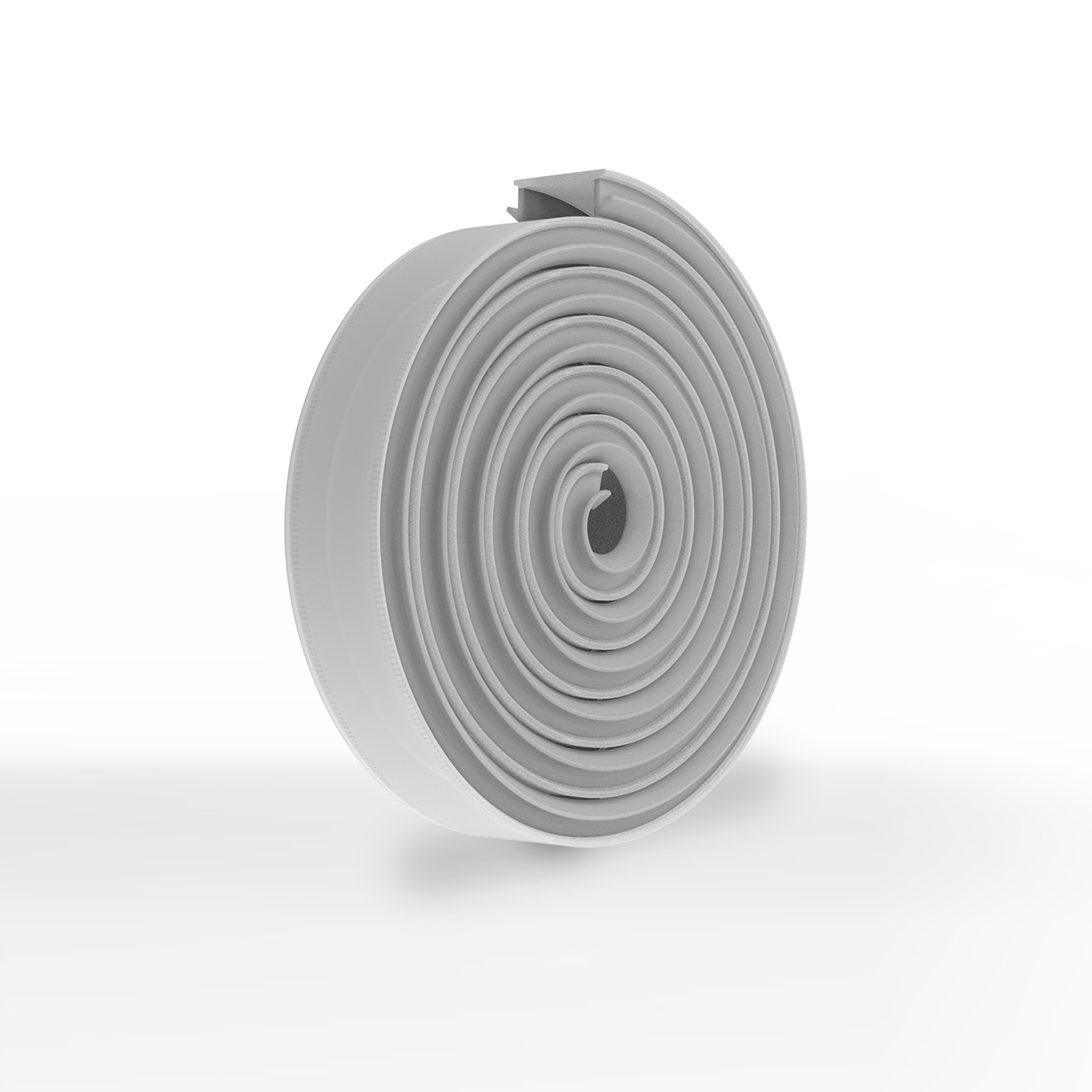

D26 Flexible Opal 20000mm
D26-FO-20000
D26 Flexible Opal 20000mm
PMMA
-
D26 Opal Diffuser 1000mm
D26-OD-1000
D26 Opal Diffuser 1000mm
PC
78
D26 Opal Diffuser 2000mm
D26-OD-2000
D26 Opal Diffuser 2000mm
PC
78
D26 Opal Diffuser 3000mm
D26-OD-3000
D26 Opal Diffuser 3000mm
PC
78
D50 Flexible Black 20000mm
D50-FB-20000
D50 Flexible Black 20000mm
PMMA
-
D50 Flexible Opal 20000mm
D50-FO-20000
D50 Flexible Opal 20000mm
PMMA
-
D50 Opal Diffuser 1000mm
D50-OD-1000
D50 Opal Diffuser 1000mm
PC
78
D50 Opal Diffuser 2000mm
D50-OD-2000
D50 Opal Diffuser 2000mm
PC
78
D50 Opal Diffuser 3000mm
D50-OD-3000
D50 Opal Diffuser 3000mm
PC
78

Components


Code
Product Name
Material
Finish
Ares End Cap Ano Alu
ARES-EC-A
Ares End Cap Ano Alu
Aluminium
Anodised Aluminium
Ares End Cap with Hole Ano Alu
ARES-ECH-A
Ares End Cap with Hole Ano Alu
Aluminium
Anodised Aluminium

Accessories


Code
Product Name
Material
Finish
ARES-HS
Ares Horizontal Support S2
Metal
-
ARES-IS
Ares Inline Support S2
Metal
-
ARES-IMC
Ares Internal Mounting Clip
Metal
-
ARES-MC
Ares Mounting Clip
Metal
-
ARES-SUS
Ares Suspension Cable
Stainless Steel
-
ARES-VS
Ares Vertical Support S2
Metal
-

Downloads

Technical
DATASHEET
Ares 50mm x 90mm Surface | Suspended Mounted Profile Ano Alu 3000mm

LED Flex Options

LED Flex
COF High Output 10m IP65
Wattage/M
| 11
Colour Temp
| 2700,3000,4000
Width (mm)
| 12
Pitch (mm)
| 2
Cutting Intervals (mm)
| 41.67
COF Plus
Wattage/M
| 14.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 2.08
Cutting Intervals (mm)
| 50
COF Plus IP65
Wattage/M
| 14.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 2.08
Cutting Intervals (mm)
| 50
COF RGB
Wattage/M
| 15
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 1.19
Cutting Intervals (mm)
| 25
COF RGB IP65
Wattage/M
| 15
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 1.19
Cutting Intervals (mm)
| 25
COF RGBW
Wattage/M
| 18
Colour Temp
| RGB - 3000
Width (mm)
| 12
Pitch (mm)
| 1.49
Cutting Intervals (mm)
| 83.3
COF RGBW IP65
Wattage/M
| 18
Colour Temp
| RGB - 3000
Width (mm)
| 12
Pitch (mm)
| 1.49
Cutting Intervals (mm)
| 83.3
DMX RGB
Wattage/M
| 16.8
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 11.93
Cutting Intervals (mm)
| 83.5
DMX RGB IP65
Wattage/M
| 16.8
Colour Temp
| RGB
Width (mm)
| 12
Pitch (mm)
| 11.93
Cutting Intervals (mm)
| 83.5
Effi High Output
Wattage/M
| 9.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi High Output IP65
Wattage/M
| 9.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Plus
Wattage/M
| 14.4
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Plus High Output
Wattage/M
| 19.2
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 4.76
Cutting Intervals (mm)
| 33.3
Effi Plus IP65
Wattage/M
| 14.4
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Standard
Wattage/M
| 7.2
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 14.29
Cutting Intervals (mm)
| 100
Effi Standard IP65
Wattage/M
| 7.2
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 14.29
Cutting Intervals (mm)
| 100
Ex 10m High Output
Wattage/M
| 12
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Ex 40m Low Output
Wattage/M
| 2.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 16.6
Cutting Intervals (mm)
| 100
Ex 40m Low Output IP65
Wattage/M
| 2.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 12
Pitch (mm)
| 16.6
Cutting Intervals (mm)
| 100
RGB
Wattage/M
| 17.1
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 11.9
Cutting Intervals (mm)
| 71.4
RGB IP65
Wattage/M
| 17.1
Colour Temp
| RGB
Width (mm)
| 12
Pitch (mm)
| 11.9
Cutting Intervals (mm)
| 71.4
RGBW
Wattage/M
| 26.9
Colour Temp
| RGB - 3000
Width (mm)
| 12
Pitch (mm)
| 11.9
Cutting Intervals (mm)
| 71.4
RGBW IP65
Wattage/M
| 26.9
Colour Temp
| RGB - 3000
Width (mm)
| 15
Pitch (mm)
| 11.9
Cutting Intervals (mm)
| 71.4
Tuneable White COF
Wattage/M
| 13.6
Colour Temp
| 2500-6500
Width (mm)
| 10
Pitch (mm)
| 1.66
Cutting Intervals (mm)
| 26.32
Tuneable White COF IP65
Wattage/M
| 13.6
Colour Temp
| 2500-6500
Width (mm)
| 12
Pitch (mm)
| 1.66
Cutting Intervals (mm)
| 26.32
White Line IP65
Wattage/M
| 15
Colour Temp
| 2700,3000,4000
Width (mm)
| 10.5
Pitch (mm)
| 3.57
Cutting Intervals (mm)
| 25
