Performance Specifications
Light Source
LED
Voltage
24
Wattage/M
7.2
Colour Temp
4000
Lumens / M
147
Efficacy
20
CRI
90
MacAdams Step
3
Beam Angle
113
LED Lifetime
L70 B10 50,000Hrs
IP Rating
65
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI
Physical Specifications
LEDs/M
N/A
Width (mm)
4
Height (mm)
10
Length (mm)
5020
Cutting Intervals (mm)
50
Max Single Run (mm)
5020
Max Flex Width (mm)
N/A
Material
Silicon
Finish
N/A
Diffuser Transparency
20
Components
Code
Product Name
Material
Finish
NF-SB-4x10-EC

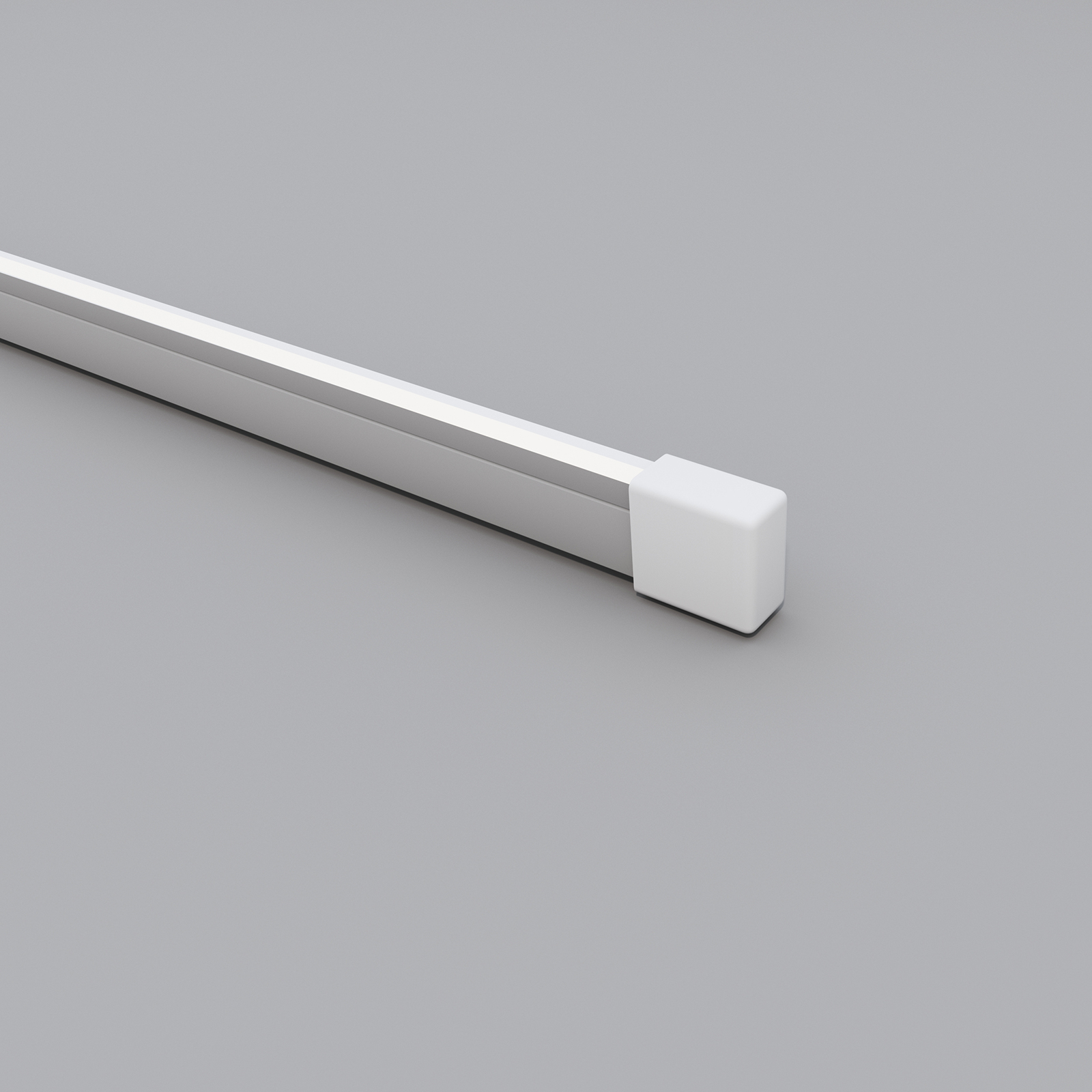

Side Bend NeonFlex 4x10 End Cap
Silicon
Transparent
NF-SB-4x10-EFC

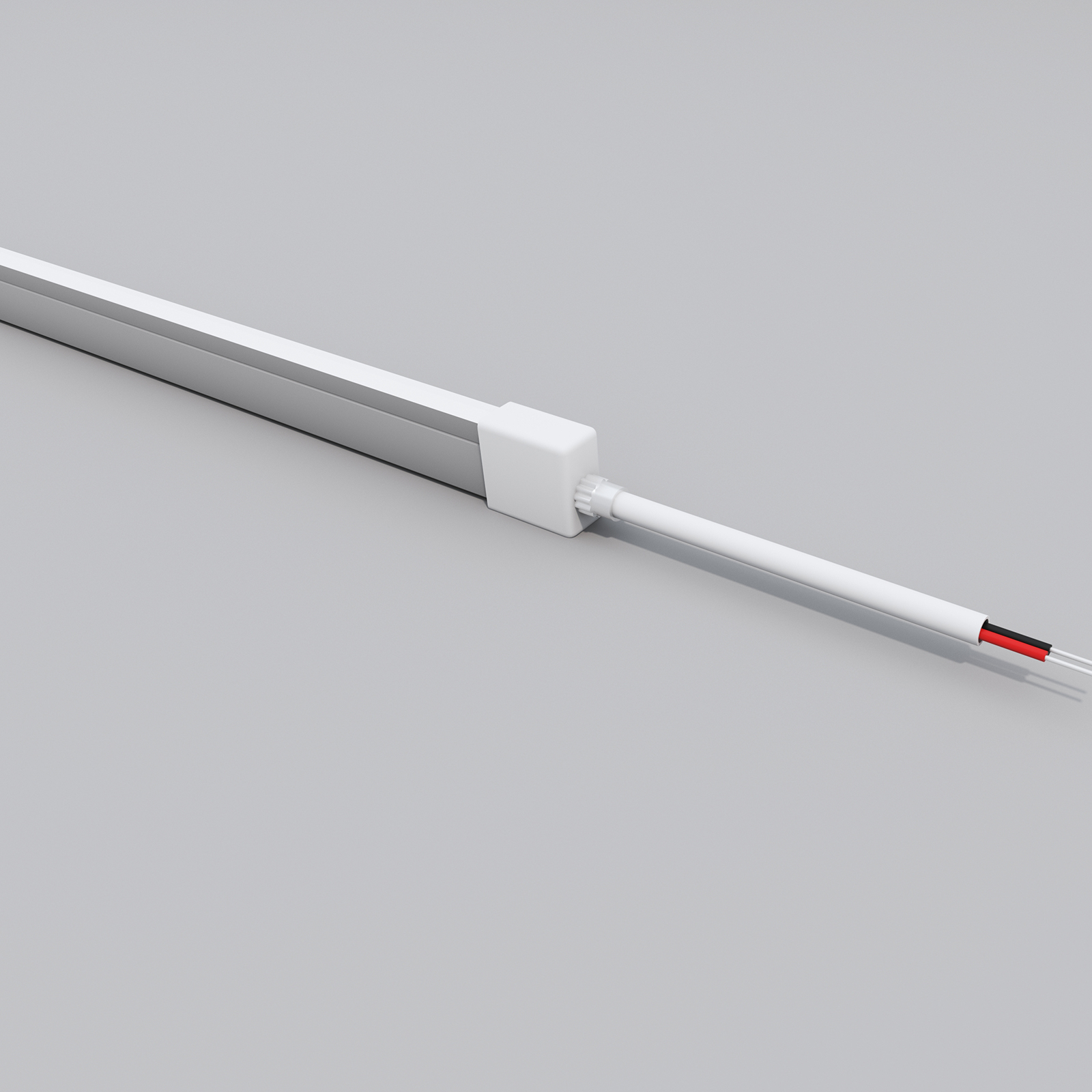

Side Bend NeonFlex 4x10 Straight Feed End Cap
Silicon
Transparent
Accessories
Code
Product Name
Material
Finish
NF-SB-4x10-MC

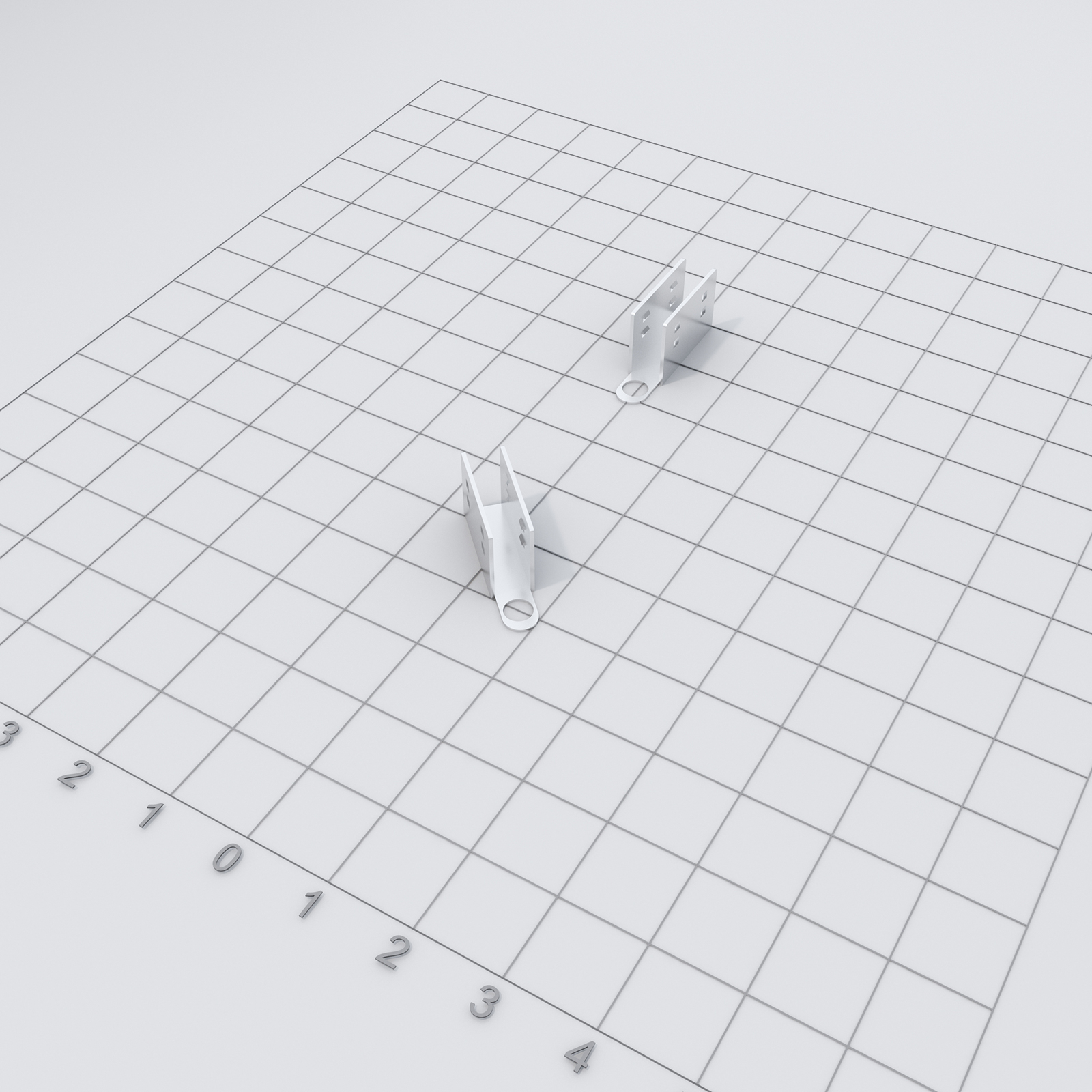

Side Bend NeonFlex 4x10 Mounting Clip
Metal
-
NF-SB-4x10-MP-2000

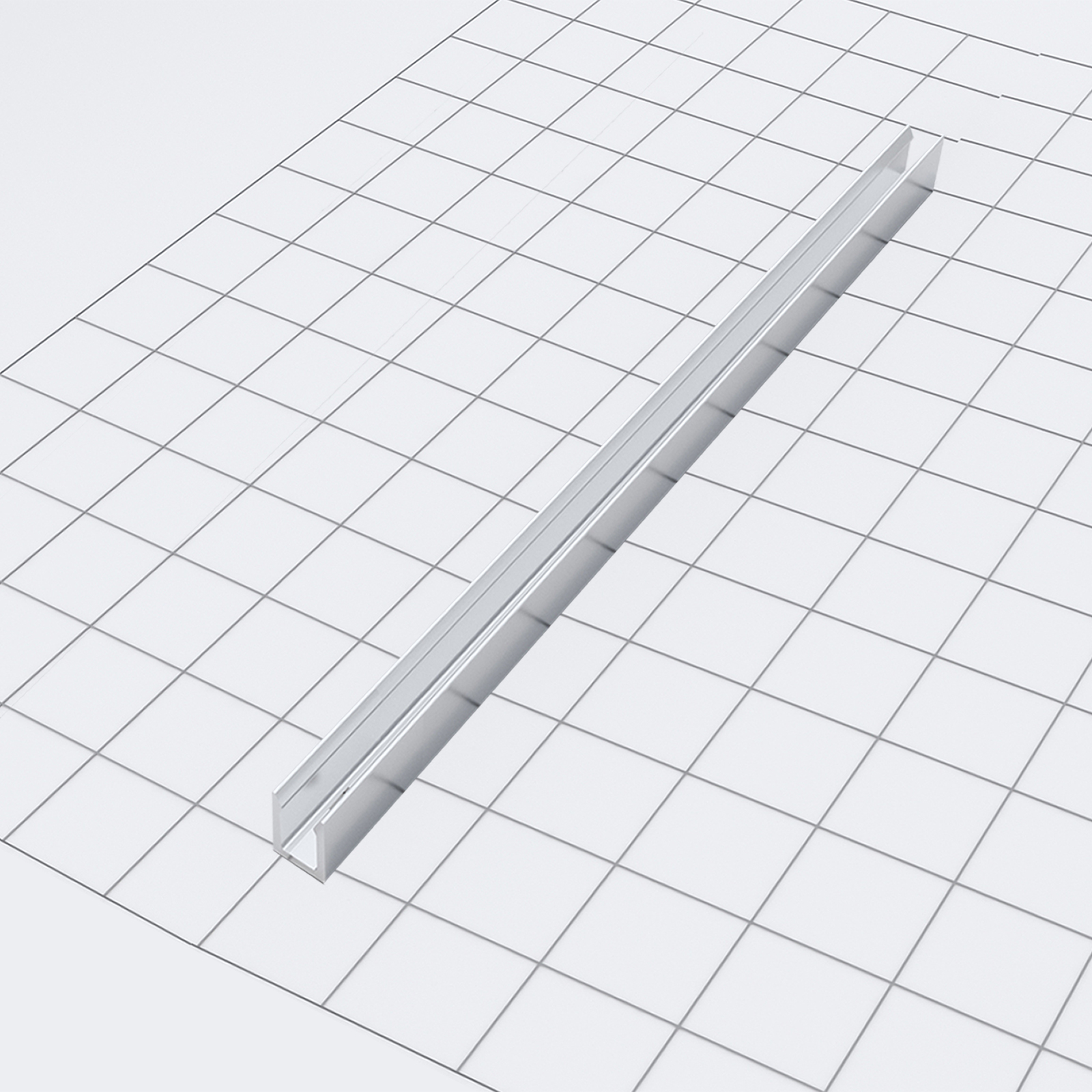

Side Bend NeonFlex 4x10 Mounting Profile 2m
Aluminium
Matt Silver
Downloads
Technical
