Performance Specifications
Light Source
LED
Voltage
24
Wattage/M
9.6
Colour Temp
3000
Lumens / M
520
Efficacy
36
CRI
90
MacAdams Step
3
Beam Angle
115
LED Lifetime
L70 B10 50,000Hrs
IP Rating
65
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI
Physical Specifications
LEDs/M
N/A
Width (mm)
15
Height (mm)
15
Length (mm)
5020
Cutting Intervals (mm)
50
Max Single Run (mm)
20000
Max Flex Width (mm)
N/A
Material
Silicon
Finish
N/A
Diffuser Transparency
N/A
Components
Code
Product Name
Material
Finish
NF-TB-15x15-EC

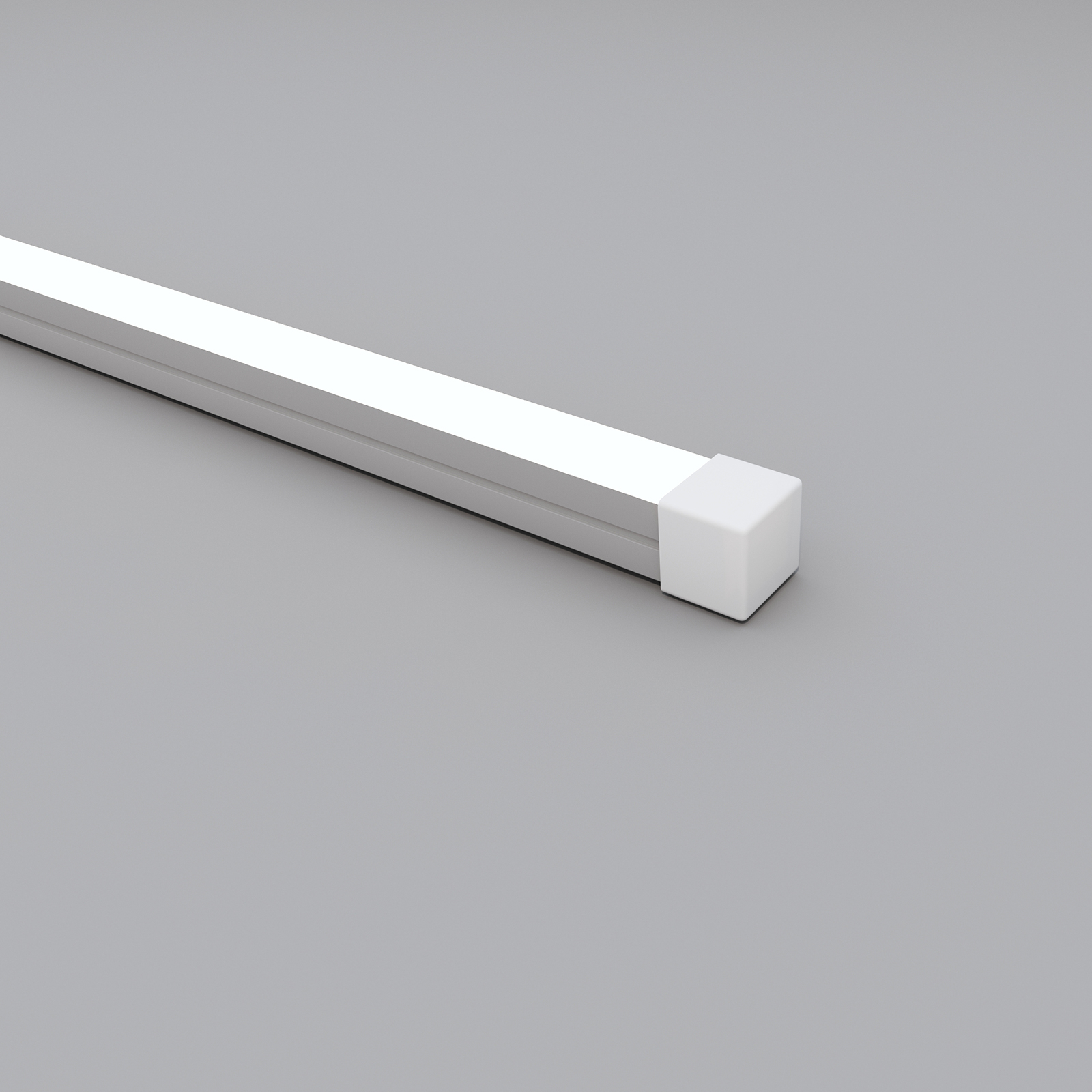

Top Bend NeonFlex 15x15 End Cap
Silicon
Transparent
NF-TB-15x15-RFC
Top Bend NeonFlex 15x15 Rear Feed End Cap
Silicon
Transparent
NF-TB-15x15-SFC
Top Bend NeonFlex 15x15 Side Feed End Cap
Silicon
Transparent
NF-TB-15x15-EFC

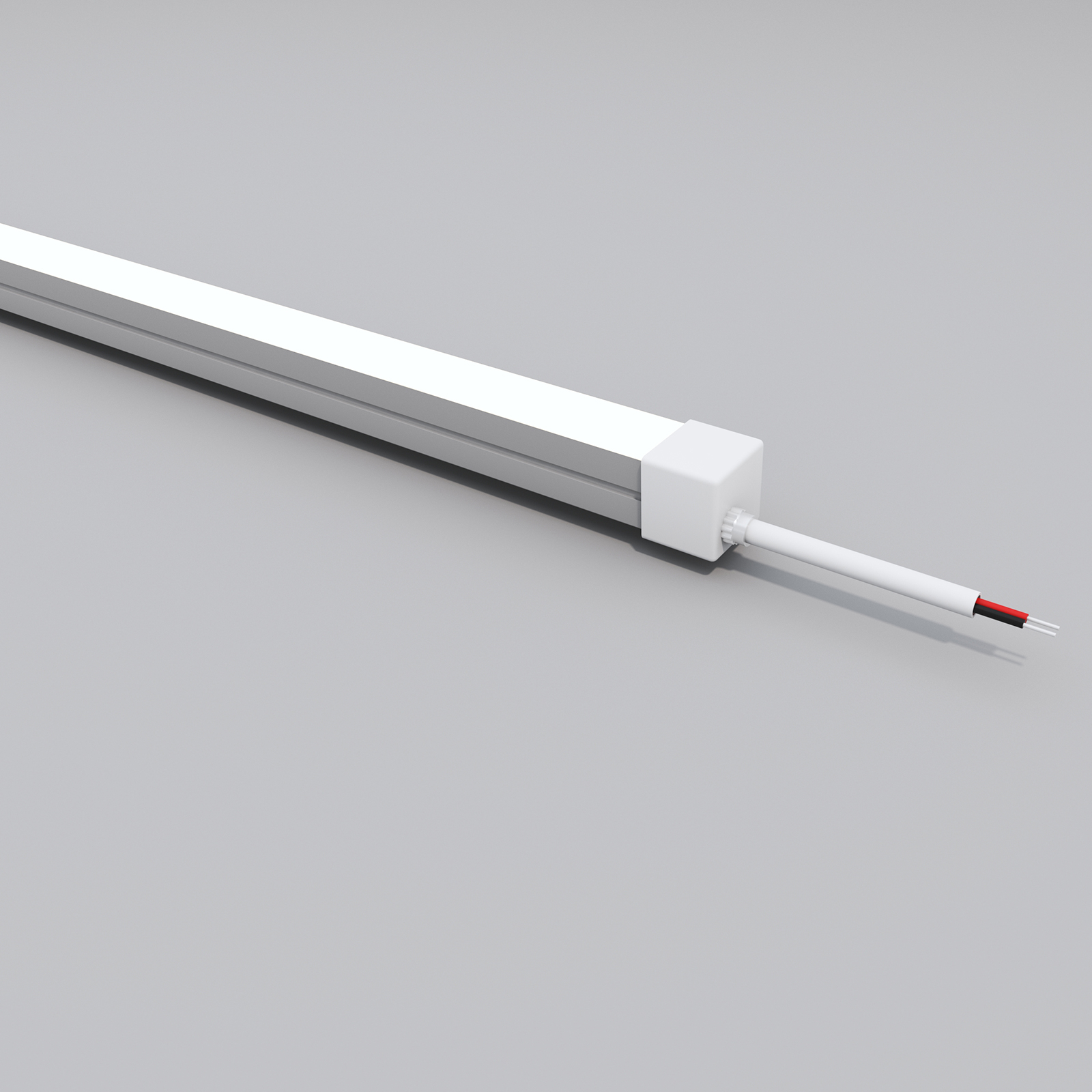

Top Bend NeonFlex 15x15 Straight Feed End Cap
Silicon
Transparent
Accessories
Code
Product Name
Material
Finish
NF-TB-15x15-FP-5000
Top Bend NeonFlex 15x15 Flexible Profile 5m
Stainless Steel
Silver
NF-TB-15x15-MC

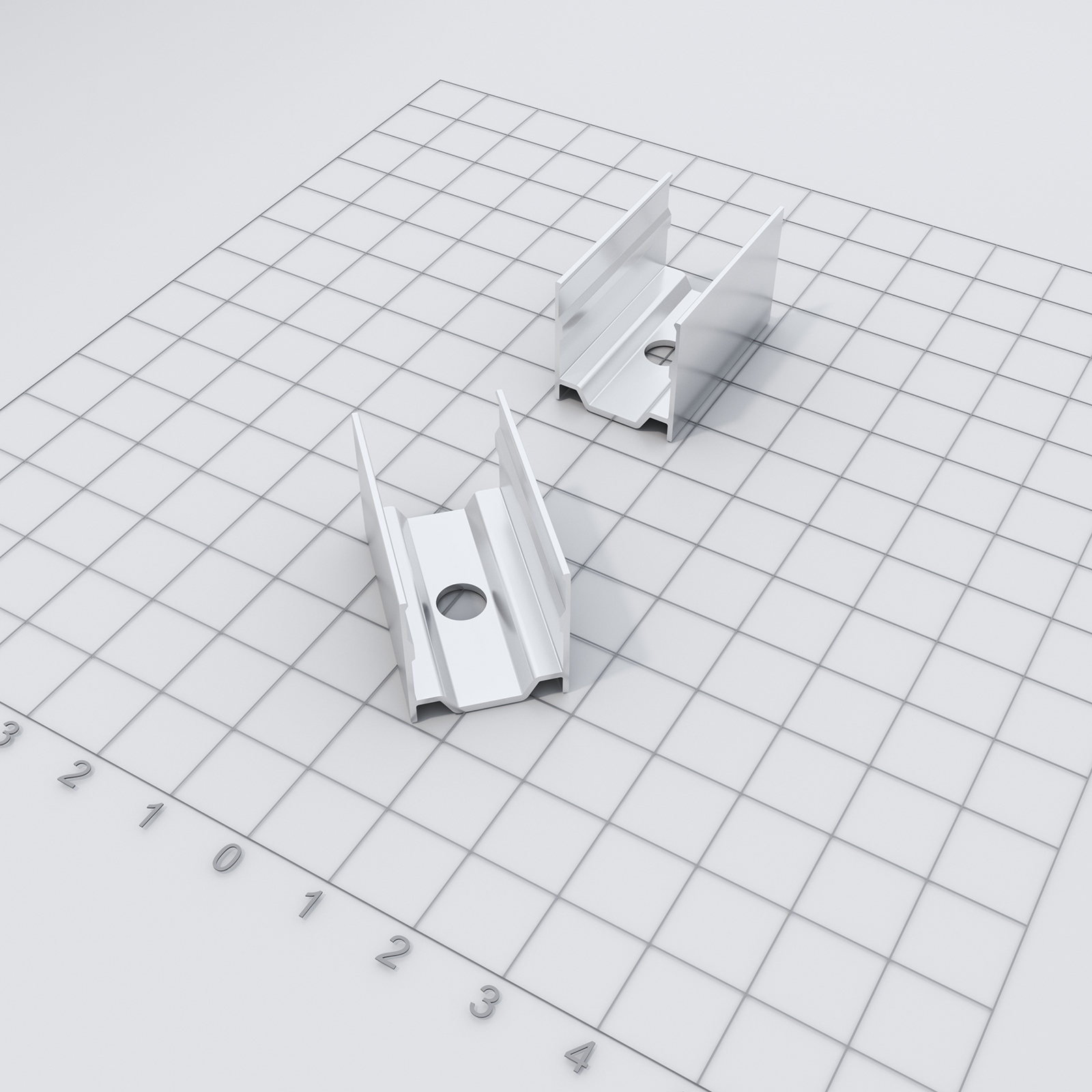

Top Bend NeonFlex 15x15 Mounting Clips
Aluminium
Matt Silver
NF-TB-15x15-MP-2000
Top Bend NeonFlex 15x15 Mounting Profile 2m
Aluminium
Matt Silver
