Linear Profile

Hugo

Recessed

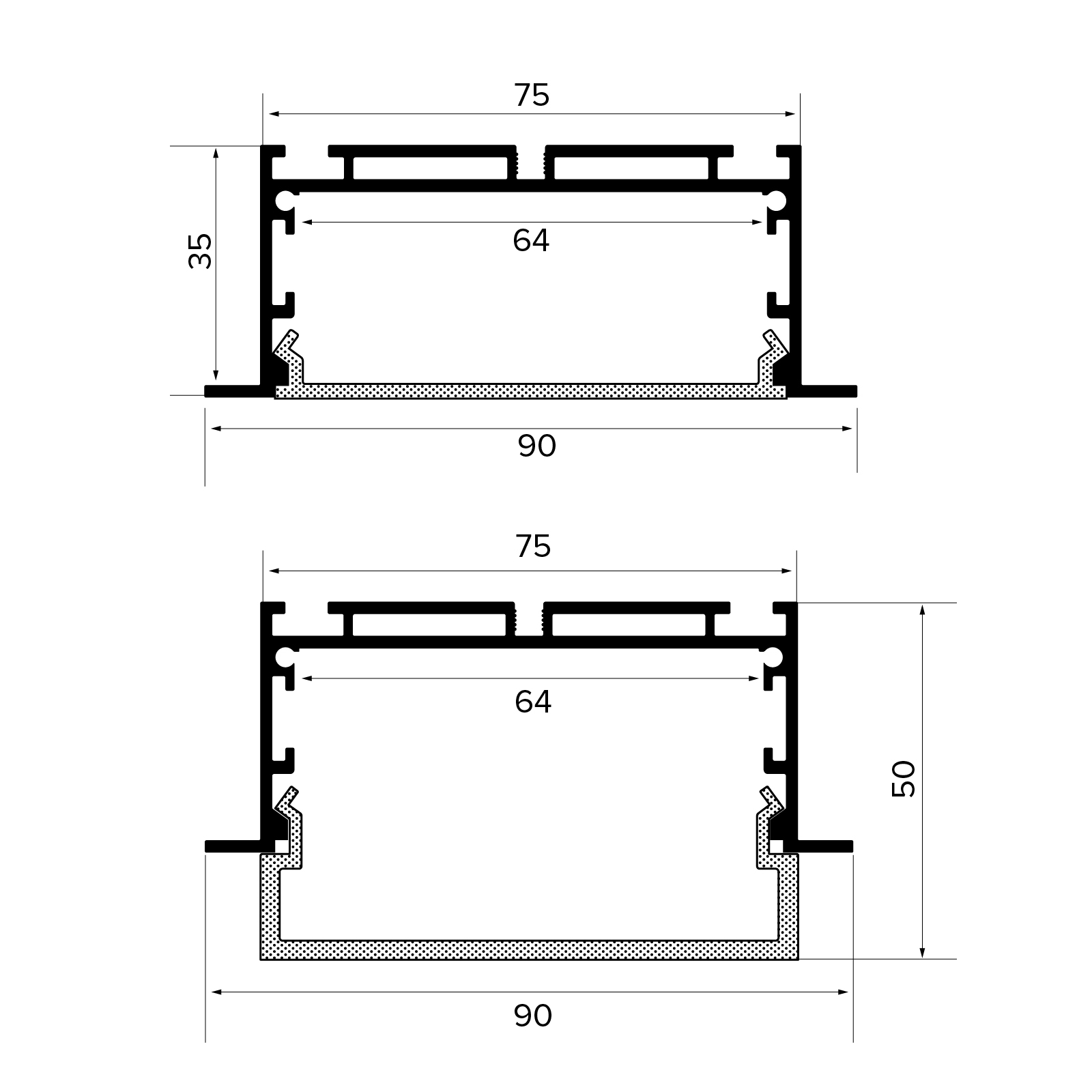

Physical Specifications

LEDs/M
N/A
Width (mm)
75
Height (mm)
35
Length (mm)
1000
2000
3000
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
64
Material
Aluminium
Finish
Anodised Aluminium,Black,White
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Length (mm)
Finish
HUGO-R-A-1000
Hugo 75mm x 35mm Recessed Profile Ano Alu 1000mm
1000
Anodised Aluminium
HUGO-R-A-2000
Hugo 75mm x 35mm Recessed Profile Ano Alu 2000mm
2000
Anodised Aluminium
HUGO-R-A-3000
Hugo 75mm x 35mm Recessed Profile Ano Alu 3000mm
3000
Anodised Aluminium
HUGO-R-B-1000
Hugo 75mm x 35mm Recessed Profile Black 1000mm
1000
Black
HUGO-R-B-2000
Hugo 75mm x 35mm Recessed Profile Black 2000mm
2000
Black
HUGO-R-B-3000
Hugo 75mm x 35mm Recessed Profile Black 3000mm
3000
Black
HUGO-R-W-1000
Hugo 75mm x 35mm Recessed Profile White 1000mm
1000
White
HUGO-R-W-2000
Hugo 75mm x 35mm Recessed Profile White 2000mm
2000
White
HUGO-R-W-3000
Hugo 75mm x 35mm Recessed Profile White 3000mm
3000
White

Diffusers


Code
Product Name
Material
Transparency
D75 Flexible Black 20000mm
D75-FB-20000
D75 Flexible Black 20000mm
PMMA
-
D75 Flexible Opal 20000mm
D75-FO-20000
D75 Flexible Opal 20000mm
PMMA
-
D75 Opal Diffuser 1000mm
D75-OD-1000
D75 Opal Diffuser 1000mm
PMMA
-
D75 Opal Diffuser 2000mm
D75-OD-2000
D75 Opal Diffuser 2000mm
PMMA
-
D75 Opal Diffuser 3000mm
D75-OD-3000
D75 Opal Diffuser 3000mm
PMMA
-
D75 Opal Drop Diffuser 1000mm
D75-ODD-1000
D75 Opal Drop Diffuser 1000mm
PMMA
-
D75 Opal Drop Diffuser 2000mm
D75-ODD-2000
D75 Opal Drop Diffuser 2000mm
PMMA
-
D75 Opal Drop Diffuser 3000mm
D75-ODD-3000
D75 Opal Drop Diffuser 3000mm
PMMA
-

Hugo Components

HUGO-EC-A,HUGO-ECH-A,HUGO-EC-A,HUGO-ECH-A,HUGO-EC-B,HUGO-ECH-B,HUGO-ECD-B,HUGO-ECHD-B,HUGO-EC-W,HUGO-ECH-W,HUGO-ECD-W,HUGO-ECHD-W

Code
Product Name
Material
Finish
Hugo End Cap Black
HUGO-EC-B
Hugo End Cap Black
PP
Black
Hugo End Cap Drop Diffuser Black
HUGO-ECD-B
Hugo End Cap Drop Diffuser Black
PP
Black
Hugo End Cap Drop Diffuser White
HUGO-ECD-W
Hugo End Cap Drop Diffuser White
PP
White
Hugo End Cap Grey
HUGO-EC-A
Hugo End Cap Grey
PP
Grey
Hugo End Cap White
HUGO-EC-W
Hugo End Cap White
PP
White
Hugo End Cap with Hole Black
HUGO-ECH-B
Hugo End Cap with Hole Black
PP
Black
Hugo End Cap with Hole Drop Diffuser Black
HUGO-ECHD-B
Hugo End Cap with Hole Drop Diffuser Black
PP
Black
Hugo End Cap with Hole Drop Diffuser White
HUGO-ECHD-W
Hugo End Cap with Hole Drop Diffuser White
PP
White
Hugo End Cap with Hole Grey
HUGO-ECH-A
Hugo End Cap with Hole Grey
PP
Grey
Hugo End Cap with Hole White
HUGO-ECH-W
Hugo End Cap with Hole White
PP
White

Hugo Accessories

HUGO-MC,HUGO-IS,HUGO-HS,HUGO-VS

Code
Product Name
Material
Finish
HUGO-HS
Hugo Horizontal Support S1
Metal
-
HUGO-IS
Hugo Inline Support S1
Metal
-
HUGO-MC
Hugo Mounting Clip
Metal
-
HUGO-VS
Hugo Vertical Support S1
Metal
-

Downloads

Technical
DATASHEET
CAD
2D
Hugo

LED Flex Options

LED Flex
COF High Output 10m
Wattage/M
| 11
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 2
Cutting Intervals (mm)
| 41.67
COF RGB
Wattage/M
| 15
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 1.19
Cutting Intervals (mm)
| 25
COF RGBW
Wattage/M
| 18
Colour Temp
| RGB - 3000
Width (mm)
| 12
Pitch (mm)
| 1.49
Cutting Intervals (mm)
| 83.3
DMX RGB
Wattage/M
| 16.8
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 11.93
Cutting Intervals (mm)
| 83.5
Effi High Output
Wattage/M
| 9.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Standard
Wattage/M
| 7.2
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 14.29
Cutting Intervals (mm)
| 100
Ex 10m High Output
Wattage/M
| 12
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Ex 40m Low Output
Wattage/M
| 2.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 16.6
Cutting Intervals (mm)
| 100
RGB
Wattage/M
| 17.1
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 11.9
Cutting Intervals (mm)
| 71.4
RGBW
Wattage/M
| 26.9
Colour Temp
| RGB - 3000
Width (mm)
| 12
Pitch (mm)
| 11.9
Cutting Intervals (mm)
| 71.4
Tuneable White COF
Wattage/M
| 13.6
Colour Temp
| 2500-6500
Width (mm)
| 10
Pitch (mm)
| 1.66
Cutting Intervals (mm)
| 26.32
