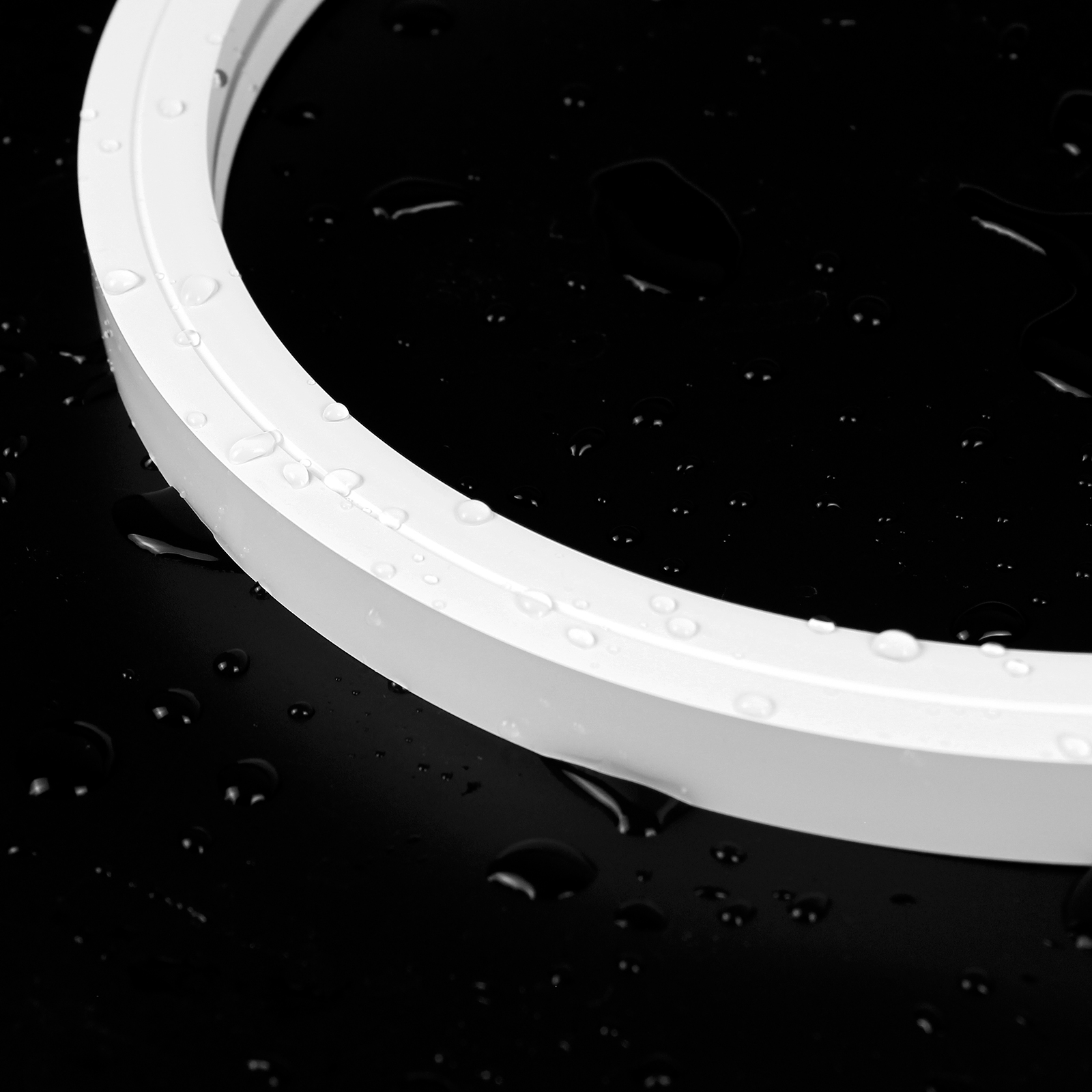

Neon Flex

Top Bend 16x16

Neon Flex
Top Bend
Top Bend 16x16

Performance Specifications

Light Source
LED
Voltage
24
Wattage/M
15.3
CRI
90
MacAdams Step
N/A
Beam Angle
115
LED Lifetime
L70 B10 50,000Hrs
IP Rating
65
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI

Physical Specifications

LEDs/M
N/A
Width (mm)
16
Height (mm)
16
Length (mm)
5005
Pitch (mm)
N/A
Cutting Intervals (mm)
62.5
Max Single Run (mm)
5000
Max Flex Width (mm)
N/A
Material
Silicon
Diffuser Transparency
61

Technical Specifications

Code
Product Name
Colour Temp
Lumens / M
Efficacy
NF-TB-16x16-24V-15.3W-RGBW-IP65
Top Bend NeonFlex 16x16 15.3W RGBW IP65
RGBW
190
12

Top Bend 16x16 Components

NF-TB-16x16-EFC,NF-TB-16x16-SFC,NF-TB-16x16-RFC,NF-TB-16x16-EC

Code
Product Name
Material
Finish

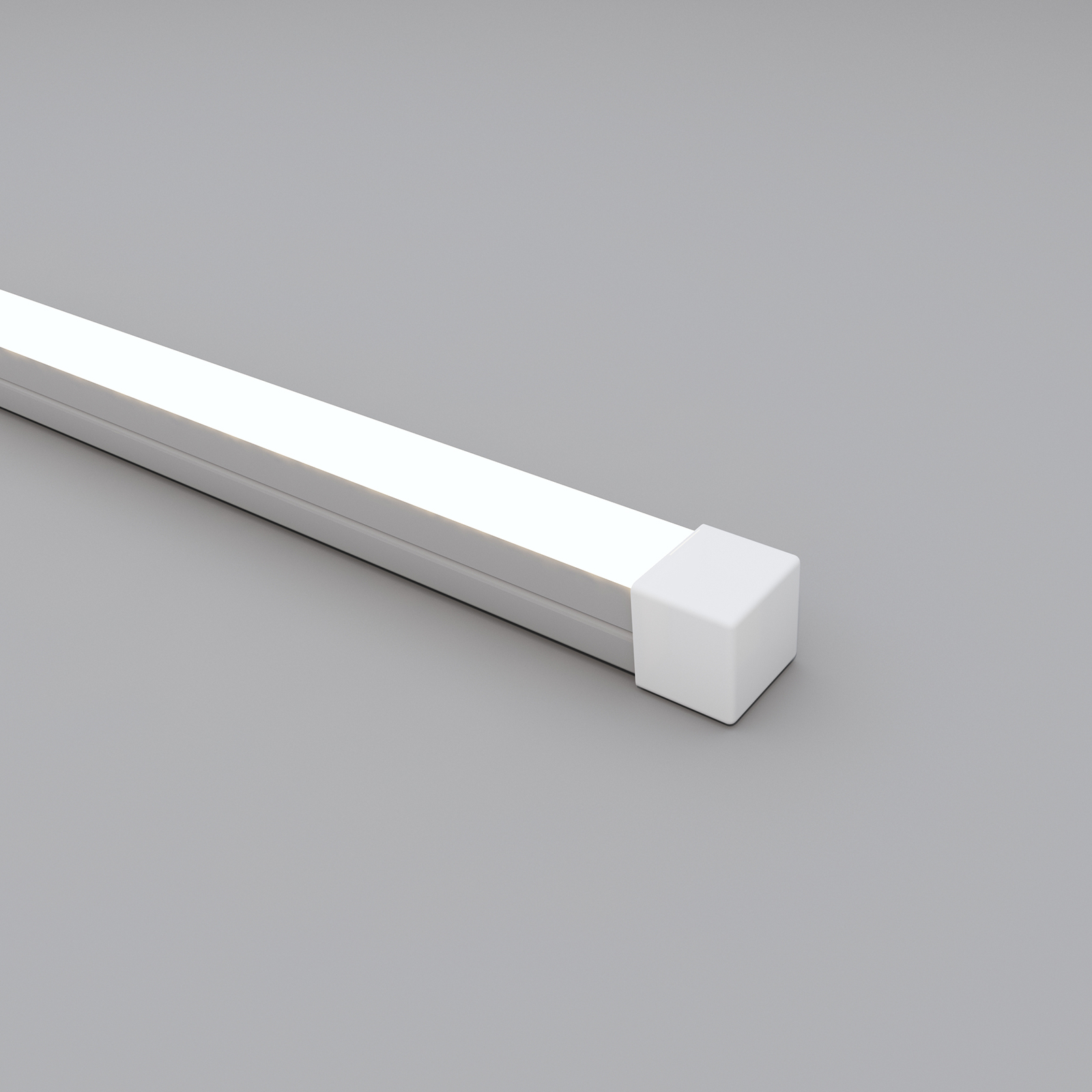

Top Bend NeonFlex 16x16 End Cap
NF-TB-16x16-EC
Top Bend NeonFlex 16x16 End Cap
Silicon
Transparent
Top Bend NeonFlex 16x16 End Feeder Cap
NF-TB-16x16-EFC
Top Bend NeonFlex 16x16 End Feeder Cap
Silicon
Transparent

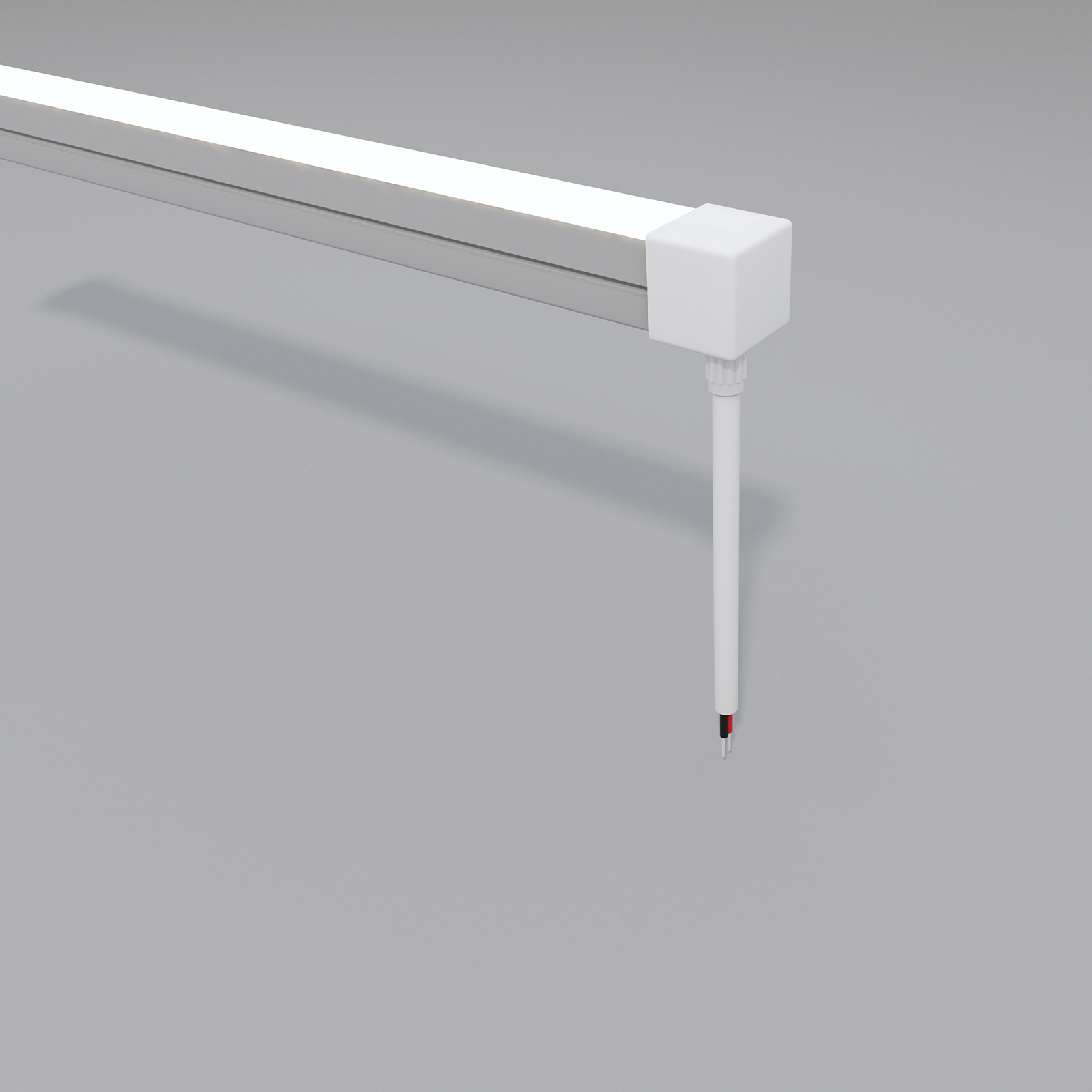

Top Bend NeonFlex 16x16 Rear Feeder Cap
NF-TB-16x16-RFC
Top Bend NeonFlex 16x16 Rear Feeder Cap
Silicon
Transparent
Top Bend NeonFlex 16x16 Side Feeder Cap
NF-TB-16x16-SFC
Top Bend NeonFlex 16x16 Side Feeder Cap
Silicon
Transparent

Top Bend 16x16 Accessories

NF-TB-16x16-MC,NF-TB-16x16-MP-2000,NF-TB-16x16-FP-5000

Code
Product Name
Material
Finish
NF-TB-16x16-FP-5000
Top Bend NeonFlex 16x16 Flexible Profile 5m
Stainless Steel
Silver
NF-TB-16x16-MC
Top Bend NeonFlex 16x16 Mounting Clip
Aluminium
Matt Silver
NF-TB-16x16-MP-2000

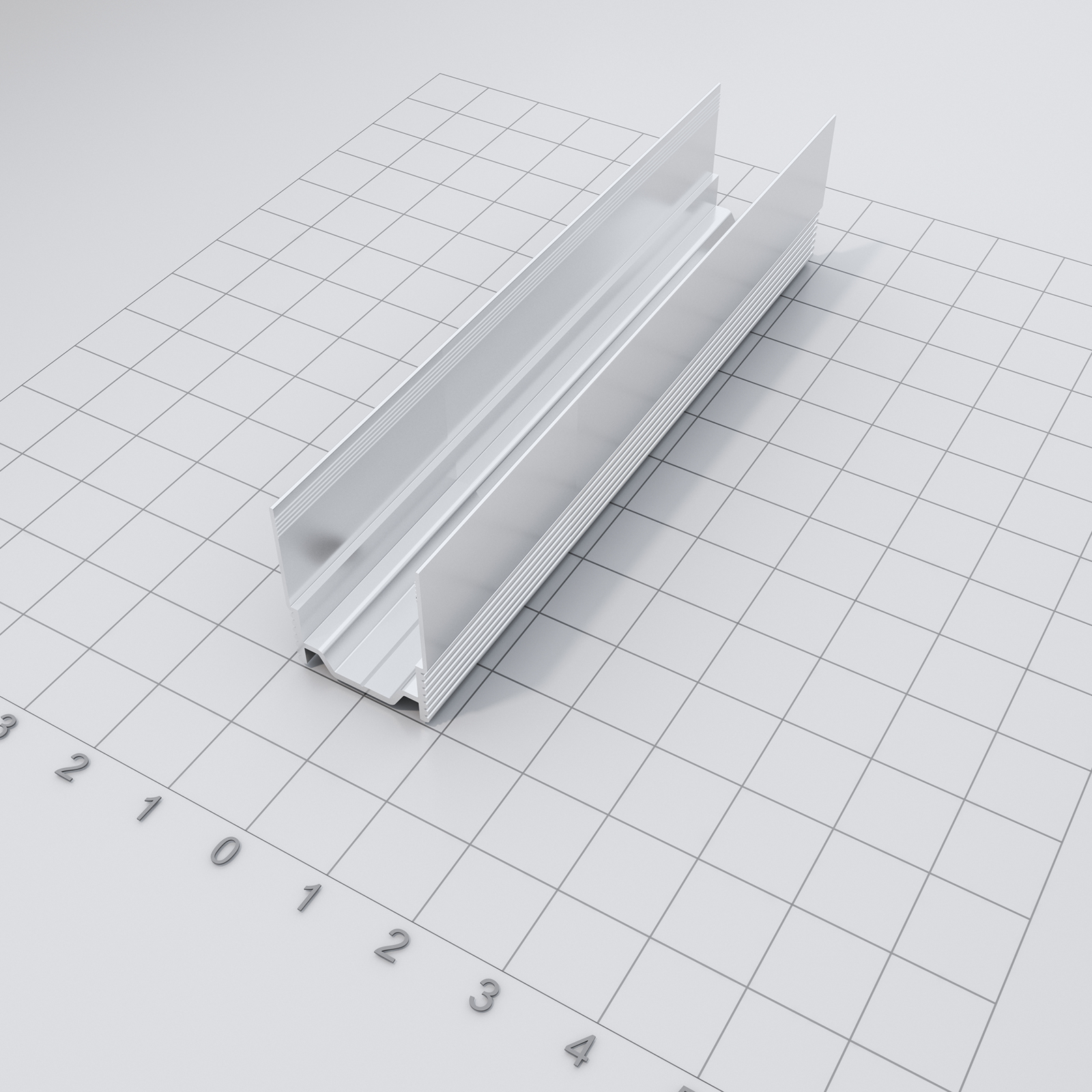

Top Bend NeonFlex 16x16 Mounting Profile 2m
Aluminium
Matt Silver

Downloads

Technical
DATASHEET
Top Bend 16x16
