Neon Flex

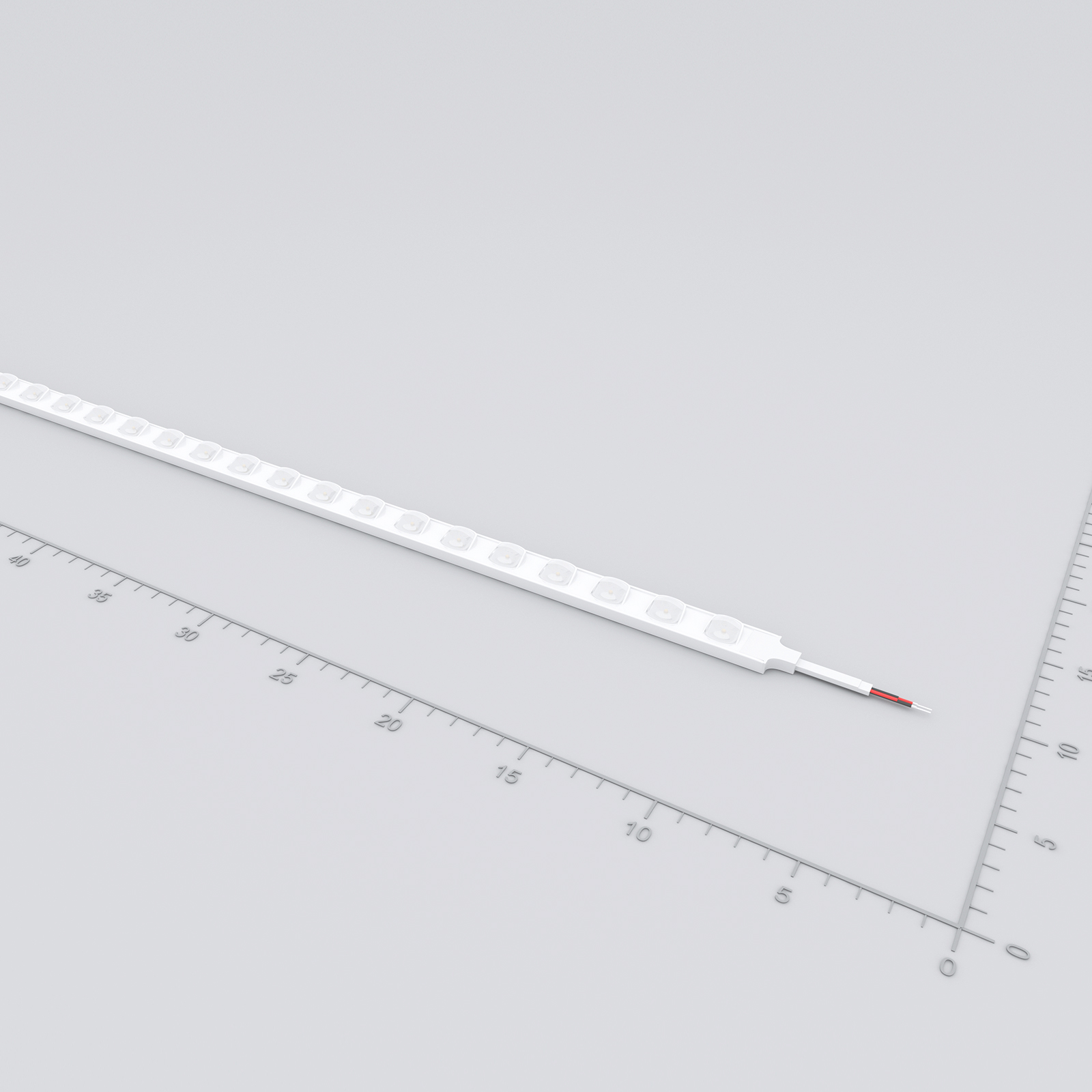

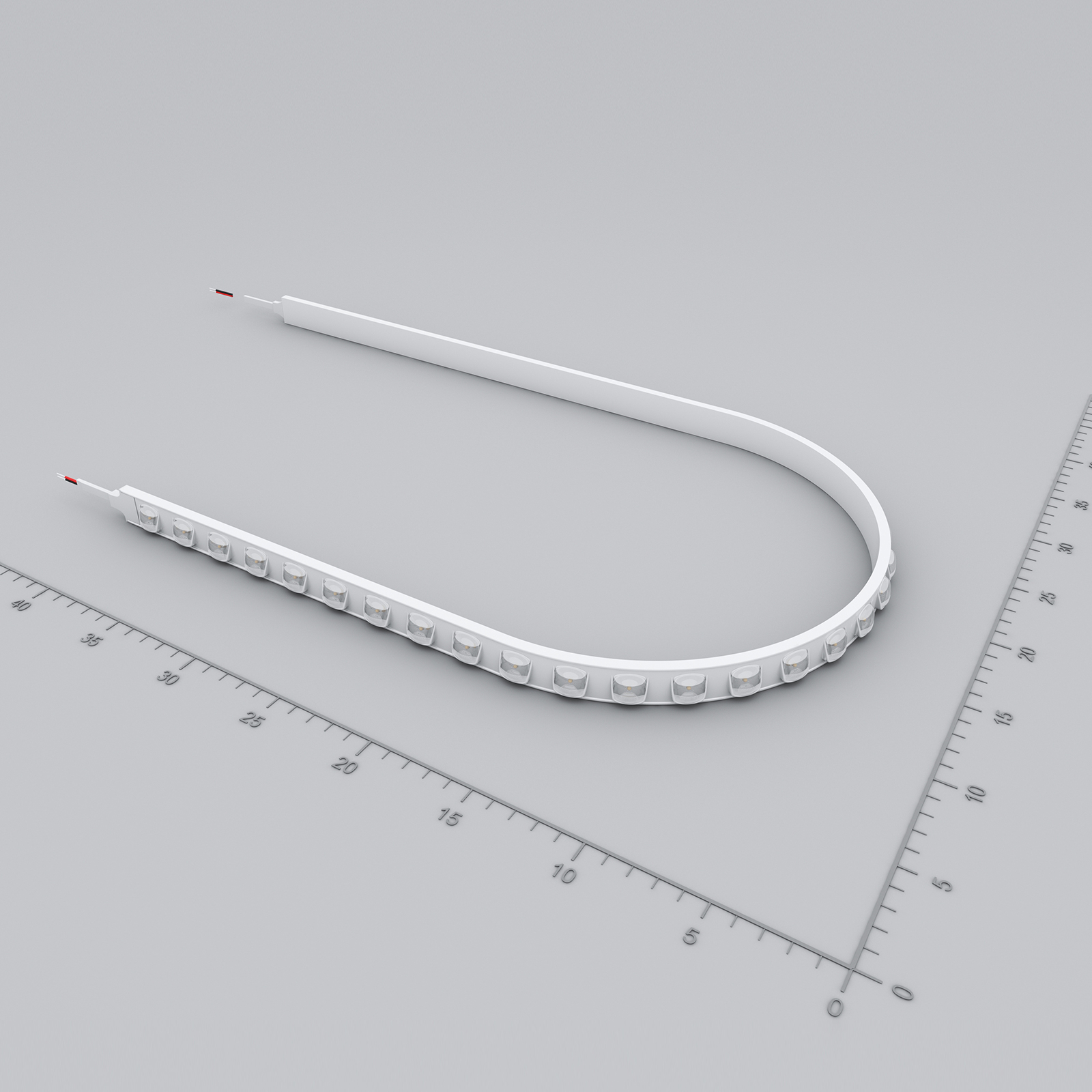

Top Bend Asymmetric Wall Washer

Top BendNeon Flex
Top Bend
Top Bend aww

Performance Specifications

Light Source
LED
Voltage
24
Wattage/M
18
CRI
90
MacAdams Step
3
Beam Angle
50X70
LED Lifetime
N/A
IP Rating
67
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI

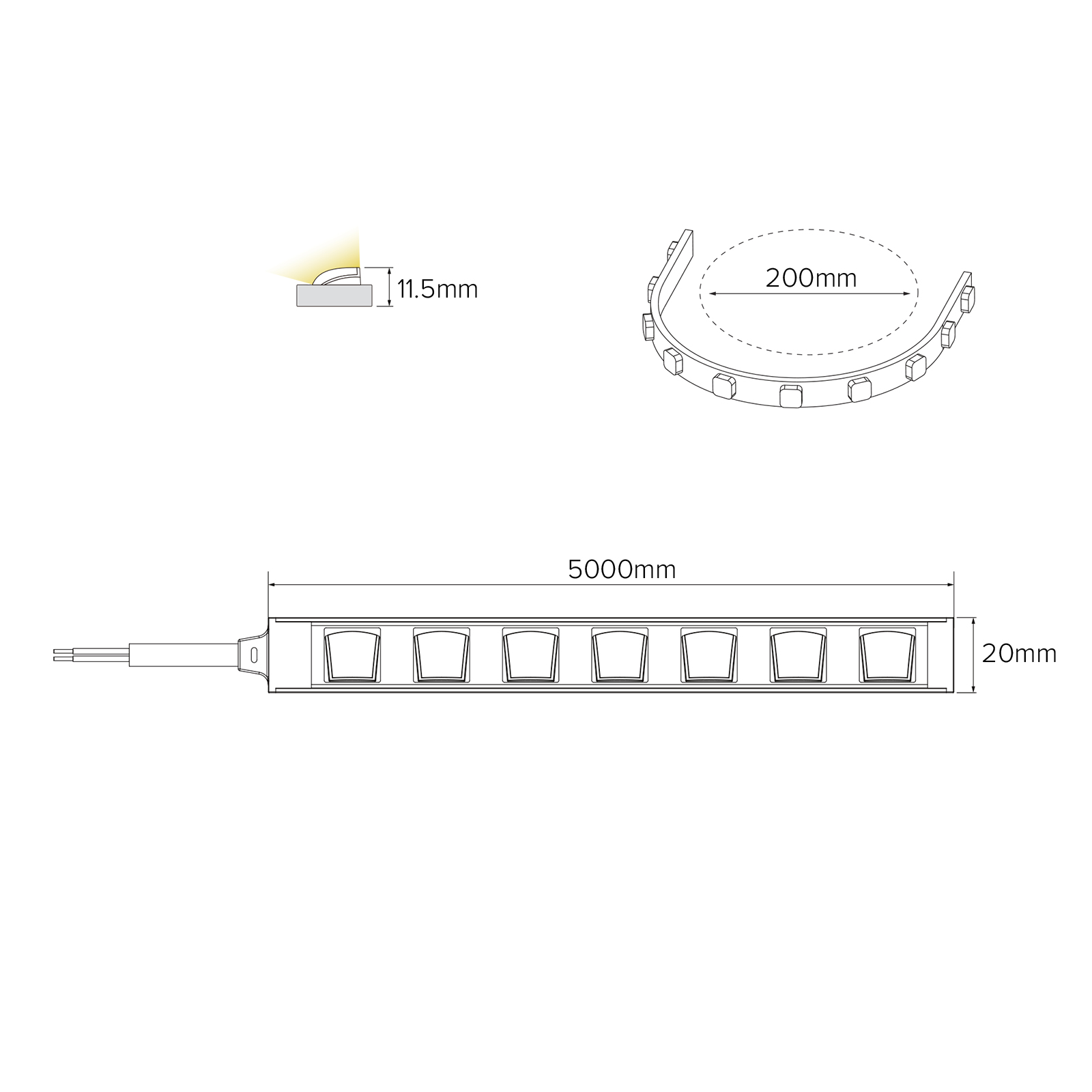

Physical Specifications

LEDs/M
42
Width (mm)
20
Height (mm)
10.3
Length (mm)
5000
Pitch (mm)
N/A
Cutting Intervals (mm)
166.6
Max Single Run (mm)
5000
Max Flex Width (mm)
N/A
Material
N/A
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Colour Temp
Lumens / M
Efficacy
NF-TB-AWW-24V-18W-50X70D-27K-IP67
Top Bend NeonFlex AWW 18W 50X70D 2700K IP67
2700
1577
88
NF-TB-AWW-24V-18W-50X70D-30K-IP67
Top Bend NeonFlex AWW 18W 50X70D 3000K IP67
3000
1708
95
NF-TB-AWW-24V-18W-50X70D-40K-IP67
Top Bend NeonFlex AWW 18W 50X70D 4000K IP67
4000
1782
99

Top Bend Asymmetric Wall Washer Accessories

NF-TB-AWW-MC,NF-TB-AWW-MP-1000,NF-TB-AWW-AMC

Code
Product Name
Material
Finish
NF-TB-AWW-AMC

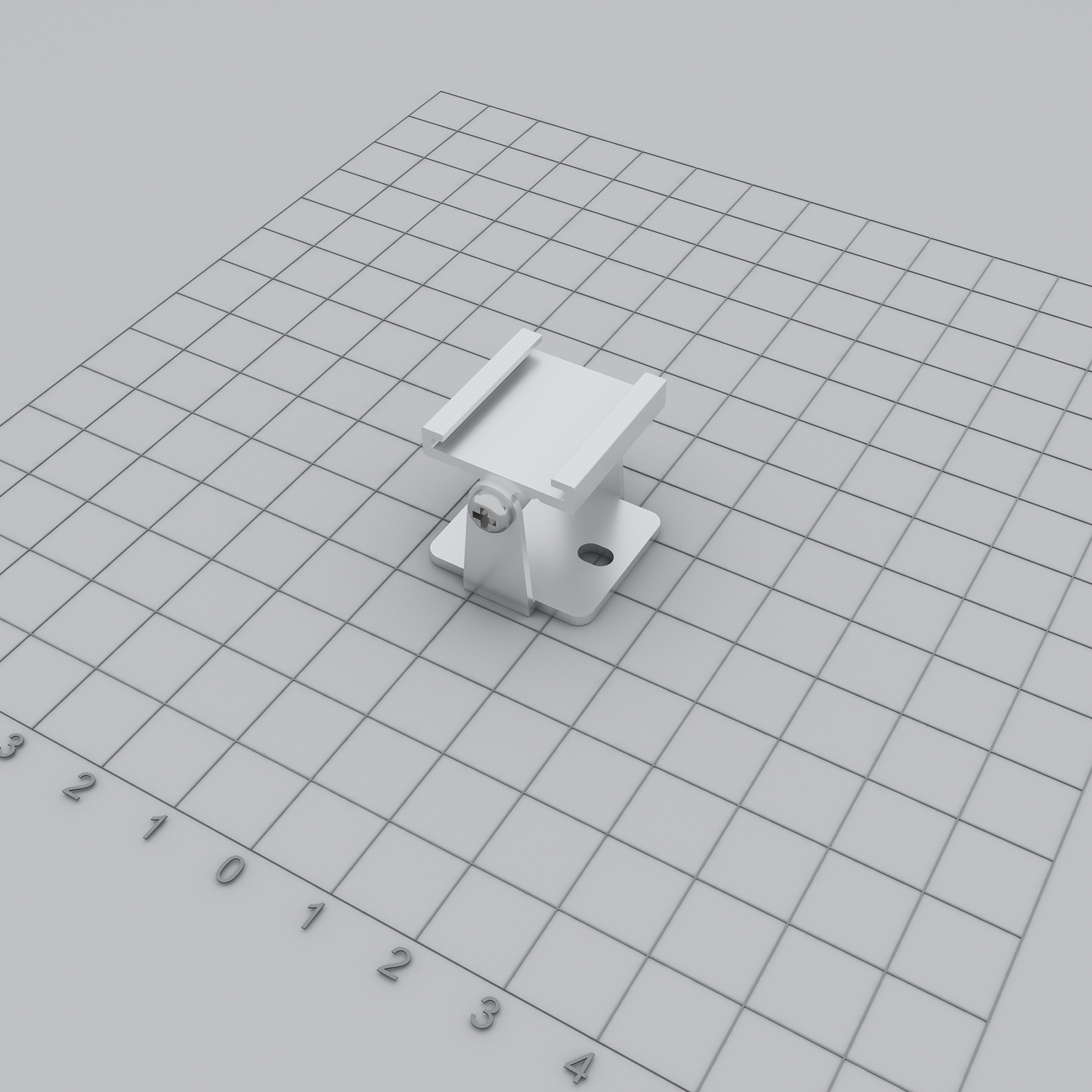

Top Bend NeonFlex Asymmetric WW Adjustable Mounting Clip
Aluminium
Matt Silver
NF-TB-AWW-MC
Top Bend NeonFlex Asymmetric WW Mounting Clip
Stainless Steel
Silver
NF-TB-AWW-MP-1000
Top Bend NeonFlex Asymmetric WW Mounting Profile 1m
Aluminium
Matt Silver

Downloads

Technical
DATASHEET
Photometrics
LDT / IES
Need help with your project?

Our technical lighting specialists are here to help. We work closely with you to determine the best lighting solution, providing expert support every step of the way. Your project is our priority.
