Neon Flex

Top Bend Symmetic Wall Washer

Top BendNeon Flex
Top Bend
Top Bend sww

Performance Specifications

Light Source
LED
Voltage
24
Wattage/M
18
CRI
90
MacAdams Step
3
Beam Angle
30,45,60,20X45,115X50
LED Lifetime
N/A
IP Rating
67
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI

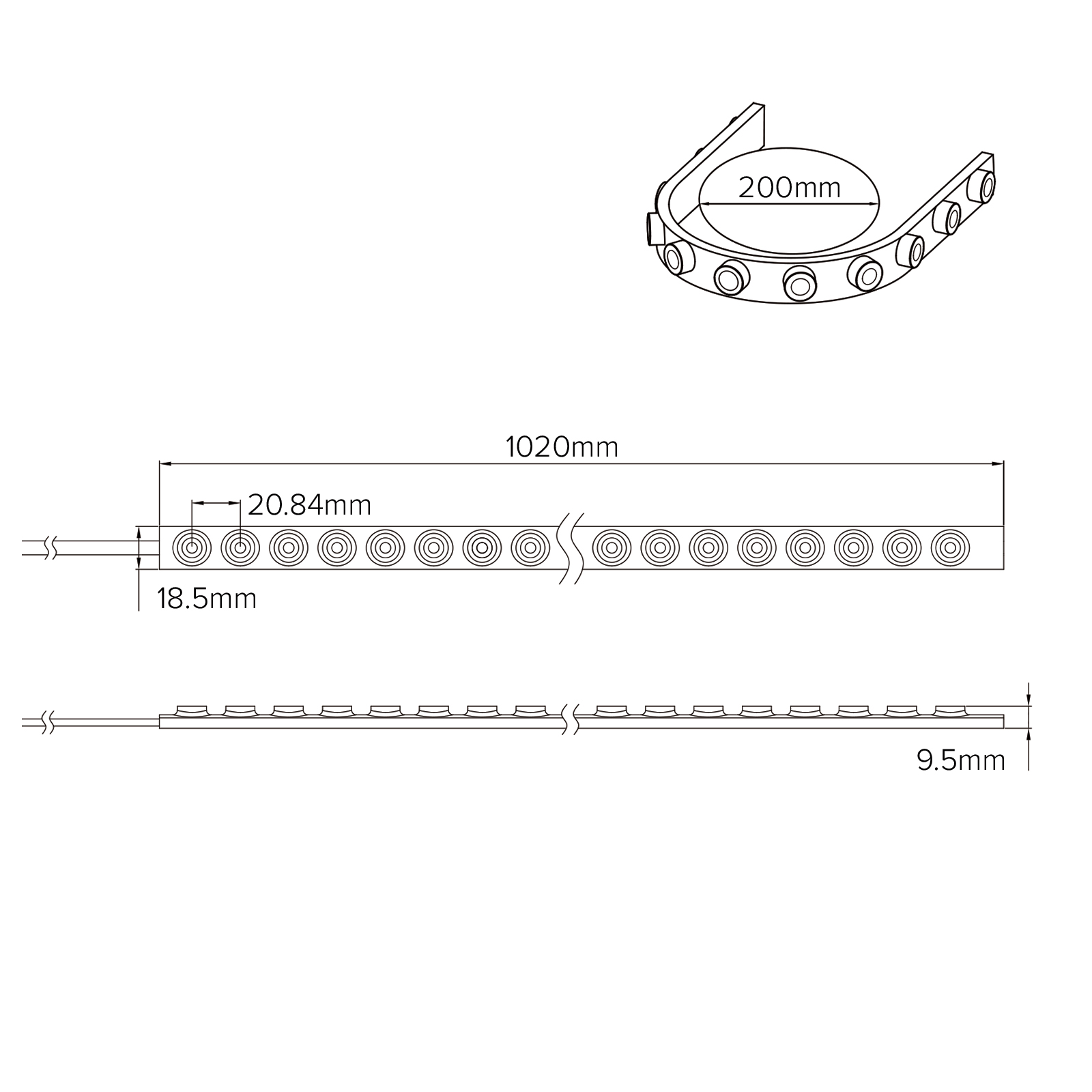

Physical Specifications

LEDs/M
48
Width (mm)
18.5
Height (mm)
9.5
Length (mm)
1020
Pitch (mm)
20.84
Cutting Intervals (mm)
125
Max Single Run (mm)
N/A
Max Flex Width (mm)
N/A
Material
N/A
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Colour Temp
Lumens / M
Efficacy
NF-TB-SWW-24V-18W-20X45D-27K-IP67
Top Bend NeonFlex SWW 18W 20x45D 2700K IP67
2700
1851
103
NF-TB-SWW-24V-18W-20X45D-30K-IP67
Top Bend NeonFlex SWW 18W 20x45D 3000K IP67
3000
1915
106
NF-TB-SWW-24V-18W-20X45D-40K-IP67
Top Bend NeonFlex SWW 18W 20x45D 4000K IP67
4000
2167
120
NF-TB-SWW-24V-18W-30D-27K-IP67
Top Bend NeonFlex SWW 18W 30D 2700K IP67
2700
1851
103
NF-TB-SWW-24V-18W-30D-30K-IP67
Top Bend NeonFlex SWW 18W 30D 3000K IP67
3000
1915
106
NF-TB-SWW-24V-18W-30D-40K-IP67
Top Bend NeonFlex SWW 18W 30D 4000K IP67
4000
2167
120
NF-TB-SWW-24V-18W-45D-27K-IP67
Top Bend NeonFlex SWW 18W 45D 2700K IP67
2700
1851
103
NF-TB-SWW-24V-18W-45D-30K-IP67
Top Bend NeonFlex SWW 18W 45D 3000K IP67
3000
1915
106
NF-TB-SWW-24V-18W-45D-40K-IP67
Top Bend NeonFlex SWW 18W 45D 4000K IP67
4000
2167
120
NF-TB-SWW-24V-18W-60D-27K-IP67
Top Bend NeonFlex SWW 18W 60D 2700K IP67
2700
1851
103
NF-TB-SWW-24V-18W-60D-30K-IP67
Top Bend NeonFlex SWW 18W 60D 3000K IP67
3000
1915
106
NF-TB-SWW-24V-18W-60D-40K-IP67
Top Bend NeonFlex SWW 18W 60D 4000K IP67
4000
2167
120
NF-TB-SWW-24V-18W-P115X50D-27K-IP67
Top Bend NeonFlex SWW 18W P115x50D 2700K IP67
2700
1851
103
NF-TB-SWW-24V-18W-P115X50D-30K-IP67
Top Bend NeonFlex SWW 18W P115x50D 3000K IP67
2700
1915
106
NF-TB-SWW-24V-18W-P115X-40K-IP67
Top Bend NeonFlex SWW 18W P115x50D 4000K IP67
2700
2167
120

Top Bend Symmetic Wall Washer Accessories

NF-TB-SWW-MC,NF-TB-SWW-MP-1000,NF-TB-SWW-AMC

Code
Product Name
Material
Finish
NF-TB-SWW-AMC
Top Bend NeonFlex Symmetric WW Adjustable Mounting Clip
Aluminium
Matt Silver
NF-TB-SWW-MC
Top Bend NeonFlex Symmetric WW Mounting Clip
Stainless Steel
Silver
NF-TB-SWW-MP-1000
Top Bend NeonFlex Symmetric WW Mounting Profile 1m
Aluminium
Matt Silver

Downloads

Technical
DATASHEET
