Neon Flex

3D 13x13

3D Neon

Performance Specifications

Light Source
LED
Voltage
24
Wattage/M
7.2
CRI
90
MacAdams Step
3
Beam Angle
112
LED Lifetime
L70 B10 50,000Hrs
IP Rating
65
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI

Physical Specifications

LEDs/M
N/A
Width (mm)
13
Height (mm)
13
Length (mm)
5010
Pitch (mm)
N/A
Cutting Intervals (mm)
50
Max Single Run (mm)
5000
Max Flex Width (mm)
N/A
Material
Silicon
Diffuser Transparency
54

Technical Specifications

Code
Product Name
Colour Temp
Lumens / M
Efficacy
NF-3D-13x13-24V-7.2W-27K-IP65
3D NeonFlex 13x13 7.2W 2700K IP65
2700
373
52
NF-3D-13x13-24V-7.2W-30K-IP65
3D NeonFlex 13x13 7.2W 3000K IP65
3000
392
54
NF-3D-13x13-24V-7.2W-40K-IP65
3D NeonFlex 13x13 7.2W 4000K IP65
4000
415
58

3D 13x13 Components

NF-3D-13x13-EFC,NF-3D-13x13-SFC,NF-3D-13x13-EC

Code
Product Name
Material
Finish

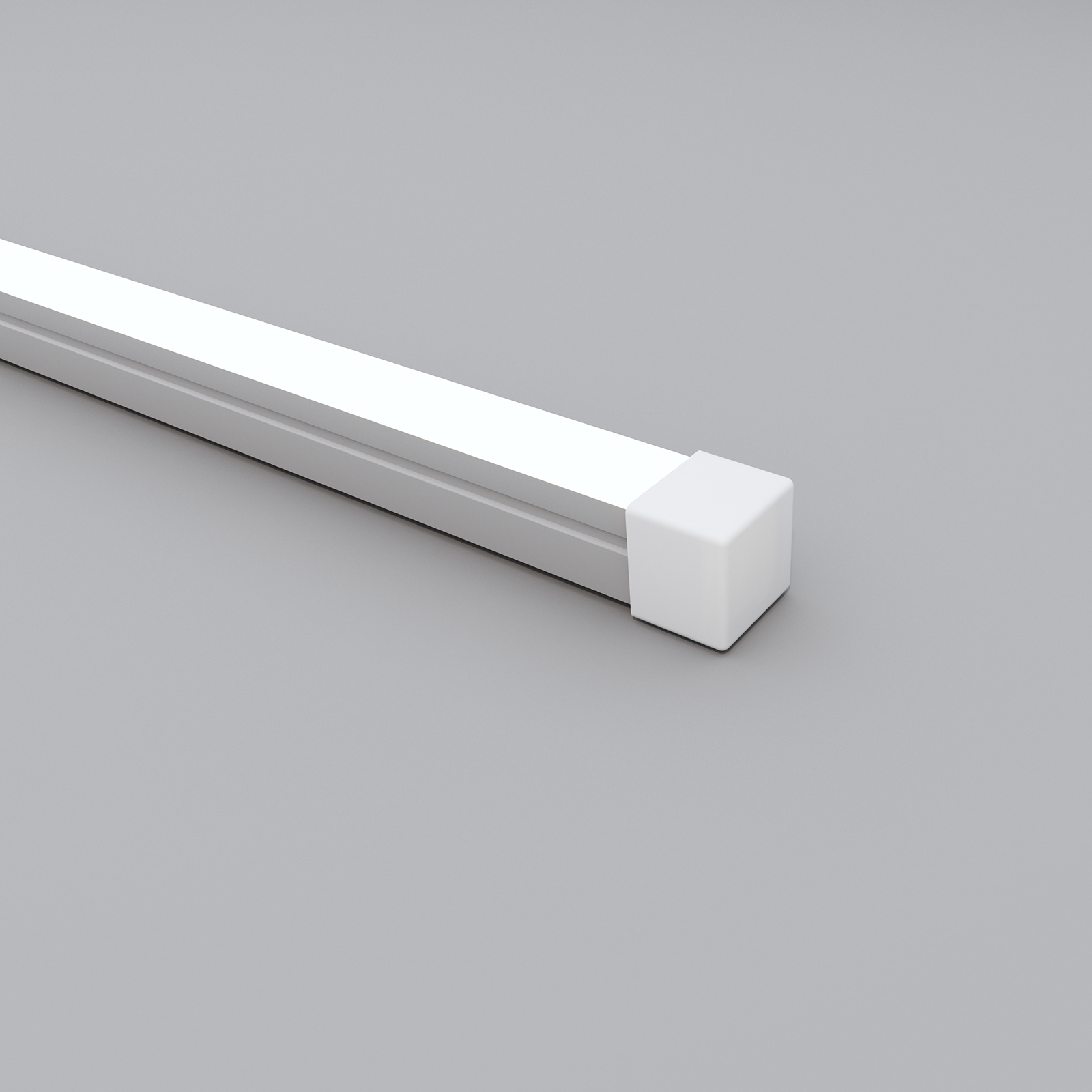

3D NeonFlex 13x13 End Cap
NF-3D-13x13-EC
3D NeonFlex 13x13 End Cap
Silicon
Transparent

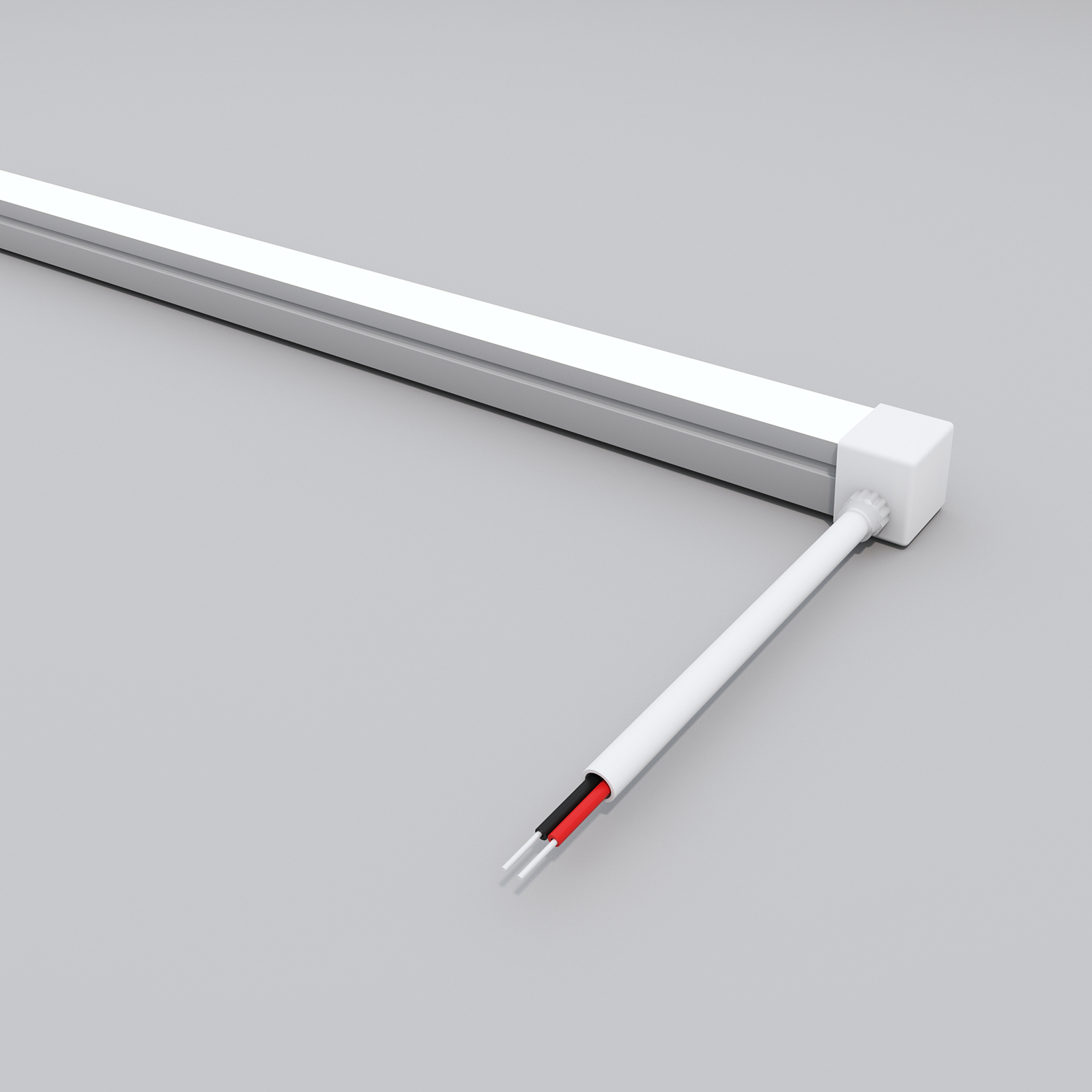

3D NeonFlex 13x13 Side Feed End Cap
NF-3D-13x13-SFC
3D NeonFlex 13x13 Side Feed End Cap
Silicon
-

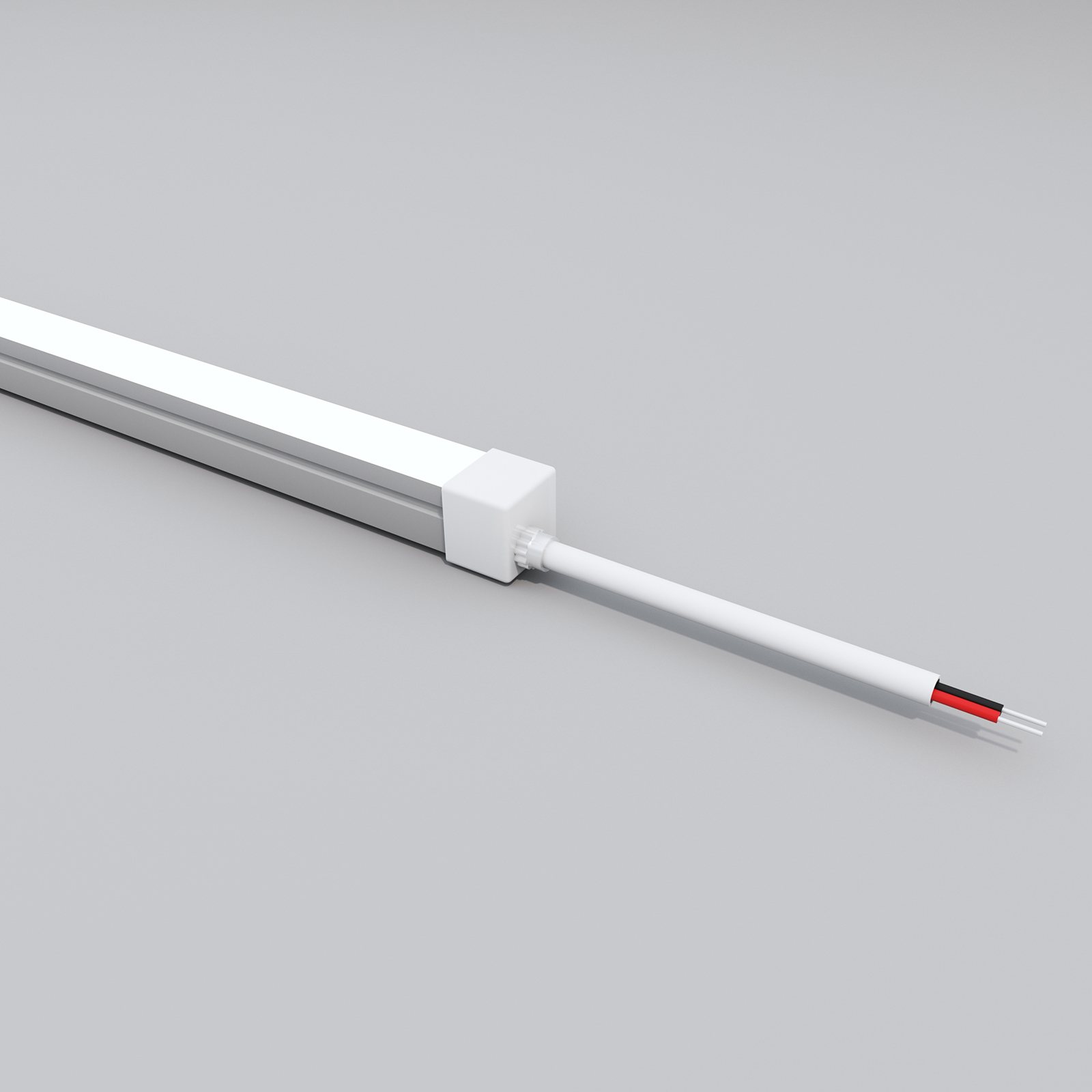

3D NeonFlex 13x13 Straight Feed End Cap
NF-3D-13x13-EFC
3D NeonFlex 13x13 Straight Feed End Cap
Silicon
-

3D 13x13 Accessories

NF-3D-13x13-MC,NF-3D-13x13-MP-2000,NF-3D-13x13-FP-5000

Code
Product Name
Material
Finish

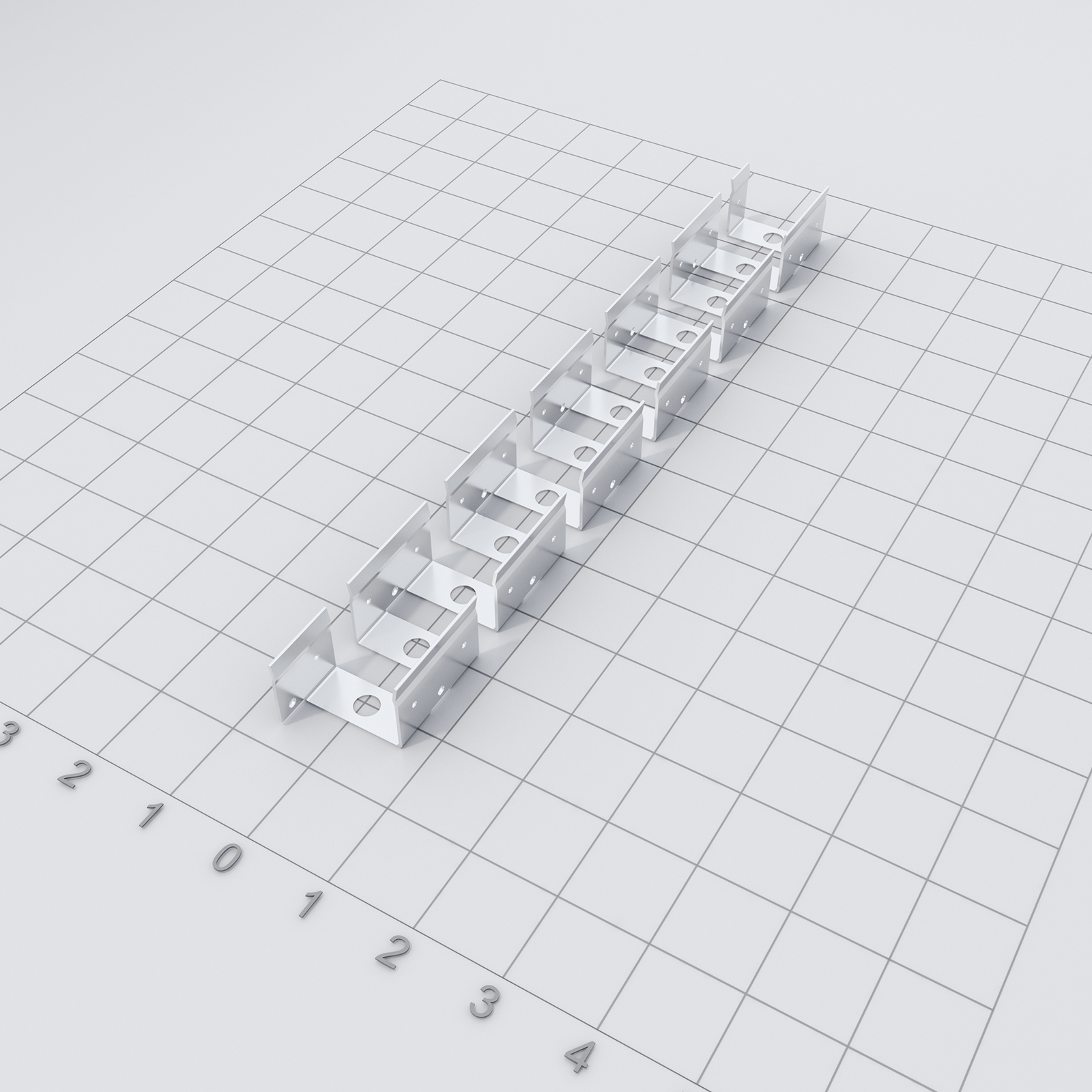

NF-3D-13x13-FP-5000
3D NeonFlex 13x13 Flexible Profile 5m
Stainless Steel
Silver

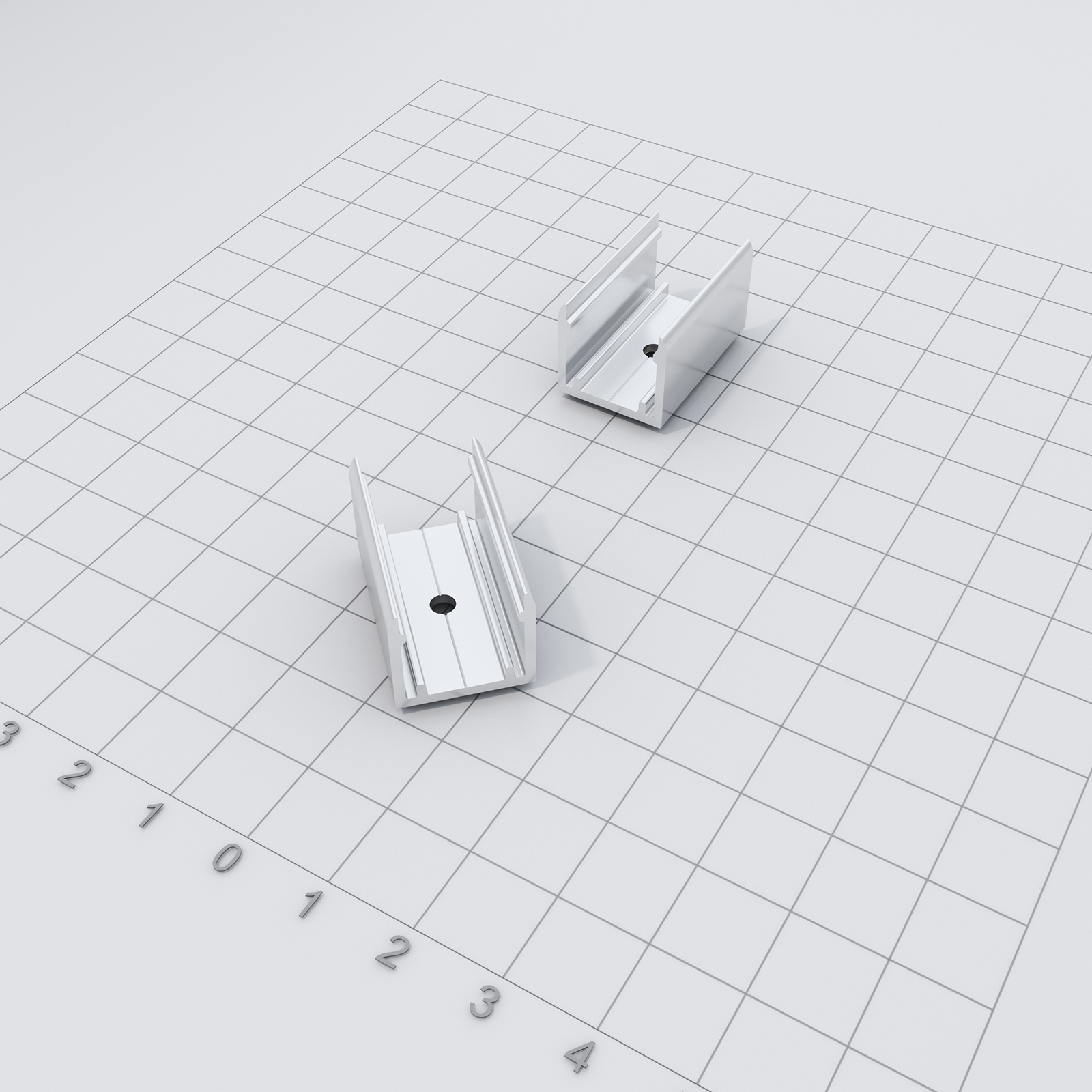

NF-3D-13x13-MC
3D NeonFlex 13x13 Mounting Clip
Aluminium
Matt Silver

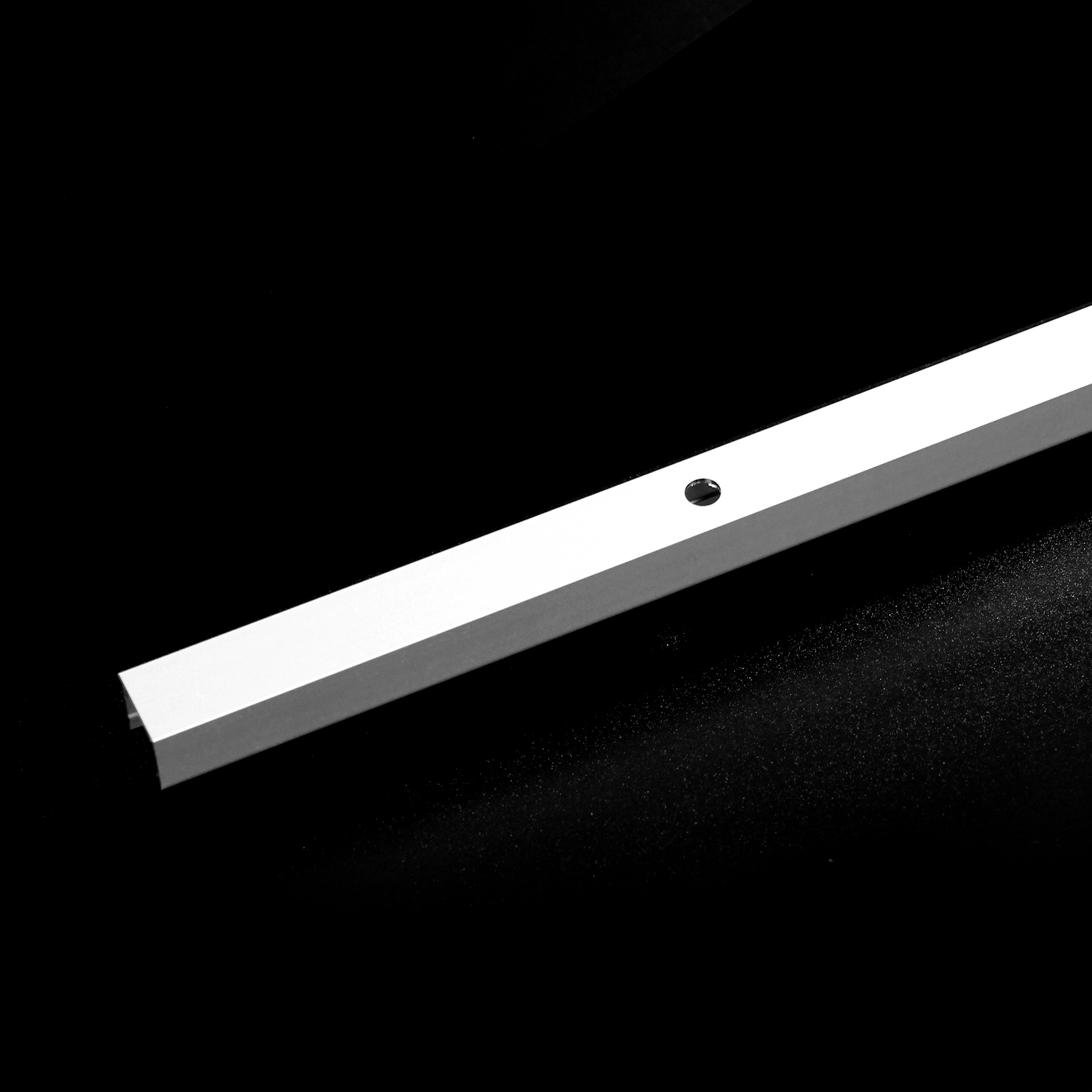

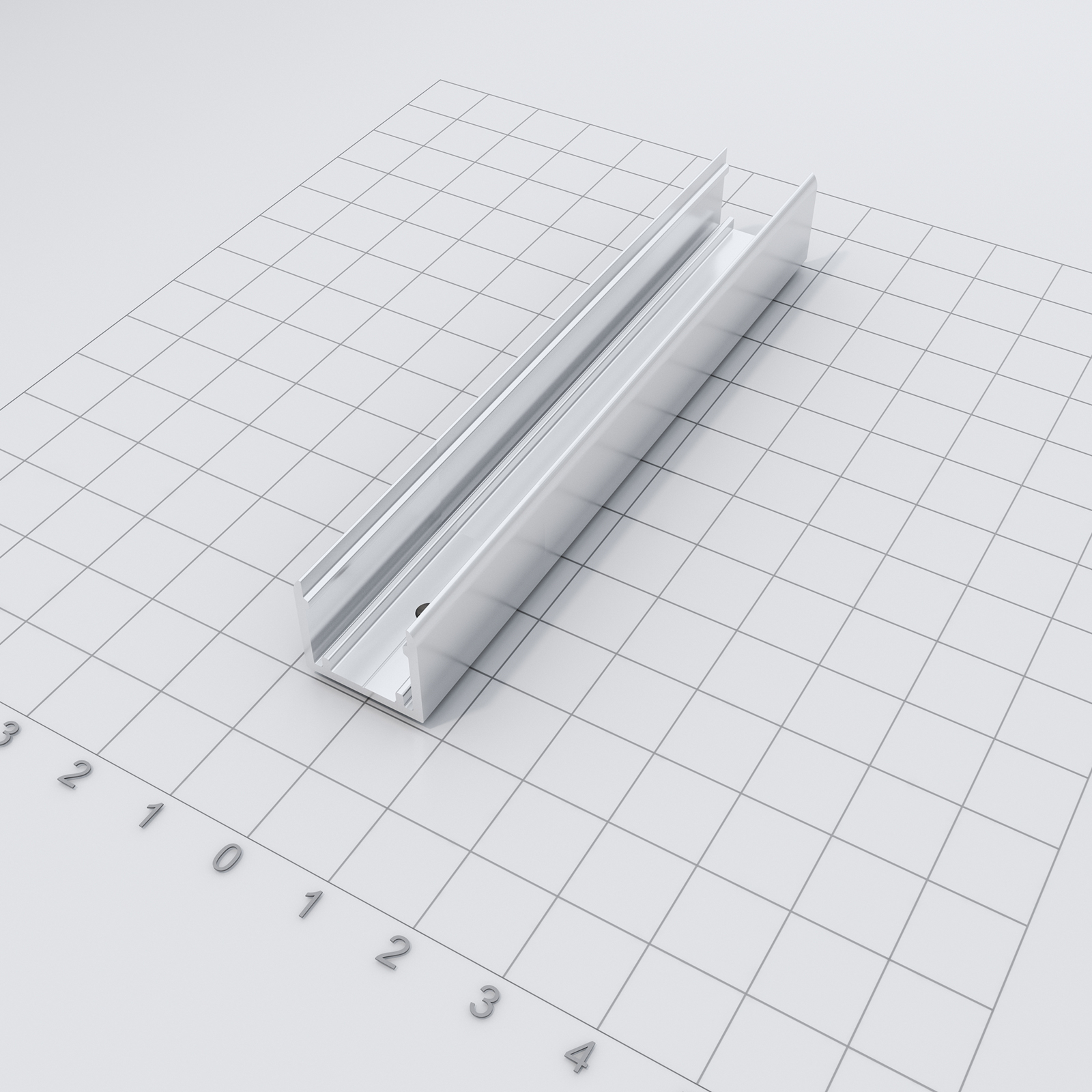

NF-3D-13x13-MP-2000
3D NeonFlex 13x13 Mounting Profile 2m
Aluminium
Matt Silver

Downloads

Technical
DATASHEET
Photometrics
LDT / IES
3D 13x13
