Linear Profile

Angle 10

Corner
Micro

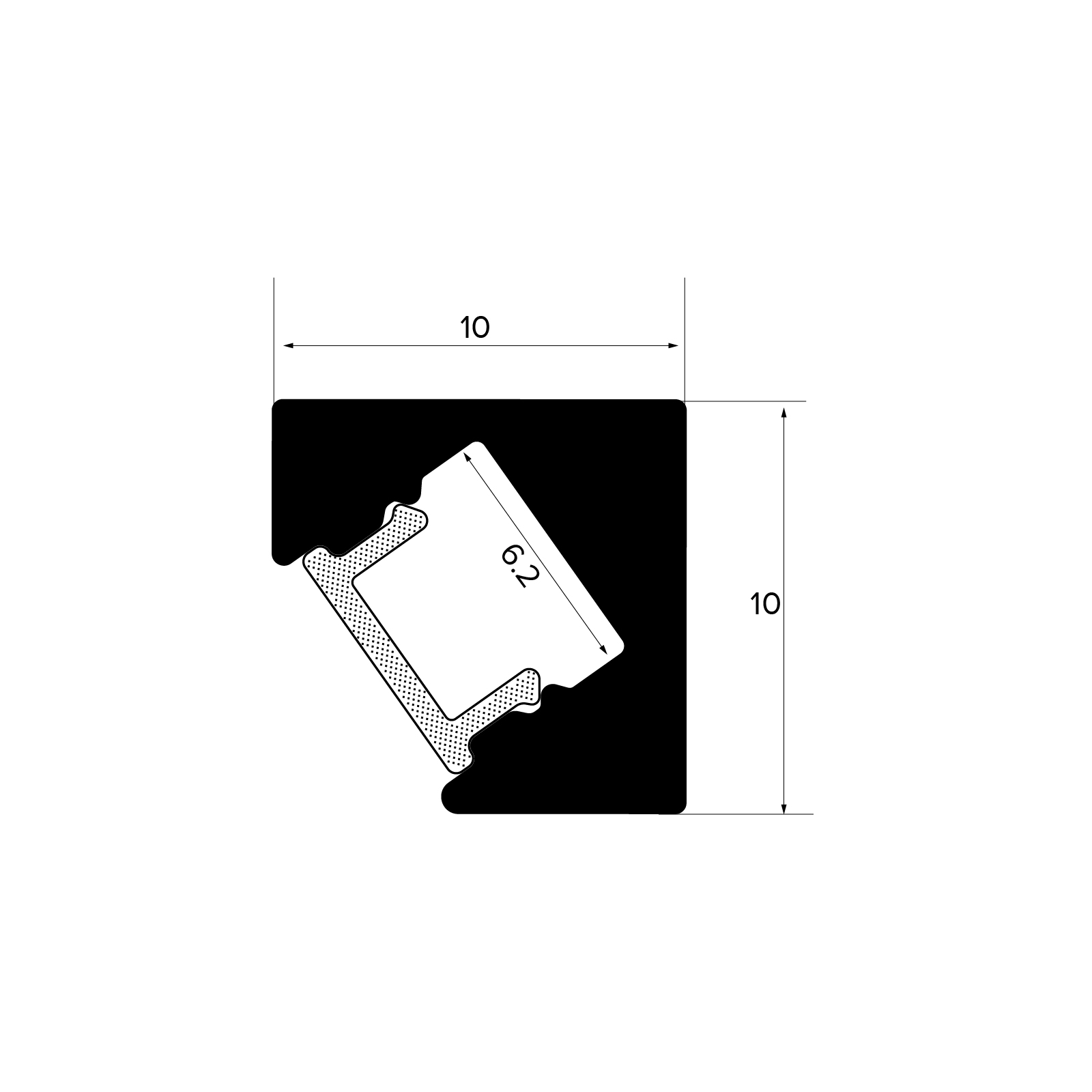

Physical Specifications

LEDs/M
N/A
Width (mm)
10
Height (mm)
10
Length (mm)
1000
2000
3000
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
5
Material
Aluminium
Finish
Anodised Aluminium,Black,White
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Length (mm)
Finish
ANGLE-10-C-A-1000
Angle 10 10mm x 10mm Corner Mounted Profile Ano Alu 1000mm
1000
Anodised Aluminium
ANGLE-10-C-A-2000
Angle 10 10mm x 10mm Corner Mounted Profile Ano Alu 2000mm
2000
Anodised Aluminium
ANGLE-10-C-A-3000
Angle 10 10mm x 10mm Corner Mounted Profile Ano Alu 3000mm
3000
Anodised Aluminium
ANGLE-10-C-B-1000
Angle 10 10mm x 10mm Corner Mounted Profile Black 1000mm
1000
Black
ANGLE-10-C-B-2000
Angle 10 10mm x 10mm Corner Mounted Profile Black 2000mm
2000
Black
ANGLE-10-C-B-3000
Angle 10 10mm x 10mm Corner Mounted Profile Black 3000mm
3000
Black
ANGLE-10-C-W-1000
Angle 10 10mm x 10mm Corner Mounted Profile White 1000mm
1000
White
ANGLE-10-C-W-2000
Angle 10 10mm x 10mm Corner Mounted Profile White 2000mm
2000
White
ANGLE-10-C-W-3000
Angle 10 10mm x 10mm Corner Mounted Profile White 3000mm
3000
White

Diffusers


Code
Product Name
Material
Transparency
D8 Black Diffuser 1000mm
D8-BD-1000
D8 Black Diffuser 1000mm
PC
30
D8 Black Diffuser 2000mm
D8-BD-2000
D8 Black Diffuser 2000mm
PC
30
D8 Black Diffuser 3000mm
D8-BD-3000
D8 Black Diffuser 3000mm
PC
30
D8 Flexible Black 20000mm
D8-FB-20000
D8 Flexible Black 20000mm
PMMA
-
D8 Flexible Opal 20000mm
D8-FO-20000
D8 Flexible Opal 20000mm
PMMA
-
D8 Opal Diffuser 1000mm
D8-OD-1000
D8 Opal Diffuser 1000mm
PC
78
D8 Opal Diffuser 2000mm
D8-OD-2000
D8 Opal Diffuser 2000mm
PC
78
D8 Opal Diffuser 3000mm
D8-OD-3000
D8 Opal Diffuser 3000mm
PC
78

Angle 10 Components

ANGLE-10-EC-A,ANGLE-10-ECH-A,ANGLE-10-EC-B,ANGLE-10-ECH-B,ANGLE-10-EC-W,ANGLE-10-ECH-W

Code
Product Name
Material
Finish
Angle 10 End Cap Black
ANGLE-10-EC-B
Angle 10 End Cap Black
PP
Black
Angle 10 End Cap Grey
ANGLE-10-EC-A
Angle 10 End Cap Grey
PP
Grey
Angle 10 End Cap White
ANGLE-10-EC-W
Angle 10 End Cap White
PP
White
Angle 10 End Cap with Hole Black
ANGLE-10-ECH-B
Angle 10 End Cap with Hole Black
PP
Black
Angle 10 End Cap with Hole Grey
ANGLE-10-ECH-A
Angle 10 End Cap with Hole Grey
PP
Grey
Angle 10 End Cap with Hole White
ANGLE-10-ECH-W
Angle 10 End Cap with Hole White
PP
White

Angle 10 Accessories

ANGLE-10-MC

Code
Product Name
Material
Finish
ANGLE-10-MC
Angle 10 Mounting Clip
Metal
-

Downloads

Technical
DATASHEET
CAD
2D
Angle 10

LED Flex Options

LED Flex
Micro COF High Output
Wattage/M
| 7.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 5
Pitch (mm)
| 2.08
Cutting Intervals (mm)
| 50
Micro COF Standard Output
Wattage/M
| 5
Colour Temp
| 2700,3000,4000
Width (mm)
| 5
Pitch (mm)
| 2.08
Cutting Intervals (mm)
| 50
Micro High Output
Wattage/M
| 9.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 3.5
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
