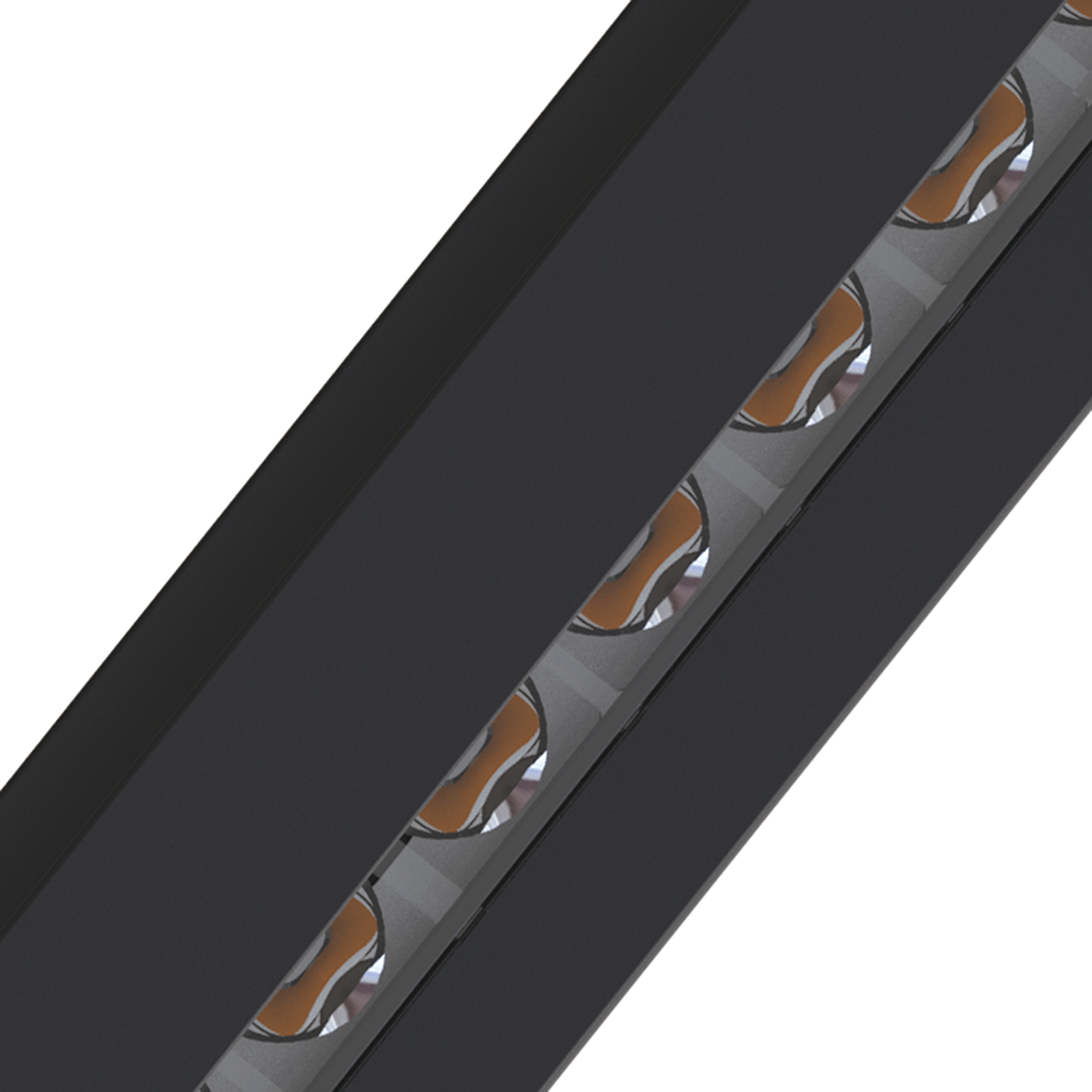

Celato Wall Washer Recessed 40W 980mm

Systems
Celato Wall Washer
Recessed
40W 980mm

Performance Specifications

Light Source
LED
Voltage
N/A
Wattage/M
40
CRI
90
MacAdams Step
3
Beam Angle
26ºX28
LED Lifetime
L80 B10 50,000Hrs
IP Rating
20
IK Rating
N/A
Dimming
Non-Dimmable,DALI,Bluetooth

Physical Specifications

LEDs/M
N/A

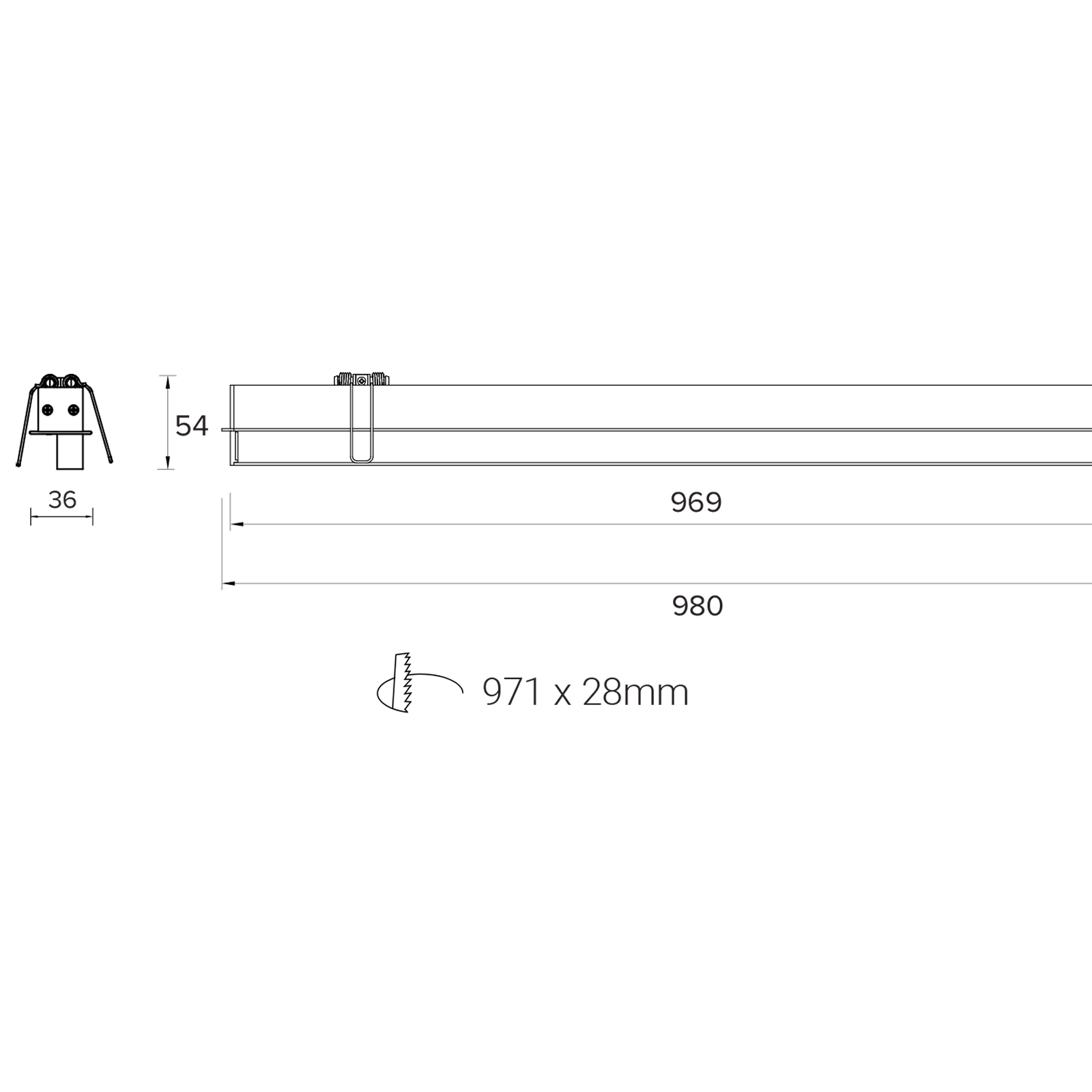

Width (mm)
36
Height (mm)
54
Length (mm)
980
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
N/A
Material
Aluminium
Finish
Black,White
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Colour Temp
Lumens
Efficacy
CWW-R-40W-27K-BL-DA
Celato Wall Washer Recessed 980mm 40W 2700K Black Dali
2700
1796
45
CWW-R-40W-27K-BL-BT
Celato Wall Washer Recessed 980mm 40W 2700K Black Dali
2700
1796
45
CWW-R-40W-27K-BL
Celato Wall Washer Recessed 980mm 40W 2700K Black Non-Dim
2700
1796
45
CWW-R-40W-27K-WH-BT
Celato Wall Washer Recessed 980mm 40W 2700K White Bluetooth
2700
1796
45
CWW-R-40W-27K-WH-DA
Celato Wall Washer Recessed 980mm 40W 2700K White Dali
2700
1796
45
CWW-R-40W-27K-WH
Celato Wall Washer Recessed 980mm 40W 2700K White Non-Dim
2700
1796
45
CWW-R-40W-30K-BL-DA
Celato Wall Washer Recessed 980mm 40W 3000K Black Dali
3000
1836
46
CWW-R-40W-30K-BL-BT
Celato Wall Washer Recessed 980mm 40W 3000K Black Dali
3000
1836
46
CWW-R-40W-30K-BL
Celato Wall Washer Recessed 980mm 40W 3000K Black Non-Dim
3000
1836
46
CWW-R-40W-30K-WH-BT
Celato Wall Washer Recessed 980mm 40W 3000K White Bluetooth
3000
1836
46
CWW-R-40W-30K-WH-DA
Celato Wall Washer Recessed 980mm 40W 3000K White Dali
3000
1836
46
CWW-R-40W-30K-WH
Celato Wall Washer Recessed 980mm 40W 3000K White Non-Dim
3000
1836
46
CWW-R-40W-40K-BL-DA
Celato Wall Washer Recessed 980mm 40W 4000K Black Dali
4000
1836
46
CWW-R-40W-40K-BL-BT
Celato Wall Washer Recessed 980mm 40W 4000K Black Dali
4000
1836
46
CWW-R-40W-40K-BL
Celato Wall Washer Recessed 980mm 40W 4000K Black Non-Dim
4000
1836
46
CWW-R-40W-40K-WH-BT
Celato Wall Washer Recessed 980mm 40W 4000K White Bluetooth
4000
1836
46
CWW-R-40W-40K-WH-DA
Celato Wall Washer Recessed 980mm 40W 4000K White Dali
4000
1836
46
CWW-R-40W-40K-WH
Celato Wall Washer Recessed 980mm 40W 4000K White Non-Dim
4000
1836
46
CWW-R-40W-TW-BL-DA
Celato Wall Washer Recessed 980mm 40W TW Black Dali
TW
-
-
CWW-R-40W-TW-BL-BT
Celato Wall Washer Recessed 980mm 40W TW Black Dali
TW
-
-
CWW-R-40W-TW-WH-BT
Celato Wall Washer Recessed 980mm 40W TW White Bluetooth
TW
-
-
CWW-R-40W-TW-WH-DA
Celato Wall Washer Recessed 980mm 40W TW White Dali
TW
-
-

Downloads

Technical
DATASHEET
Installation
INSTRUCTIONS
Photometrics
LDT / IES
