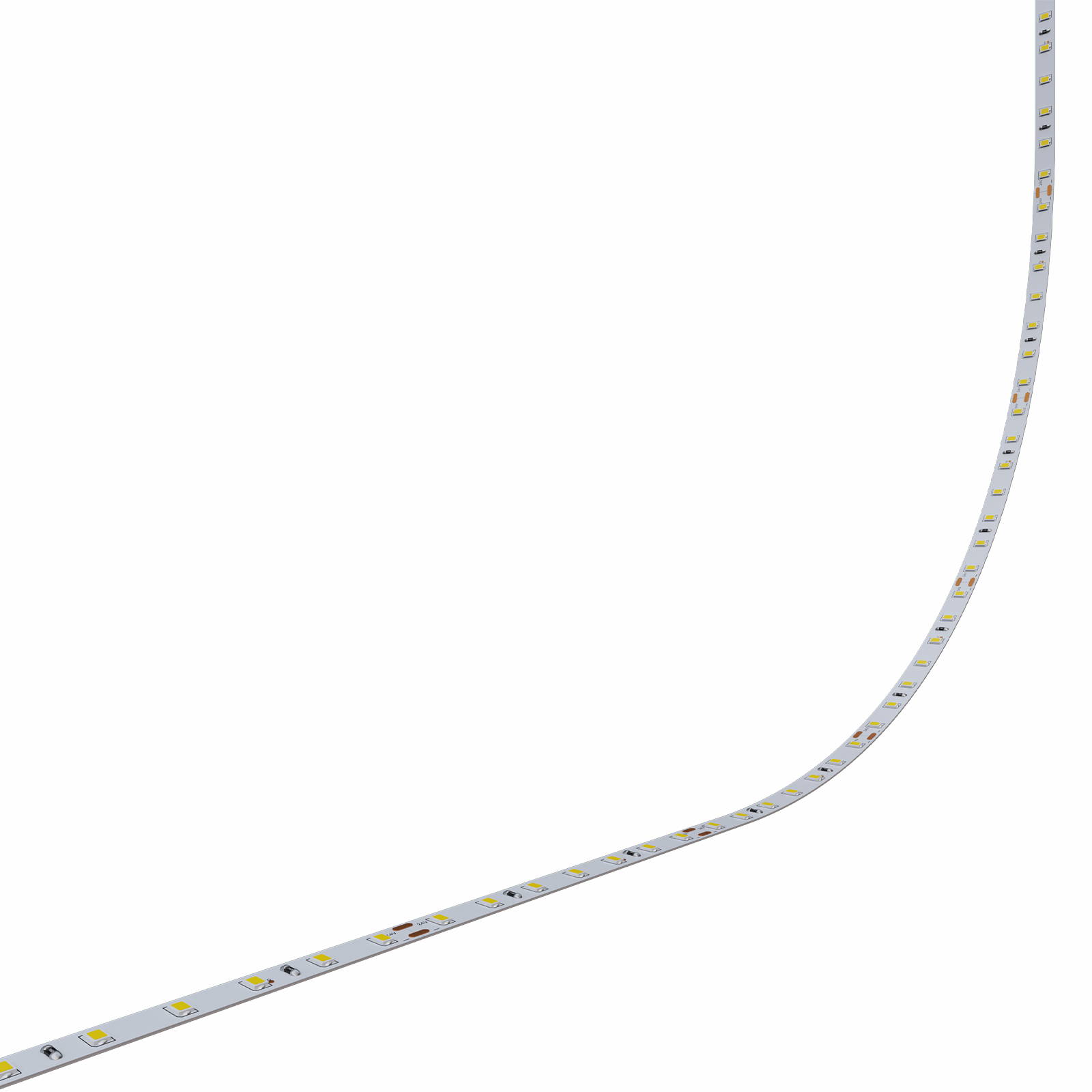

LED Flex

Effi Standard IP65

Effi Flex

Performance Specifications

Light Source
LED
Voltage
24
Wattage/M
7.2
CRI
90
MacAdams Step
3
Beam Angle
N/A
LED Lifetime
L80 B10 50,000Hrs
IP Rating
65
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI

Physical Specifications

LEDs/M
70
Width (mm)
10
Height (mm)
4
Length (mm)
5000
Pitch (mm)
14.29
Cutting Intervals (mm)
100
Max Single Run (mm)
5000
Max Flex Width (mm)
N/A
Material
N/A
Package Dimension
220 x 250 x 0.14
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Colour Temp
Lumens / M
Efficacy
EF-24V-7.2W-27K-IP65
Effi Standard LEDFlex 24V 7.2W 2700K IP65
2700
625
-
EF-24V-7.2W-30K-IP65
Effi Standard LEDFlex 24V 7.2W 3000K IP65
3000
660
-
EF-24V-7.2W-40K-IP65
Effi Standard LEDFlex 24V 7.2W 4000K IP65
4000
715
-

Downloads

Technical
DATASHEET
Photometrics
LDT / IES

Linear Profile Options

Linear Profile
Archer
Width (mm)
| 35.2
Height (mm)
| 34.9
Finish
| Anodised Aluminium | Black | White
Astra
Width (mm)
| 23
Height (mm)
| 28
Finish
| Anodised Aluminium | Black | White
Ion
Width (mm)
| 69.5
Height (mm)
| 56.8
Finish
| White
Iota
Width (mm)
| 18.5
Height (mm)
| 89.9
Finish
| White
Luna
Width (mm)
| 17.1
Height (mm)
| 15.3
Finish
| Anodised Aluminium | Black | White
Zora
Width (mm)
| 25
Height (mm)
| 25
Finish
| Anodised Aluminium | Black | White
