Systems

Elite 26 Series Lens Pendant 1800mm

Systems
Stand-Alone Pendants
Elite 26 Series Lens Pendant 1800mm

Performance Specifications

Light Source
LED
Voltage
N/A
Wattage/M
50
CRI
90
MacAdams Step
N/A
Beam Angle
20,40,60,20°x20
LED Lifetime
L80 B10 50,000Hrs
IP Rating
20
IK Rating
N/A
Dimming
Non-Dimmable,DALI

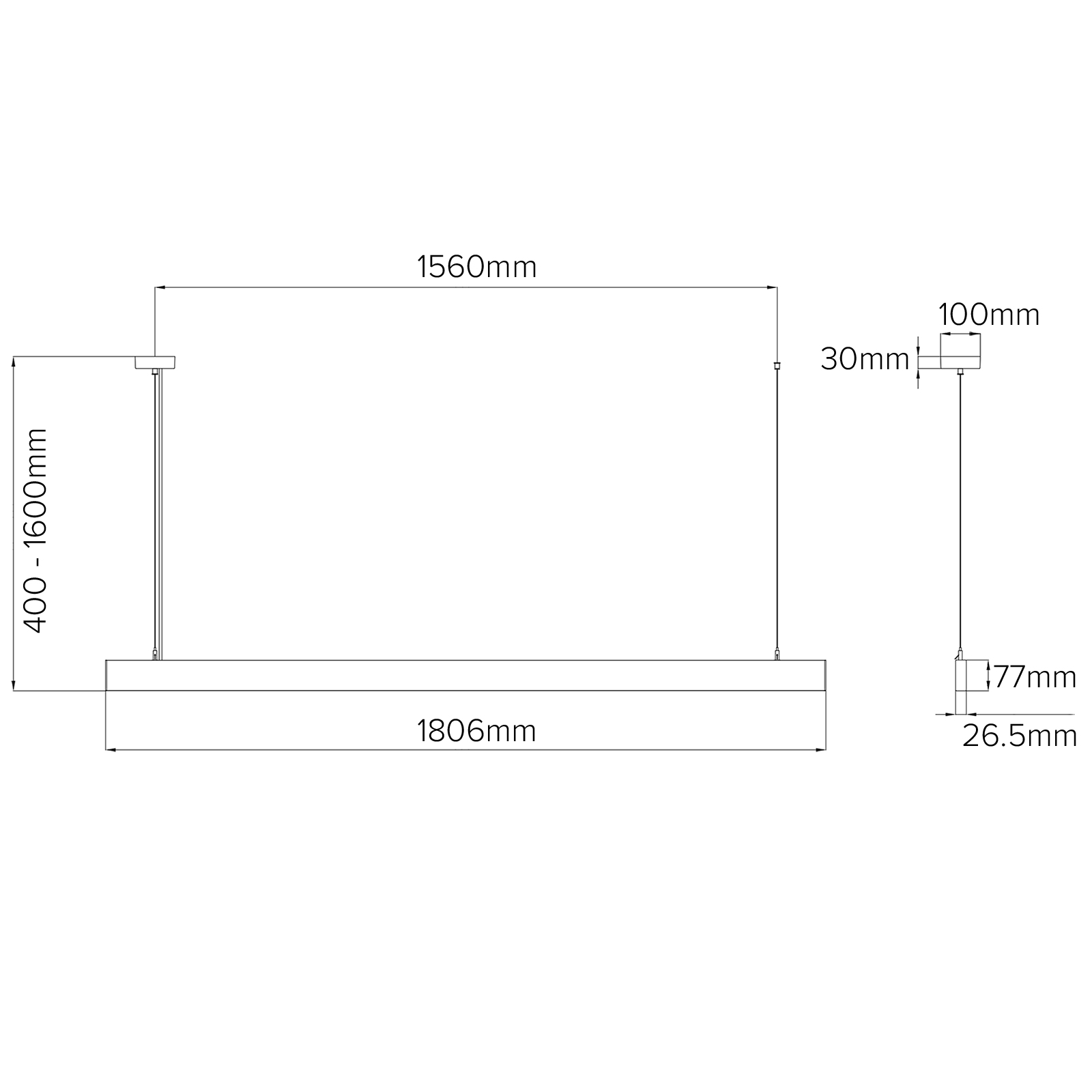

Physical Specifications

LEDs/M
N/A
Width (mm)
26
Height (mm)
77
Length (mm)
1800
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
N/A
Material
Aluminium
Finish
Black,White,Silver
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Colour Temp
Lumens
Efficacy
ELT26L-1800-50-20D-930-BL-DA
Elite 26 Series Pendant 1800mm 3000K 20° Black DALI
3000
5800
116
ELT26L-1800-50-20D-930-BL
Elite 26 Series Pendant 1800mm 3000K 20° Black, Non-dimmable
3000
5800
116
ELT26L-1800-50-20D-930-SL-DA
Elite 26 Series Pendant 1800mm 3000K 20° Silver DALI
3000
5800
116
ELT26L-1800-50-20D-930-SL
Elite 26 Series Pendant 1800mm 3000K 20° Silver Non-dimmable
3000
5800
116
ELT26L-1800-50-20D-930-WH-DA
Elite 26 Series Pendant 1800mm 3000K 20° White, DALI
3000
5800
116
ELT26L-1800-50-20D-930-WH
Elite 26 Series Pendant 1800mm 3000K 20° White, Non-dimmable
3000
5800
116
ELT26L-1800-50-20x20D-930-BL-DA
Elite 26 Series Pendant 1800mm 3000K 20°x20° Black DALI
3000
5800
116
ELT26L-1800-50-20x20D-930-BL
Elite 26 Series Pendant 1800mm 3000K 20°x20° Black Non-dimmable
3000
5800
116
ELT26L-1800-50-20x20D-930-SL-DA
Elite 26 Series Pendant 1800mm 3000K 20°x20° Silver DALI
3000
5800
116
ELT26L-1800-50-20x20D-930-SL
Elite 26 Series Pendant 1800mm 3000K 20°x20° Silver Non-dimmable
3000
5800
116
ELT26L-1800-50-20x20D-930-WH-DA
Elite 26 Series Pendant 1800mm 3000K 20°x20° White DALI
3000
5800
116
ELT26L-1800-50-20x20D-930-WH
Elite 26 Series Pendant 1800mm 3000K 20°x20° White Non-dimmable
3000
5800
116
ELT26L-1800-50-40D-930-BL-DA
Elite 26 Series Pendant 1800mm 3000K 40° Black DALI
3000
5800
116
ELT26L-1800-50-40D-930-BL
Elite 26 Series Pendant 1800mm 3000K 40° Black Non-dimmable
3000
5800
116
ELT26L-1800-50-40D-930-SL-DA
Elite 26 Series Pendant 1800mm 3000K 40° Silver DALI
3000
5800
116
ELT26L-1800-50-40D-930-SL
Elite 26 Series Pendant 1800mm 3000K 40° Silver Non-dimmable
3000
5800
116
ELT26L-1800-50-40D-930-WH-DA
Elite 26 Series Pendant 1800mm 3000K 40° White DALI
3000
5800
116
ELT26L-1800-50-40D-930-WH
Elite 26 Series Pendant 1800mm 3000K 40° White Non-dimmable
3000
5800
116
ELT26L-1800-50-60D-930-BL-DA
Elite 26 Series Pendant 1800mm 3000K 60° Black DALI
3000
5800
116
ELT26L-1800-50-60D-930-BL
Elite 26 Series Pendant 1800mm 3000K 60° Black Non-dimmable
3000
5800
116
ELT26L-1800-50-60D-930-SL-DA
Elite 26 Series Pendant 1800mm 3000K 60° Silver DALI
3000
5800
116
ELT26L-1800-50-60D-930-SL
Elite 26 Series Pendant 1800mm 3000K 60° Silver Non-dimmable
3000
5800
116
ELT26L-1800-50-60D-930-WH-DA
Elite 26 Series Pendant 1800mm 3000K 60° White DALI
3000
5800
116
ELT26L-1800-50-60D-930-WH
Elite 26 Series Pendant 1800mm 3000K 60° White Non-dimmable
3000
5800
116
ELT26L-1800-50-20D-940-BL-DA
Elite 26 Series Pendant 1800mm 4000K 20° Black DALI
4000
5800
116
ELT26L-1800-50-20D-940-BL
Elite 26 Series Pendant 1800mm 4000K 20° Black Non-dimmable
4000
5800
116
ELT26L-1800-50-20D-940-SL-DA
Elite 26 Series Pendant 1800mm 4000K 20° Silver DALI
4000
5800
116
ELT26L-1800-50-20D-940-SL
Elite 26 Series Pendant 1800mm 4000K 20° Silver Non-dimmable
4000
5800
116
ELT26L-1800-50-20D-940-WH-DA
Elite 26 Series Pendant 1800mm 4000K 20° White DALI
4000
5800
116
ELT26L-1800-50-20D-940-WH
Elite 26 Series Pendant 1800mm 4000K 20° White Non-dimmable
4000
5800
116
ELT26L-1800-50-20x20D-940-BL-DA
Elite 26 Series Pendant 1800mm 4000K 20°x20° Black DALI
4000
5800
116
ELT26L-1800-50-20x20D-940-BL
Elite 26 Series Pendant 1800mm 4000K 20°x20° Black Non-dimmable
4000
5800
116
ELT26L-1800-50-20x20D-940-SL-DA
Elite 26 Series Pendant 1800mm 4000K 20°x20° Silver DALI
4000
5800
116
ELT26L-1800-50-20x20D-940-SL
Elite 26 Series Pendant 1800mm 4000K 20°x20° Silver Non-dimmable
4000
5800
116
ELT26L-1800-50-20x20D-940-WH-DA
Elite 26 Series Pendant 1800mm 4000K 20°x20° White DALI
4000
5800
116
ELT26L-1800-50-20x20D-940-WH
Elite 26 Series Pendant 1800mm 4000K 20°x20° White Non-dimmable
4000
5800
116
ELT26L-1800-50-40D-940-BL-DA
Elite 26 Series Pendant 1800mm 4000K 40° Black DALI
4000
5800
116
ELT26L-1800-50-40D-940-BL
Elite 26 Series Pendant 1800mm 4000K 40° Black Non-dimmable
4000
5800
116
ELT26L-1800-50-40D-940-SL-DA
Elite 26 Series Pendant 1800mm 4000K 40° Silver DALI
4000
5800
116
ELT26L-1800-50-40D-940-SL
Elite 26 Series Pendant 1800mm 4000K 40° Silver Non-dimmable
4000
5800
116
ELT26L-1800-50-40D-940-WH-DA
Elite 26 Series Pendant 1800mm 4000K 40° White DALI
4000
5800
116
ELT26L-1800-50-40D-940-WH
Elite 26 Series Pendant 1800mm 4000K 40° White Non-dimmable
4000
5800
116
ELT26L-1800-50-60D-940-BL-DA
Elite 26 Series Pendant 1800mm 4000K 60° Black DALI
4000
5800
116
ELT26L-1800-50-60D-940-BL
Elite 26 Series Pendant 1800mm 4000K 60° Black Non-dimmable
4000
5800
116
ELT26L-1800-50-60D-940-SL-DA
Elite 26 Series Pendant 1800mm 4000K 60° Silver DALI
4000
5800
116
ELT26L-1800-50-60D-940-SL
Elite 26 Series Pendant 1800mm 4000K 60° Silver Non-dimmable
4000
5800
116
ELT26L-1800-50-60D-940-WH-DA
Elite 26 Series Pendant 1800mm 4000K 60° White DALI
4000
5800
116
ELT26L-1800-50-60D-940-WH
Elite 26 Series Pendant 1800mm 4000K 60° White Non-dimmable
4000
5800
116

Downloads

Technical
DATASHEET
