Linear Profile

Nova

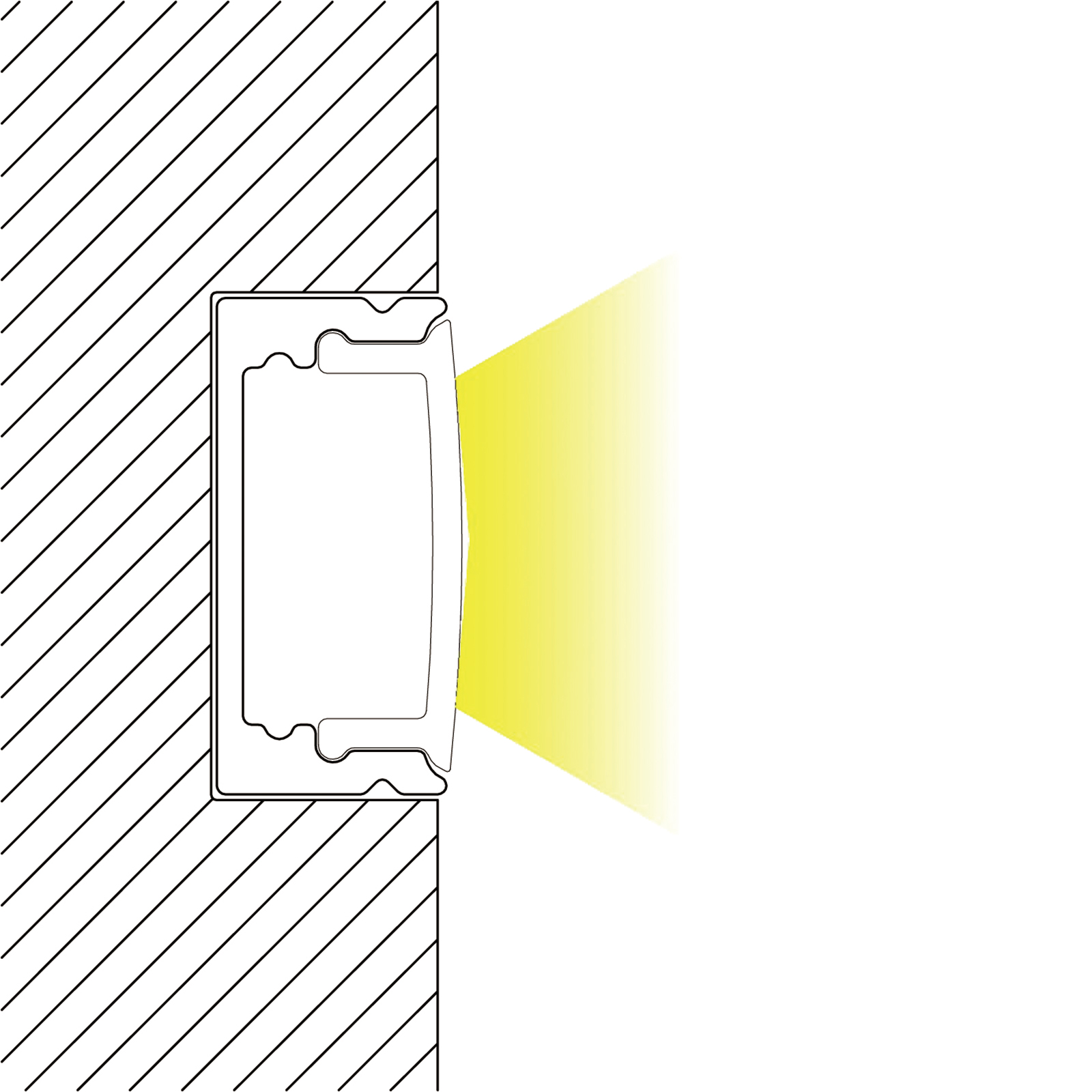

Surface
Suspended

Physical Specifications

LEDs/M
N/A
Width (mm)
17.1
Height (mm)
8
Length (mm)
1000
2000
3000
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
12
Material
Aluminium
Finish
Anodised Aluminium,Black,White
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Length (mm)
Finish
NOVA-S-A-1000
Nova 17mm x 8mm Surface Mounted Profile Ano Alu 1m
1000
Anodised Aluminium
NOVA-S-A-2000
Nova 17mm x 8mm Surface Mounted Profile Ano Alu 2m
2000
Anodised Aluminium
NOVA-S-A-3000
Nova 17mm x 8mm Surface Mounted Profile Ano Alu 3m
3000
Anodised Aluminium
NOVA-S-B-1000
Nova 17mm x 8mm Surface Mounted Profile Black 1m
3000
Black
NOVA-S-B-2000
Nova 17mm x 8mm Surface Mounted Profile Black 2m
3000
Black
NOVA-S-B-3000
Nova 17mm x 8mm Surface Mounted Profile Black 3m
3000
Black
NOVA-S-W-1000
Nova 17mm x 8mm Surface Mounted Profile White 1m
3000
White
NOVA-S-W-2000
Nova 17mm x 8mm Surface Mounted Profile White 2m
3000
White
NOVA-S-W-3000
Nova 17mm x 8mm Surface Mounted Profile White 3m
3000
White

Diffusers


Code
Product Name
Material
Transparency
D17 Clear Diffuser 1m
D17-CD-1000
D17 Clear Diffuser 1m
PC
90
D17 Clear Diffuser 2m
D17-CD-2000
D17 Clear Diffuser 2m
PC
90
D17 Clear Diffuser 3m
D17-CD-3000
D17 Clear Diffuser 3m
PC
90
D17 Flexible Black 20000mm
D17-FB-20000
D17 Flexible Black 20000mm
PC
30
D17 Flexible Opal 20000mm
D17-FO-20000
D17 Flexible Opal 20000mm
PC
78
D17 Opal Diffuser 1m
D17-OD-1000
D17 Opal Diffuser 1m
PC
78
D17 Opal Diffuser 2m
D17-OD-2000
D17 Opal Diffuser 2m
PC
78
D17 Opal Diffuser 3m
D17-OD-3000
D17 Opal Diffuser 3m
PC
78

Nova Components

NOVA-EC-A,NOVA-ECH-A,NOVA-EC-B,NOVA-ECH-B,NOVA-EC-W,NOVA-ECH-W

Code
Product Name
Material
Finish
Nova End Cap Black
NOVA-EC-B
Nova End Cap Black
PP
Black
Nova End Cap Grey
NOVA-EC-A
Nova End Cap Grey
PP
Grey
Nova End Cap White
NOVA-EC-W
Nova End Cap White
PP
White
Nova End Cap with Hole Black
NOVA-ECH-B
Nova End Cap with Hole Black
PP
Black
Nova End Cap with Hole Grey
NOVA-ECH-A
Nova End Cap with Hole Grey
PP
Grey
Nova End Cap with Hole White
NOVA-ECH-W
Nova End Cap with Hole White
PP
White

Nova Accessories

NOVA-MC,NOVA-AMC

Code
Product Name
Material
Finish
NOVA-AMC
Nova Adjustable Mounting Clip
Metal
-
NOVA-MC
Nova Mounting Clip
Metal
-

Downloads

Technical
DATASHEET
CAD
2D
Nova

LED Flex Options

LED Flex
COF High Output 10m
Wattage/M
| 11
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 2
Cutting Intervals (mm)
| 41.67
COF Plus
Wattage/M
| 14.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 2.08
Cutting Intervals (mm)
| 50
COF RGB
Wattage/M
| 15
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 1.19
Cutting Intervals (mm)
| 25
Effi High Output
Wattage/M
| 9.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Plus
Wattage/M
| 14.4
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Standard
Wattage/M
| 7.2
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 14.29
Cutting Intervals (mm)
| 100
Ex 10m High Output
Wattage/M
| 12
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Ex 40m Low Output
Wattage/M
| 2.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 16.6
Cutting Intervals (mm)
| 100
Tuneable White COF
Wattage/M
| 13.6
Colour Temp
| 2500-6500
Width (mm)
| 10
Pitch (mm)
| 1.66
Cutting Intervals (mm)
| 26.32
