Linear Profile

Starr

Micro
Surface
Suspended

Physical Specifications

LEDs/M
N/A
Width (mm)
8
Height (mm)
6
Length (mm)
1000
2000
3000
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
5
Material
Aluminium
Finish
Black,White
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Length (mm)
Finish
STARR-S-B-1000
Starr 8mm x 6mm Surface Mounted Profile Black 1000mm
1000
Black
STARR-S-B-2000
Starr 8mm x 6mm Surface Mounted Profile Black 2000mm
2000
Black
STARR-S-B-3000
Starr 8mm x 6mm Surface Mounted Profile Black 3000mm
3000
Black
STARR-S-W-1000
Starr 8mm x 6mm Surface Mounted Profile White 1000mm
1000
White
STARR-S-W-2000
Starr 8mm x 6mm Surface Mounted Profile White 2000mm
2000
White
STARR-S-W-3000
Starr 8mm x 6mm Surface Mounted Profile White 3000mm
3000
White

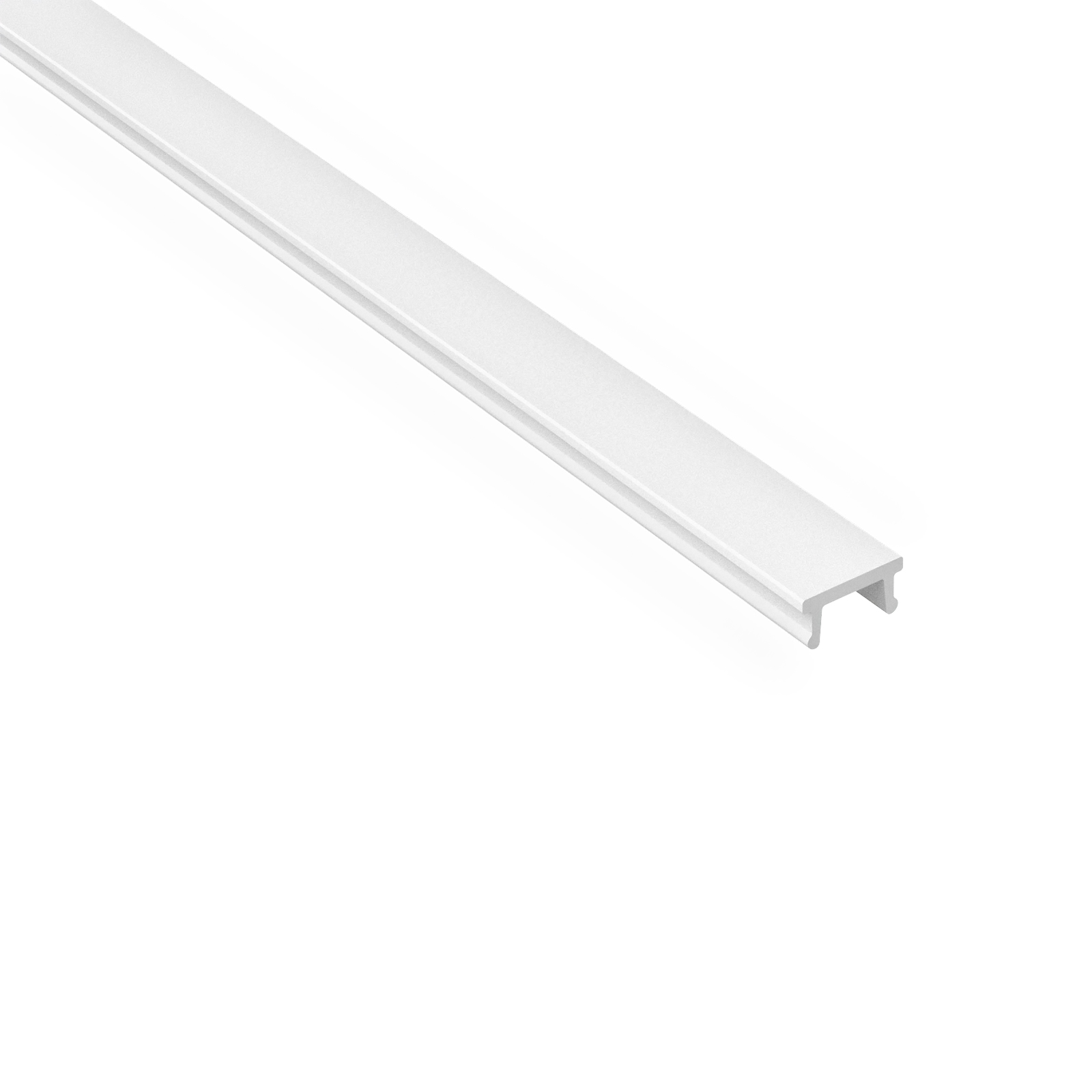

Diffusers


Code
Product Name
Material
Transparency
D86 Opal Diffuser 1000mm
D86-OD-1000
D86 Opal Diffuser 1000mm
PMMA
45
D86 Opal Diffuser 2000mm
D86-OD-2000
D86 Opal Diffuser 2000mm
PMMA
45
D86 Opal Diffuser 3000mm
D86-OD-3000
D86 Opal Diffuser 3000mm
PMMA
45

Starr Accessories

STARR-MC

Code
Product Name
Material
Finish
STARR-MC
Starr Mounting Clip
Metal
-

Downloads

Technical
DATASHEET
CAD
2D
Starr

LED Flex Options

LED Flex
Micro COF High Output
Wattage/M
| 7.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 5
Pitch (mm)
| 2.08
Cutting Intervals (mm)
| 50
Micro COF Standard Output
Wattage/M
| 5
Colour Temp
| 2700,3000,4000
Width (mm)
| 5
Pitch (mm)
| 2.08
Cutting Intervals (mm)
| 50
Micro High Output
Wattage/M
| 9.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 3.5
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
