Linear Profile

Bran

Surface
Suspended

Physical Specifications

LEDs/M
N/A
Width (mm)
17.6
Height (mm)
25
Length (mm)
1000
2000
3000
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
10
Material
Aluminium
Finish
Black,White
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Length (mm)
Finish
BRAN-SS-B-1000
Bran 18mm x 25mm Surface | Suspended Mounted Profile Black 1000mm
1000
Black
BRAN-SS-B-2000
Bran 18mm x 25mm Surface | Suspended Mounted Profile Black 2000mm
2000
Black
BRAN-SS-B-3000
Bran 18mm x 25mm Surface | Suspended Mounted Profile Black 3000mm
3000
Black
BRAN-SS-W-1000
Bran 18mm x 25mm Surface | Suspended Mounted Profile White 1000mm
1000
White
BRAN-SS-W-2000
Bran 18mm x 25mm Surface | Suspended Mounted Profile White 2000mm
2000
White
BRAN-SS-W-3000
Bran 18mm x 25mm Surface | Suspended Mounted Profile White 3000mm
3000
White

Diffusers


Code
Product Name
Material
Transparency
D1825 Black Diffuser 1000mm
D1825-BD-1000
D1825 Black Diffuser 1000mm
PC
21
D1825 Black Diffuser 2000mm
D1825-BD-2000
D1825 Black Diffuser 2000mm
PC
21
D1825 Black Diffuser 3000mm
D1825-BD-3000
D1825 Black Diffuser 3000mm
PC
21

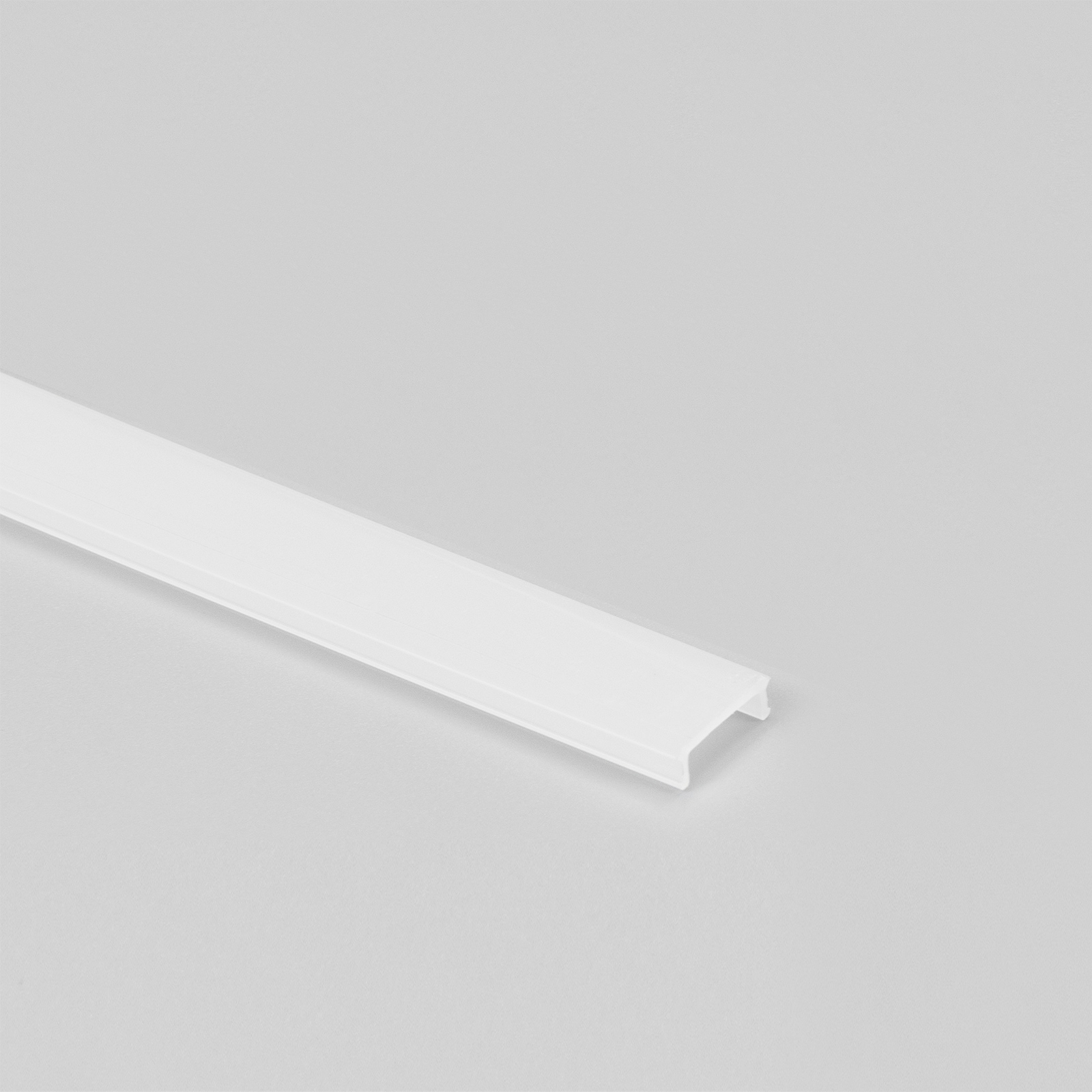

D1825 Opal Diffuser 1000mm
D1825-OD-1000
D1825 Opal Diffuser 1000mm
PC
58
D1825 Opal Diffuser 2000mm
D1825-OD-2000
D1825 Opal Diffuser 2000mm
PC
58
D1825 Opal Diffuser 3000mm
D1825-OD-3000
D1825 Opal Diffuser 3000mm
PC
58

Bran Components

BRAN-EC-B,BRAN-ECH-B,BRAN-EC-W,BRAN-ECH-W

Code
Product Name
Material
Finish
Bran End Cap Black
BRAN-EC-B
Bran End Cap Black
PP
Black
Bran End Cap White
BRAN-EC-W
Bran End Cap White
PP
White
Bran End Cap with Hole Black
BRAN-ECH-B
Bran End Cap with Hole Black
PP
Black
Bran End Cap with Hole White
BRAN-ECH-W
Bran End Cap with Hole White
PP
White

Bran Accessories

BRAN-MC,BRAN-SUS,BRAN-IS,BRAN-HS,BRAN-VS

Code
Product Name
Material
Finish
BRAN-HS
Bran Horizontal Support
-
BRAN-IS
Bran Inline Support
-

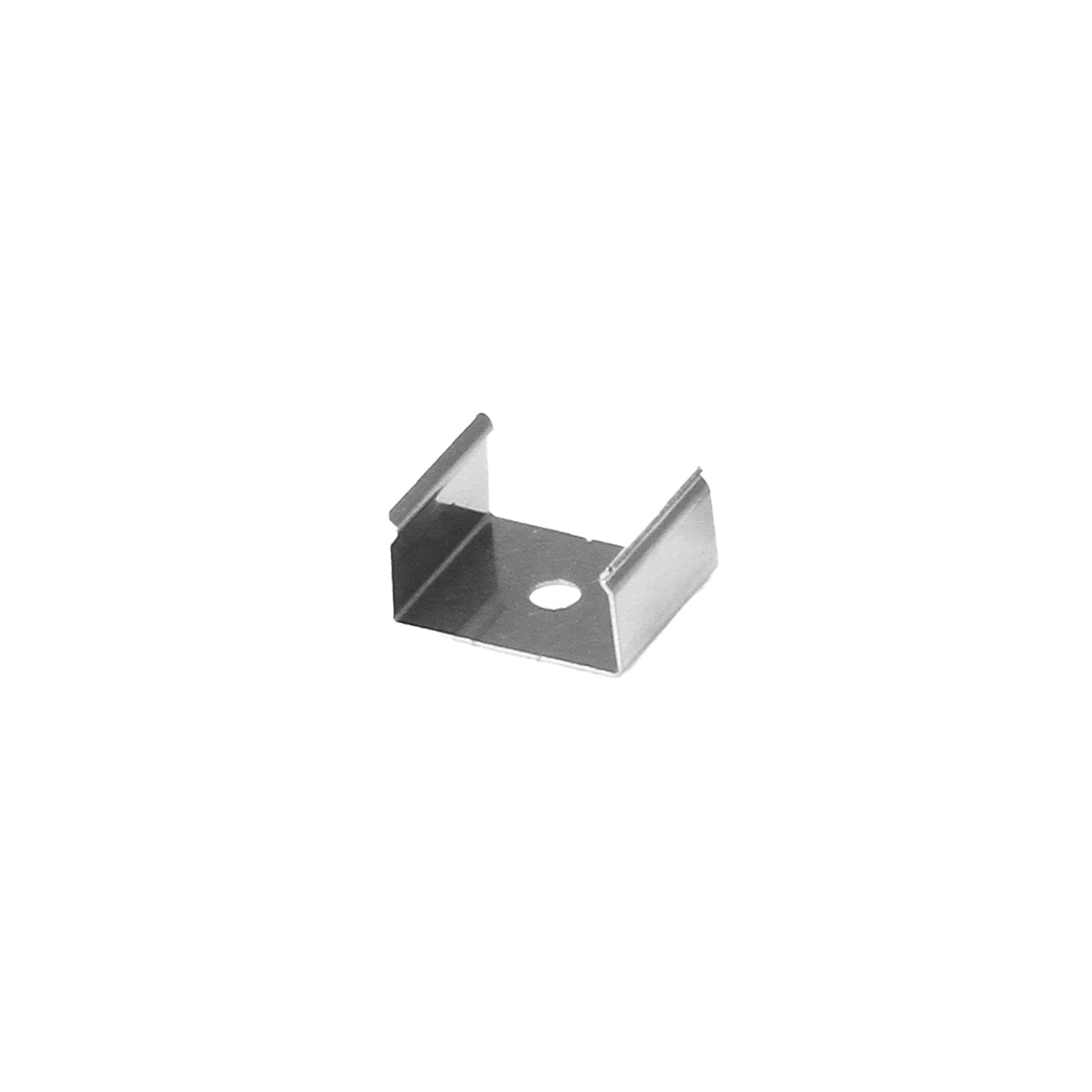

BRAN-MC
Bran Mounting Clip
-
BRAN-SUS
Bran Suspension Cable
-
BRAN-VS
Bran Vertical Support
-

Downloads

Technical
DATASHEET
CAD
2D

LED Flex Options

LED Flex
COF High Output 10m
Wattage/M
| 11
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 2
Cutting Intervals (mm)
| 41.67
COF Plus
Wattage/M
| 14.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 2.08
Cutting Intervals (mm)
| 50
COF RGB
Wattage/M
| 15
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 1.19
Cutting Intervals (mm)
| 25
COF RGBW
Wattage/M
| 18
Colour Temp
| RGB - 3000
Width (mm)
| 12
Pitch (mm)
| 1.49
Cutting Intervals (mm)
| 83.3
DMX RGB
Wattage/M
| 16.8
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 11.93
Cutting Intervals (mm)
| 83.5
Effi High Output
Wattage/M
| 9.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Plus
Wattage/M
| 14.4
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Plus High Output
Wattage/M
| 19.2
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 4.76
Cutting Intervals (mm)
| 33.3
Effi Standard
Wattage/M
| 7.2
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 14.29
Cutting Intervals (mm)
| 100
Ex 10m High Output
Wattage/M
| 12
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Ex 40m Low Output
Wattage/M
| 2.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 16.6
Cutting Intervals (mm)
| 100
RGB
Wattage/M
| 17.1
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 11.9
Cutting Intervals (mm)
| 71.4
Tuneable White COF
Wattage/M
| 13.6
Colour Temp
| 2500-6500
Width (mm)
| 10
Pitch (mm)
| 1.66
Cutting Intervals (mm)
| 26.32
