Linear Profile

Nero

IP Rated
Surface
Suspended

Physical Specifications

LEDs/M
N/A
Width (mm)
28
Height (mm)
39.3
Length (mm)
1000
2000
3000
Pitch (mm)
N/A
Cutting Intervals (mm)
N/A
Max Single Run (mm)
N/A
Max Flex Width (mm)
11
Material
Aluminium
Finish
Black,White
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Length (mm)
Finish
NERO-SS-B-1000
Nero 28mm x 40mm Surface | Suspended Mounted Profile Black 1000mm
1000
Black
NERO-SS-B-2000
Nero 28mm x 40mm Surface | Suspended Mounted Profile Black 2000mm
2000
Black
NERO-SS-B-3000
Nero 28mm x 40mm Surface | Suspended Mounted Profile Black 3000mm
3000
Black
NERO-SS-W-1000
Nero 28mm x 40mm Surface | Suspended Mounted Profile White 1000mm
1000
White
NERO-SS-W-2000
Nero 28mm x 40mm Surface | Suspended Mounted Profile White 2000mm
2000
White
NERO-SS-W-3000
Nero 28mm x 40mm Surface | Suspended Mounted Profile White 3000mm
3000
White

Nero Components

NERO-IEC-A,NERO-EC-B,NERO-EC-W

Code
Product Name
Material
Finish
Nero End Cap Black
NERO-EC-B
Nero End Cap Black
Aluminium
-
Nero End Cap White
NERO-EC-W
Nero End Cap White
Aluminium
-

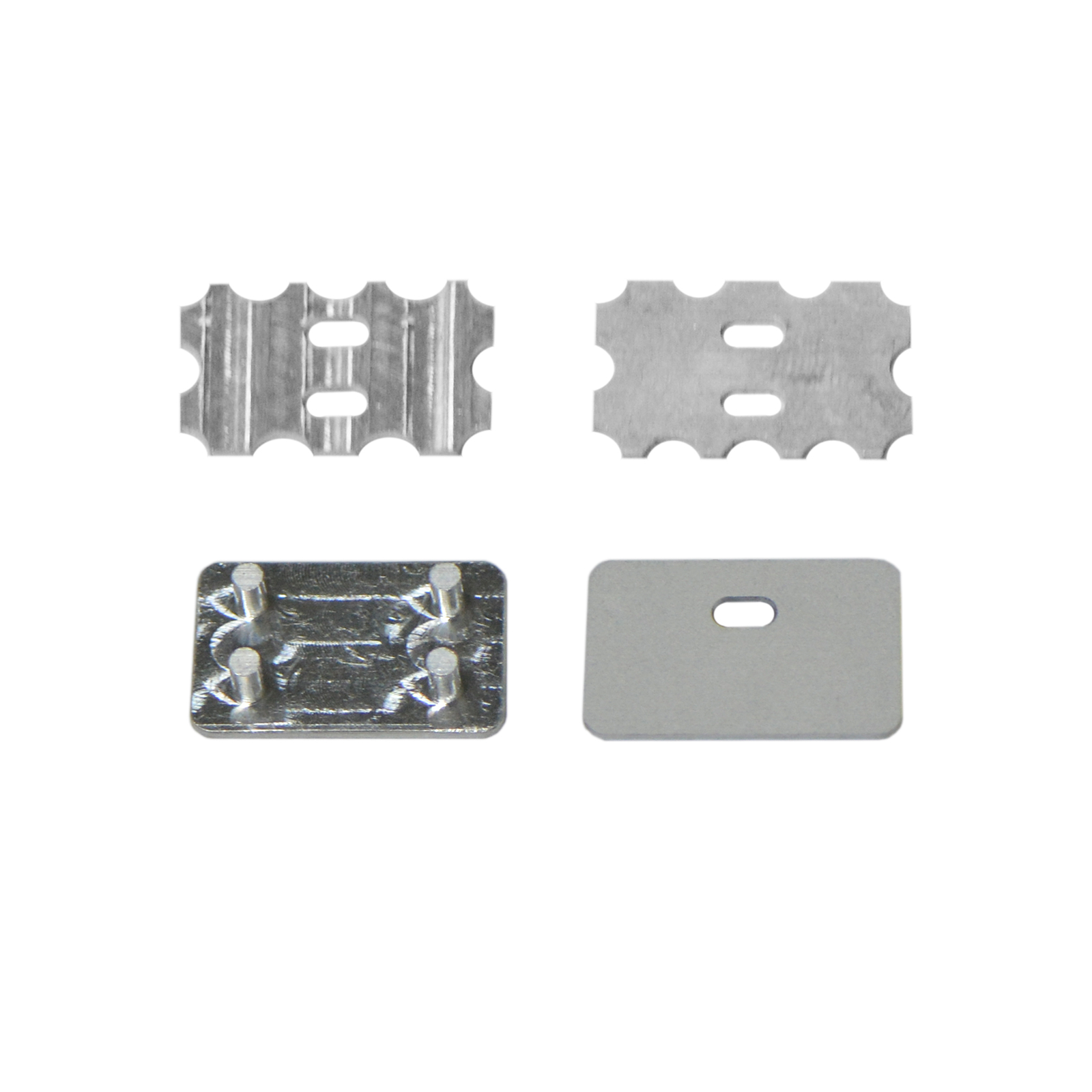

Nero Internal End Cap Pair Ano Alu
NERO-IEC-A
Nero Internal End Cap Pair Ano Alu
Aluminium
-

Nero Accessories

NERO-HC,NERO-SUS

Code
Product Name
Material
Finish
NERO-HC
Nero Honeycomb 500mm Black
Aluminium
-
NERO-SUS
Nero Suspension Cable
Stainless Steel
-

Downloads

Technical
DATASHEET
CAD
2D
Nero

LED Flex Options

LED Flex
COF High Output 10m
Wattage/M
| 11
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 2
Cutting Intervals (mm)
| 41.67
COF Plus
Wattage/M
| 14.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 2.08
Cutting Intervals (mm)
| 50
COF RGB
Wattage/M
| 15
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 1.19
Cutting Intervals (mm)
| 25
COF RGBW
Wattage/M
| 18
Colour Temp
| RGB - 3000
Width (mm)
| 12
Pitch (mm)
| 1.49
Cutting Intervals (mm)
| 83.3
DMX RGB
Wattage/M
| 16.8
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 11.93
Cutting Intervals (mm)
| 83.5
Effi High Output
Wattage/M
| 9.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Plus
Wattage/M
| 14.4
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Effi Plus High Output
Wattage/M
| 19.2
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 4.76
Cutting Intervals (mm)
| 33.3
Effi Standard
Wattage/M
| 7.2
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 14.29
Cutting Intervals (mm)
| 100
Ex 10m High Output
Wattage/M
| 12
Colour Temp
| 2700,3000,4000
Width (mm)
| 8
Pitch (mm)
| 7.14
Cutting Intervals (mm)
| 50
Ex 40m Low Output
Wattage/M
| 2.6
Colour Temp
| 2700,3000,4000
Width (mm)
| 10
Pitch (mm)
| 16.6
Cutting Intervals (mm)
| 100
RGB
Wattage/M
| 17.1
Colour Temp
| RGB
Width (mm)
| 10
Pitch (mm)
| 11.9
Cutting Intervals (mm)
| 71.4
RGBW
Wattage/M
| 26.9
Colour Temp
| RGB - 3000
Width (mm)
| 12
Pitch (mm)
| 11.9
Cutting Intervals (mm)
| 71.4
Tuneable White COF
Wattage/M
| 13.6
Colour Temp
| 2500-6500
Width (mm)
| 10
Pitch (mm)
| 1.66
Cutting Intervals (mm)
| 26.32
