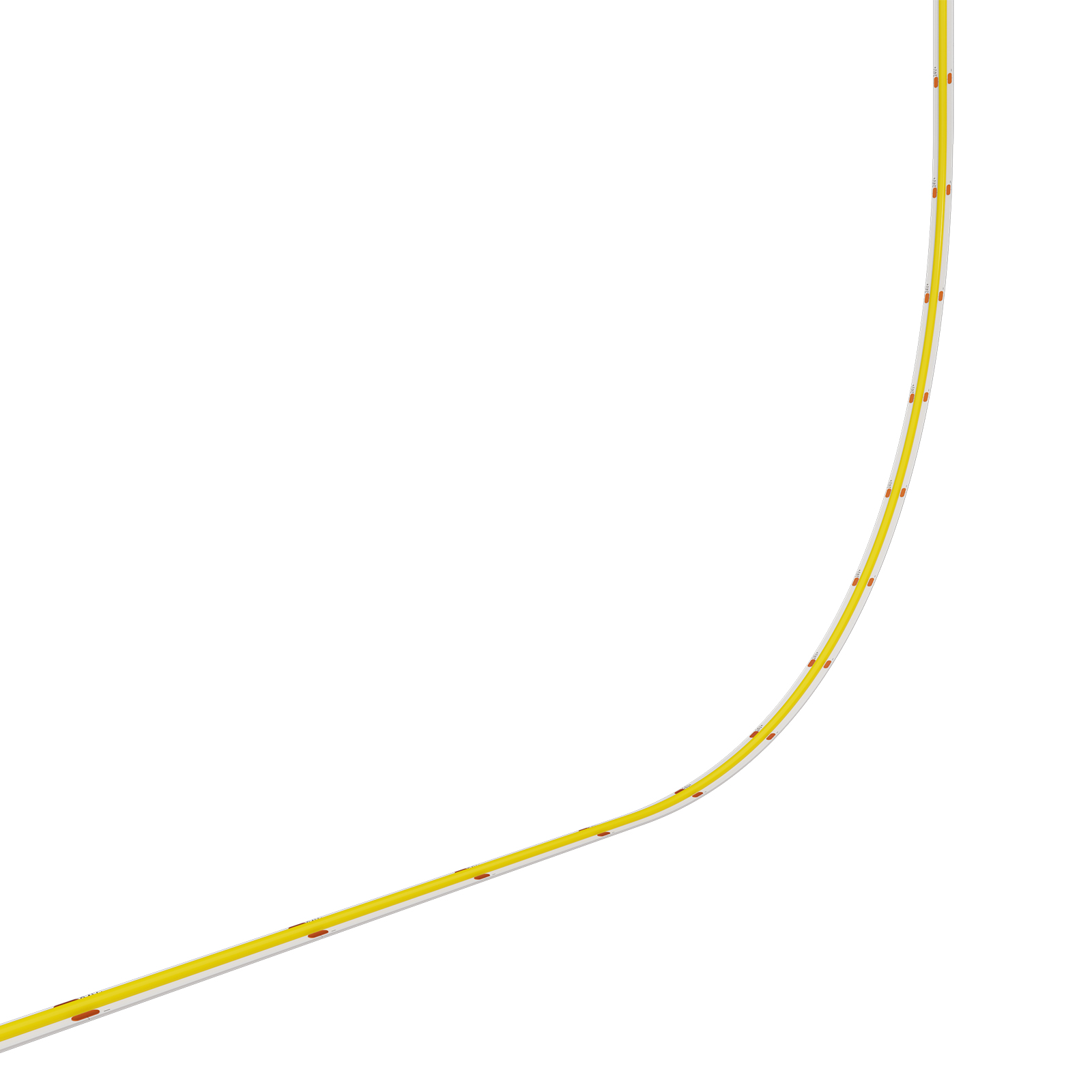

LED Flex

COF Plus IP65

Chip On Flex

Performance Specifications

Light Source
LED
Voltage
24
Wattage/M
14.6
CRI
90
MacAdams Step
3
Beam Angle
140
LED Lifetime
N/A
IP Rating
65
IK Rating
N/A
Dimming
Non-Dimmable,Mains-Dimmable,DALI

Physical Specifications

LEDs/M
480
Width (mm)
10
Height (mm)
4
Length (mm)
5000
Pitch (mm)
N/A
Cutting Intervals (mm)
50
Max Single Run (mm)
5000
Max Flex Width (mm)
N/A
Material
N/A
Package Dimension
220 x 250 x 0.14
Diffuser Transparency
N/A

Technical Specifications

Code
Product Name
Colour Temp
Lumens / M
Efficacy
COF-24V-14.6W-27K-IP65
COF Plus 24V 14.6W 2700K IP65
2700
1300
89
COF-24V-14.6W-30K-IP65
COF Plus 24V 14.6W 3000K IP65
3000
1400
96
COF-24V-14.6W-40K-IP65
COF Plus 24V 14.6W 4000K IP65
4000
1540
105

Downloads

Technical
DATASHEET
Photometrics
LDT / IES

Linear Profile Options

Linear Profile
Angle 19
Width (mm)
| 18.4
Height (mm)
| 18.4
Finish
| Anodised Aluminium | Black | White
Capella
Width (mm)
| 17.1
Height (mm)
| 8.5
Finish
| Anodised Aluminium | Black | White
Luna
Width (mm)
| 17.1
Height (mm)
| 15.3
Finish
| Anodised Aluminium | Black | White
Nero
Width (mm)
| 28
Height (mm)
| 39.3
Finish
| Black | White
Nova
Width (mm)
| 17.1
Height (mm)
| 8
Finish
| Anodised Aluminium | Black | White
Sky
Width (mm)
| 17.1
Height (mm)
| 15.3
Finish
| Anodised Aluminium | Black | White
Terra
Width (mm)
| 21.3
Height (mm)
| 26.1
Finish
| Anodised Aluminium
